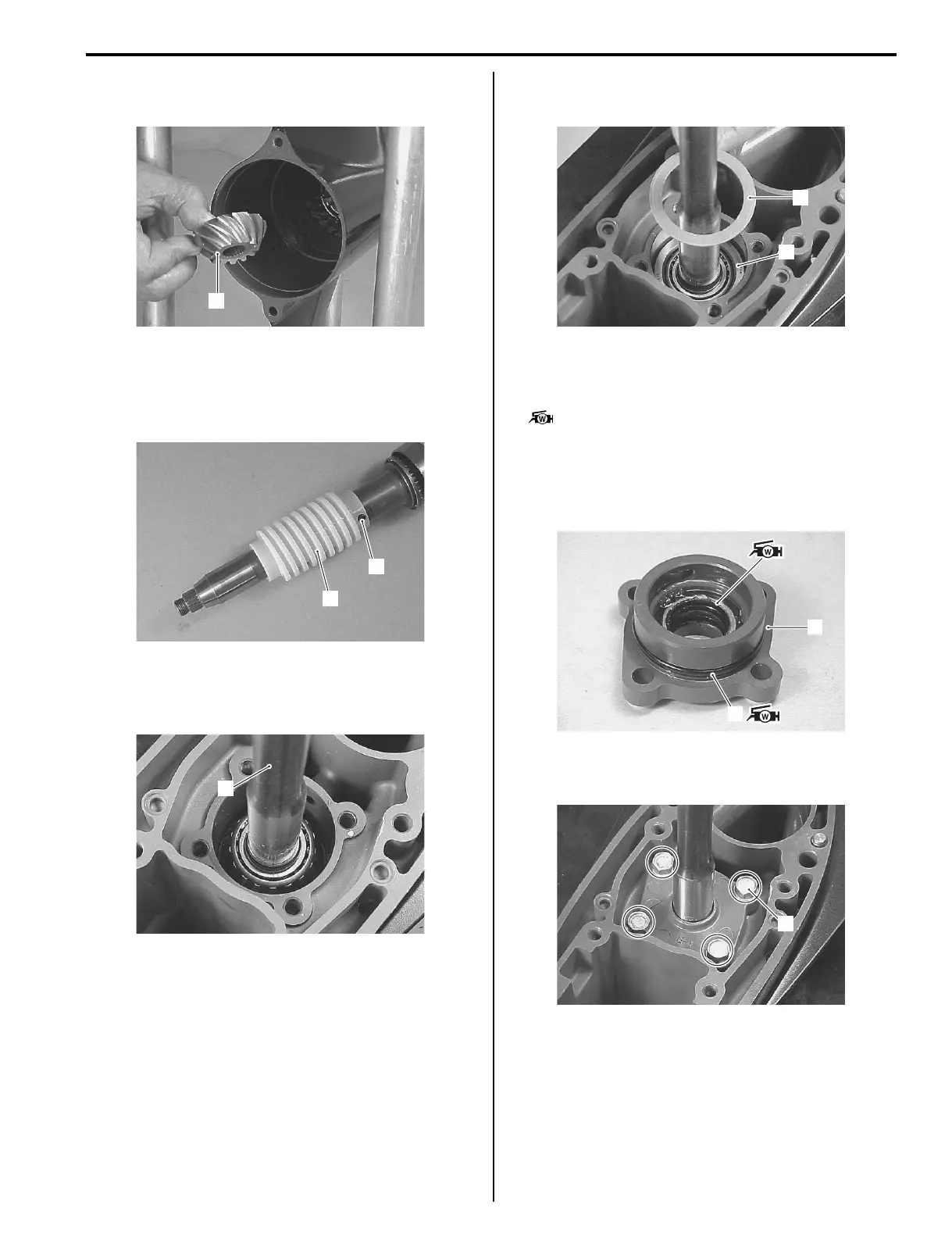

Right Hand Rotation Unit: 3A-17
Pinion Gear
Place pinion gear (1) in gearcase.
Driveshaft
• Assemble the driveshaft collar (1) to driveshaft.
• Install the pin (2).
• Lower the driveshaft assembly (3) down into the
gearcase until the bottom of shaft protrudes through
center of pinion.
• Install the bearing outer race (4) and pinion shim (5) to
driveshaft.
Driveshaft Oil Seal Housing
• Apply water resistant grease to the driveshaft oil seal.
: Grease 99000–25161 (SUZUKI Water
Resistant Grease (250 g))
• Apply water resistant grease to O-ring (1), then install
O-ring into groove on the driveshaft oil seal housing
(2).
• Install the driveshaft oil seal housing on the gearcase,
then tighten four bolts (3) securely.
1
I9J011310077-01
1
2
I9J011310078-01
3
I9J011310079-01
5
4
I9J011310080-01
1
2
I9J011310081-01
3
I9J011310082-01
