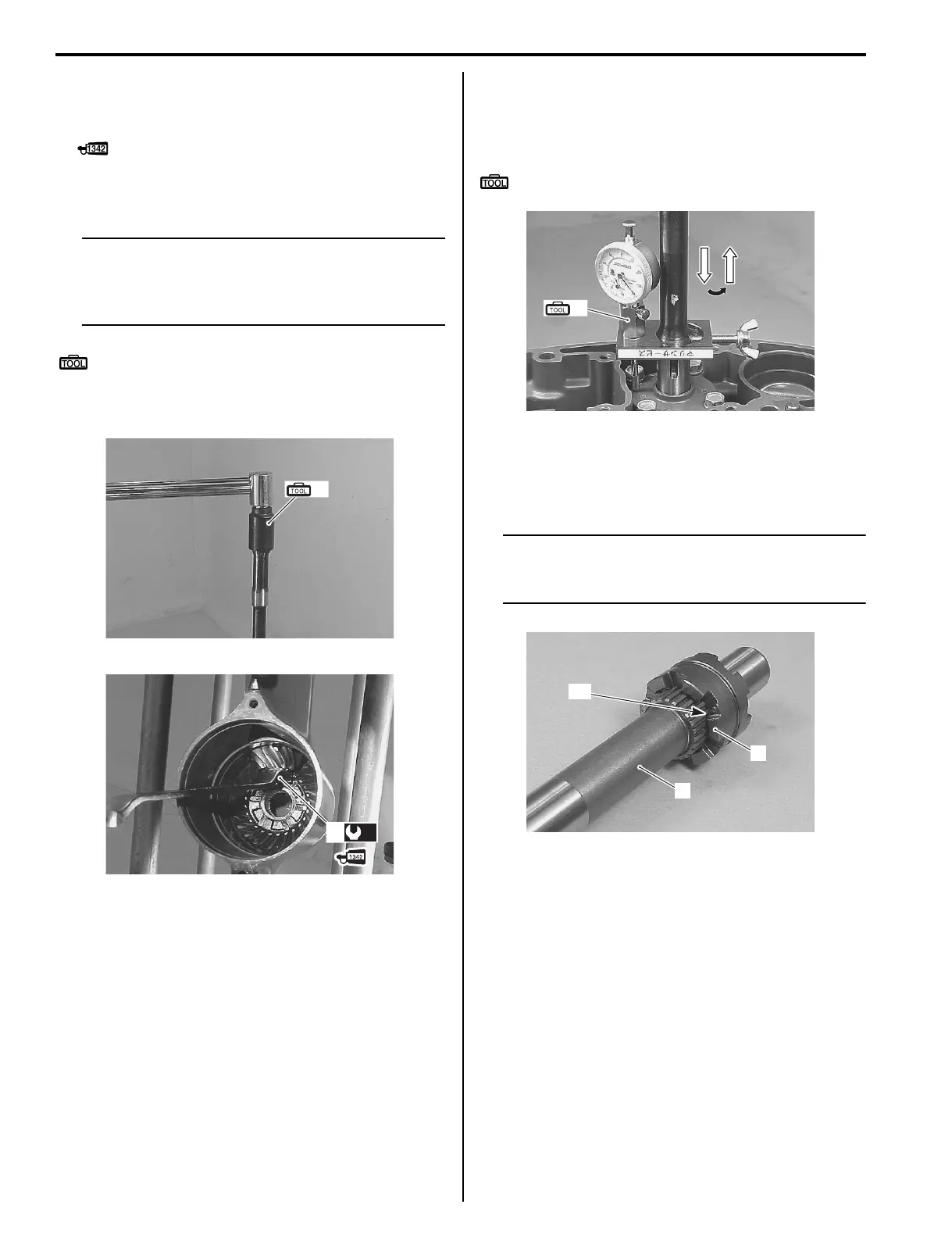

3A-18 Right Hand Rotation Unit:
Pinion Nut
• Apply thread lock 1342 to the threads of pinion nut (1)
before threading it onto driveshaft.
: Thread lock cement 99000–32050 (SUZUKI
Thread Lock 1342 (50 g))
• Tighten pinion nut to specified torque.
NOTE
It is recommended the original pinion nut be
used for the purposes of shimming during
repair. A new pinion nut should be used on
final assembly.
Special tool
(A): 09921–28710 (Driveshaft holder)
Tightening torque
Pinion nut (a): 120 N·m (12.0 kgf-m, 86.8 lbf-ft)
Checking Driveshaft Thrust Play
Before installing reverse gear, driveshaft thrust play
should checked. Refer to “Lower Unit Gears - Shimming
and Adjustment” (Page 3A-24).
Special tool
(A): 09951–09530 (Gear adjusting gauge)
Propeller Shaft
• Slide the clutch dog shifter (2) onto the propeller shaft
(1).
NOTE
The side of the clutch dog shifter marked
with the letter “R” must face towards reverse
gear.
(A)
I9J011310083-02
(a)
1
I9J011310084-02
(A)
I9J011310085-01
1
2
“R”
I9J011310086-01
