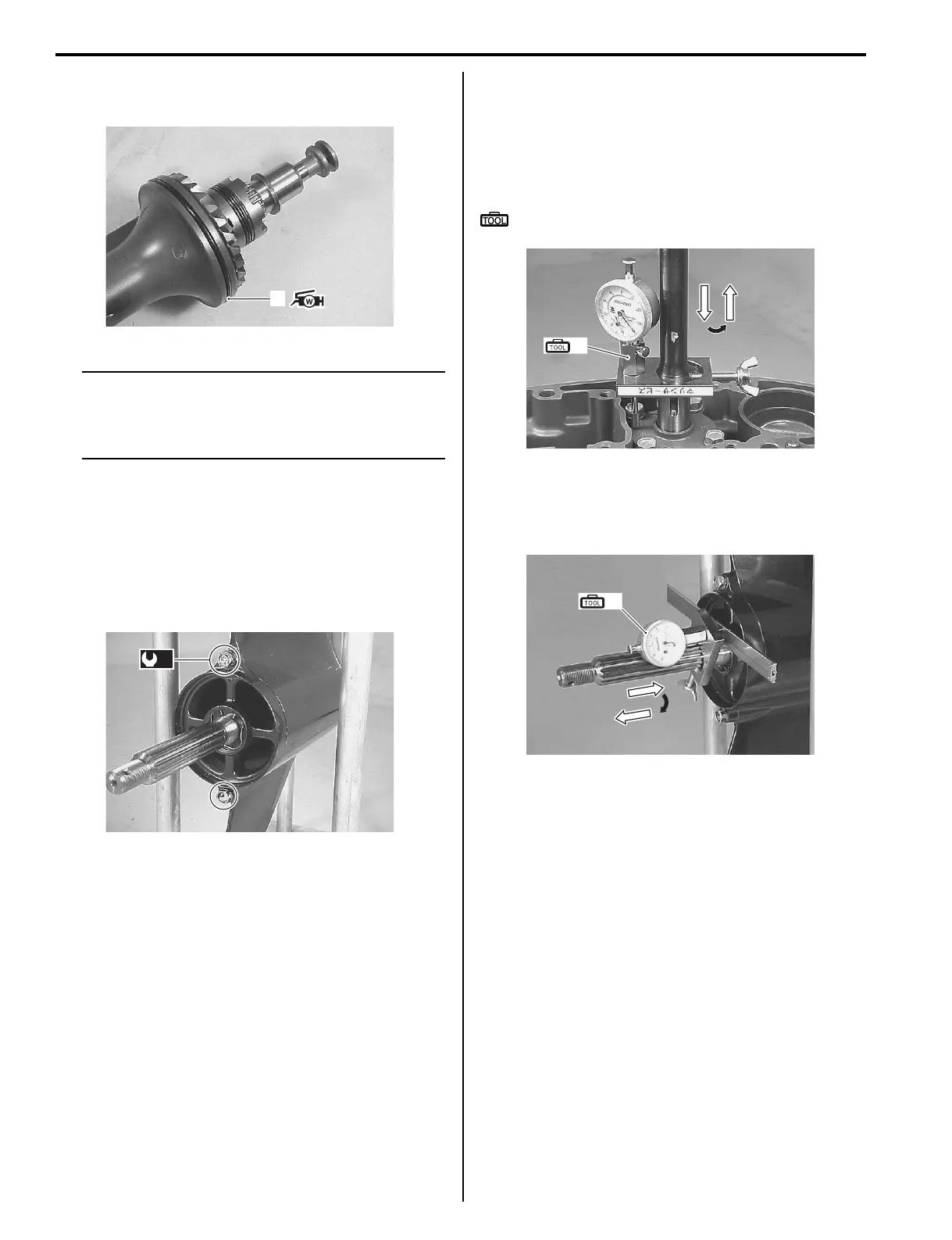

3A-20 Right Hand Rotation Unit:
• Apply water resistant grease to the bearing housing
O-ring (6).
NOTE
Before installing the propeller shaft / bearing
housing assembly, move the shifter dog to
bring the connector pin to the “Neutral”
position.
• Install the propeller shaft and housing assembly in the
gearcase.
• When the housing is fully seated, tighten both
retaining bolts to the specified torque.
Tightening torque
Bearing housing bolt (a): 23 N·m (2.3 kgf-m, 16.6
lbf-ft)
Rechecking Driveshaft Thrust Play
Recheck the driveshaft thrust play. This should not be
less than previously checked. If less, reduce the number
/ thickness of the reverse gear back-up shims. Refer to
“Lower Unit Gears - Shimming and Adjustment”
(Page 3A-24).
Special tool
(A): 09951–09530 (Gear adjusting gauge)
Checking Propeller Shaft Thrust Play
Check propeller shaft thrust play. Refer to “Lower Unit
Gears - Shimming and Adjustment” (Page 3A-24).
6
I9J011310092-01
(a)
I9J011310093-01
(A)
I9J011310085-01
(A)
I9J011310094-02
