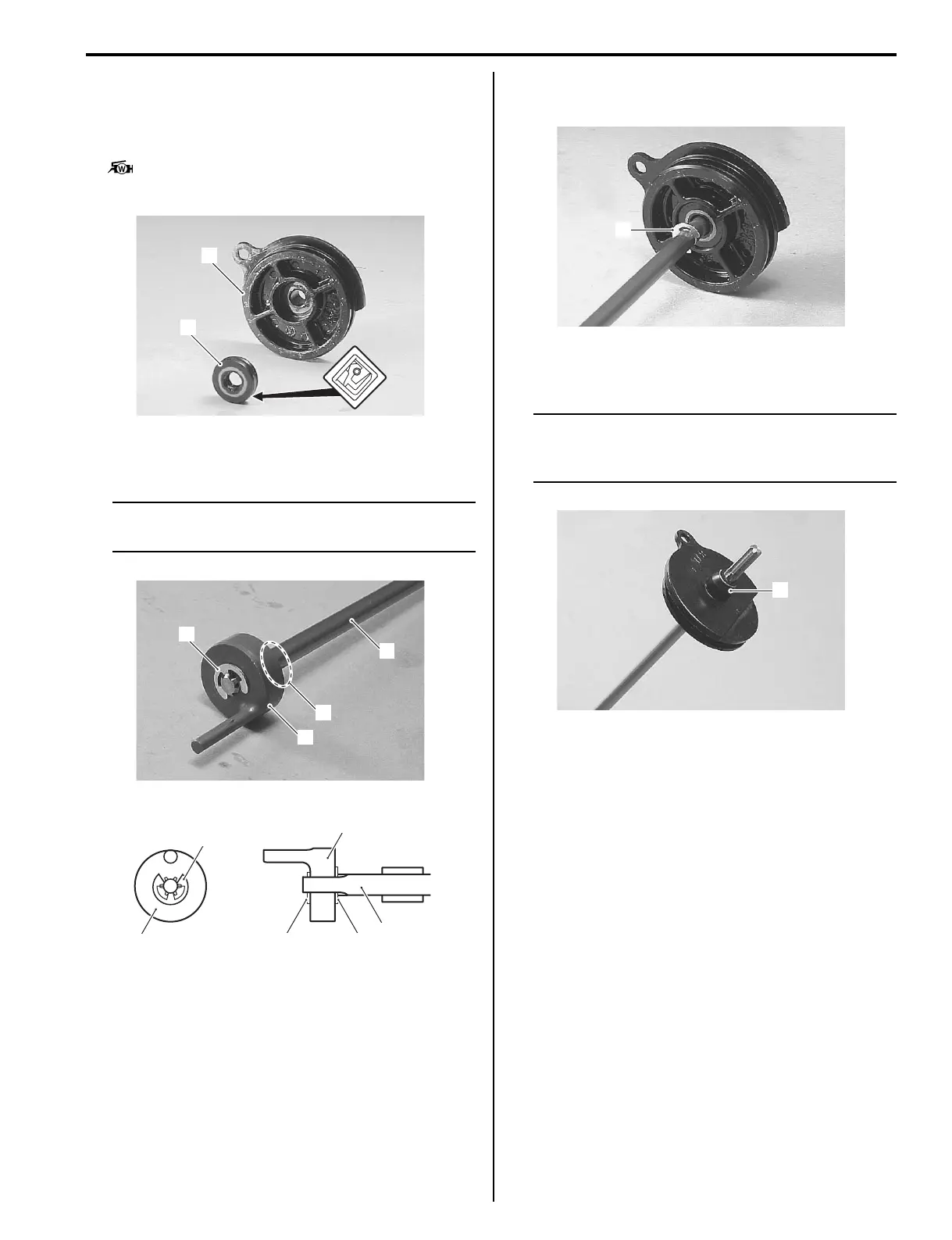

Right Hand Rotation Unit: 3A-21
Shift Rod Guide Housing
• Using an oil seal installer, drive the oil seal (1) into the
shift rod guide housing (2). The lipped portion of oil
seal must face towards the driveshaft housing.
: Grease 99000–25161 (SUZUKI Water
Resistant Grease (250 g))
• Install the E-ring (3), shifter yoke (4) and E-ring (5) to
shift rod (6).
NOTE
E-ring should be installed with gap facing as
shown in the figure.
• Install the E-ring (7) to the shift rod, then slide the shift
rod guide housing onto the shift rod.
• Install the oil seal cover (8) to the shift rod guide
housing.
NOTE
Be sure the connector pin is in the “Neutral”
position before installing the shift unit (shift
rod guide housing assembly).
1
2
I9J011310095-01
3
5
6
4
I9J011310096-01
5
4
4
35
6
I9J011310007-03
7
I9J011310097-01
8
I9J011310099-01
