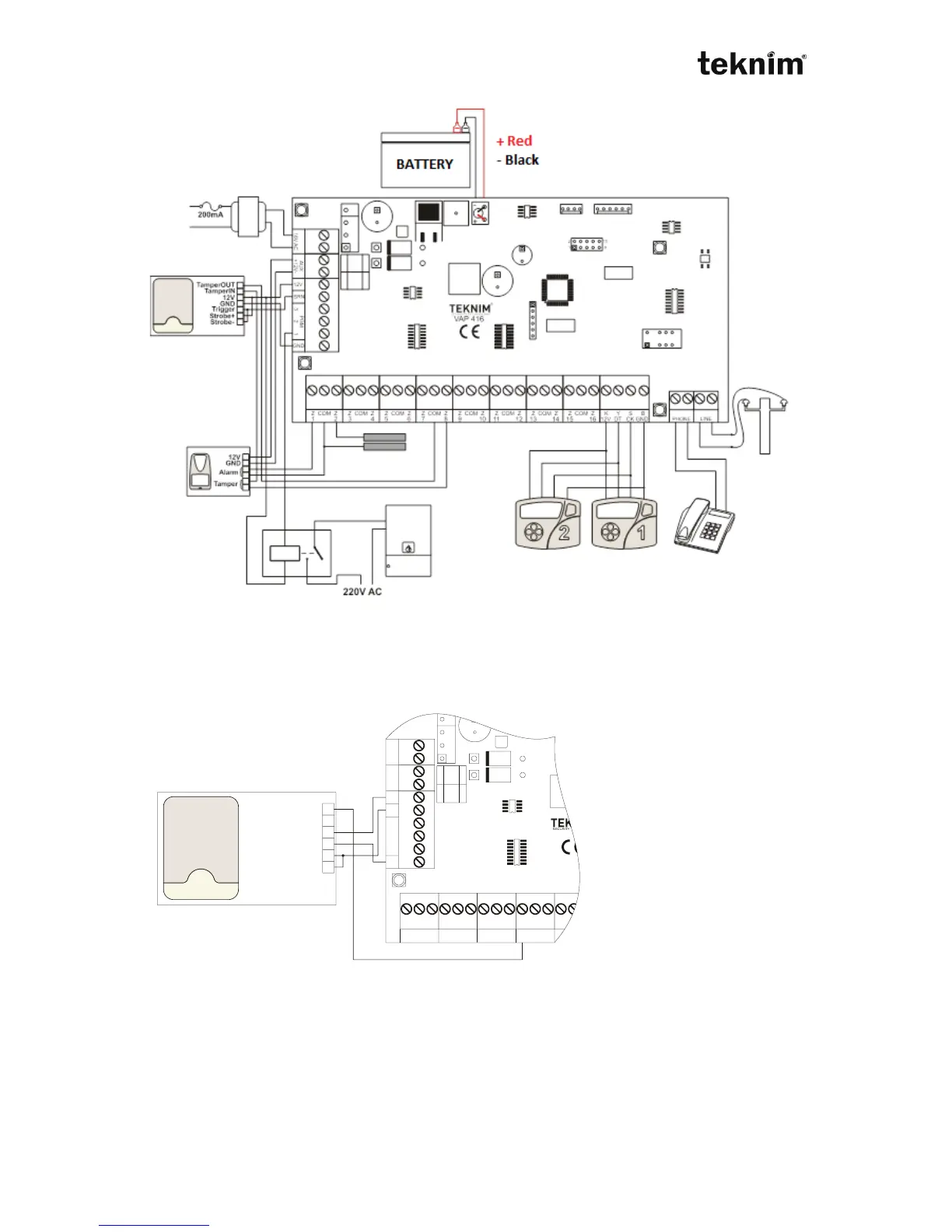

3.2. SIREN CONNECTION
Siren connection is made by 12V,SRN,GND terminals. 12V and GND is supply
voltage of Siren. Trigger output of Siren is SRN. Siren output can be programmed as
NO ,NC.
!!! WARNING !!!
When 2 sirens are
connected to panel, one
of sirens should be on
SCB mode to increase
current consumption.
3.3. DETECTOR CONNECTION
Detector alarm outputs are NC or NO. One of 2 wire output is connected to
Z1,Z2,...,Z16 input the other is connected COM. Supply voltage of detectors is
provided by AUX output. Z1, Z2,...,Z16 can be programmed as NO,NC, single end of
line resistor or double end of line resistor. Following picture shows example of PIR
detector and magnetic contact connection by using none end of line resistor
connection
