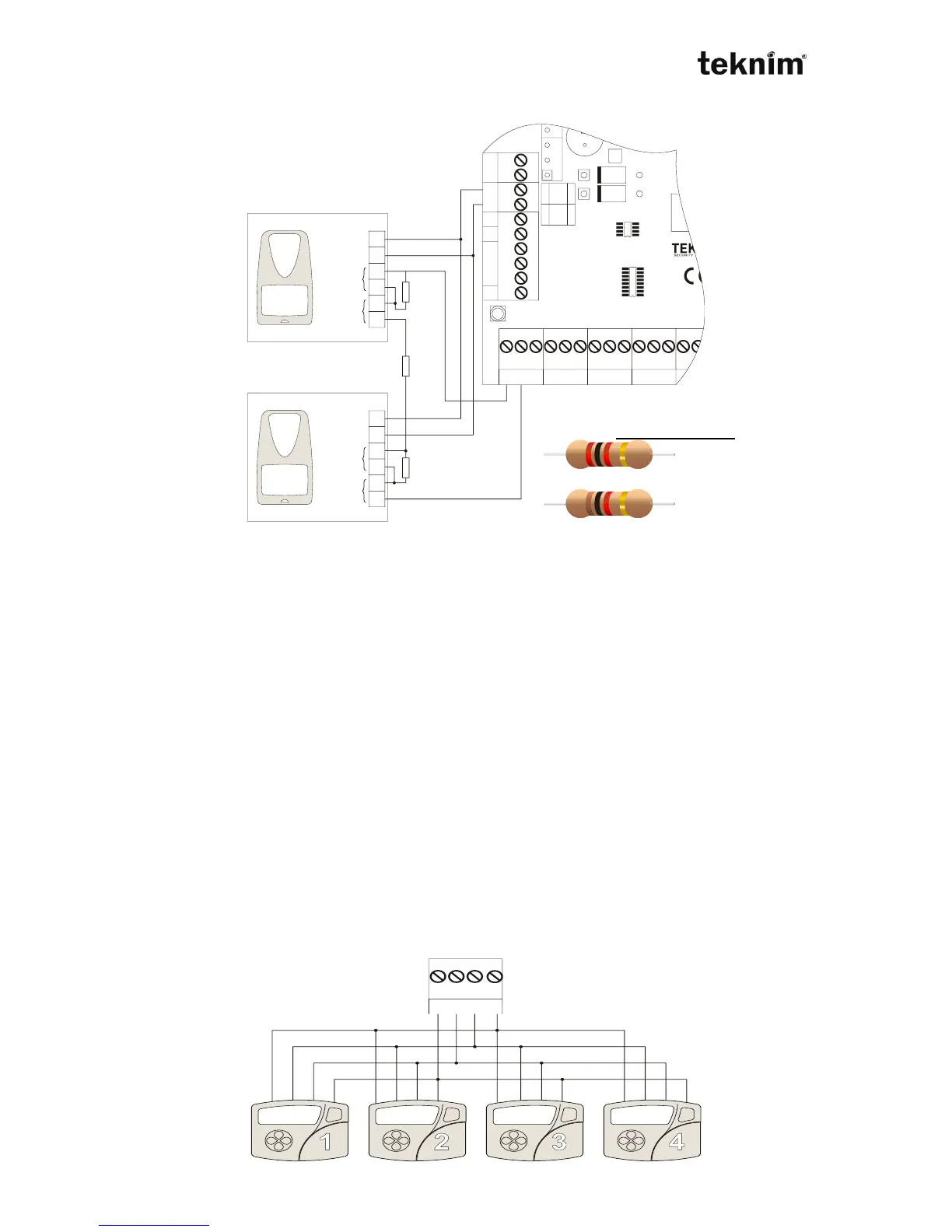

Doubled Zone Connection With Tamper
!!! WARNING !!!
If the tamper connections for single line end resistor, double line end resistor or zone
doubled are done as below, when the panel is armed, if the tamper is open, alarm is
on. If the panel is not armed, the zone error is seen.
3.5. KEYPAD CONNECTION
The keypad can be connected to the panel with 12V DT, CK, GND. If the connection
is wrong, keypad indicates the fault. The blendaj of the cable must be connected
GND of the panel and keypad. 4 keypad connections can be done for VAP416. The
address of the keypads must be adjusted firstly. (See the part of learning keypad
address and adjustment) Also the keypads which are connected must be active. (See
the part of the adjustments of the keypads)
!!! WARNING !!!
1. While connecting and changing the keypad, 12V to keypad must be off and DT
and CK must not be short circuit to 12V.
2. The cable must be 100m and shorter
