3.4.1 Zone Doubling
The zone number can be increased by using this connection. If 1kΩ and 2kΩ
resistors are connected to Z1,Z2,....,Z16 zone and the zones are programmed
correctly, each zone can be used like 2 zones. So, the zones (Z1,Z2,...Z16 and
Z17,Z18,...Z32) will be doubled. You can reach to 32 zones by using 16 zones. You
can program all zones as NC or NO. There are the samples of the connections with
tamper and without tamper below. Please see the "Zone Wiring (Page 55)" part for
program features.
!!! WARNING !!!
Zone doubled can not used with the expanded zone module.

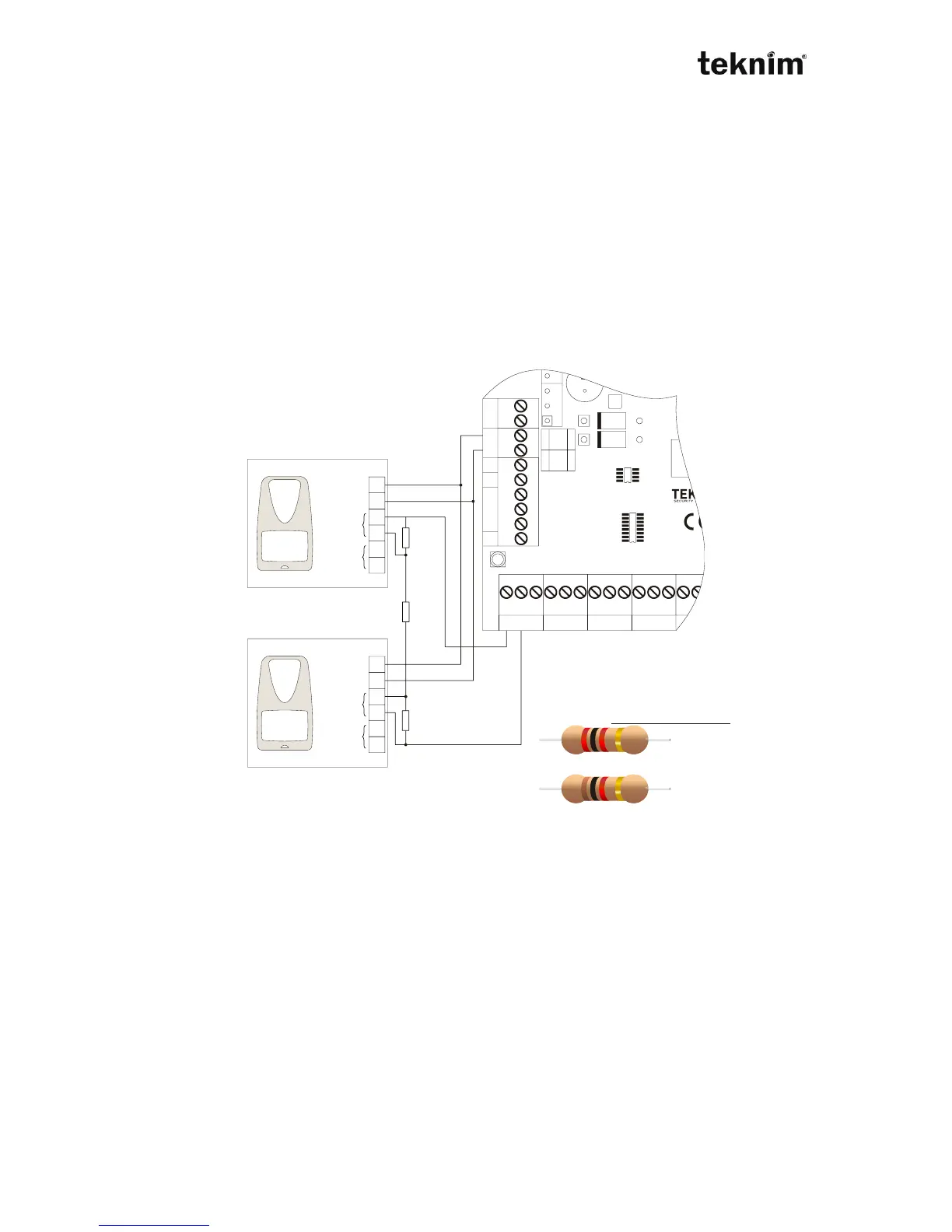

Doubled Zone Connection
