CUTTING UNIT
4262930-Rev A 8-29
8
Disassembly and Assembly

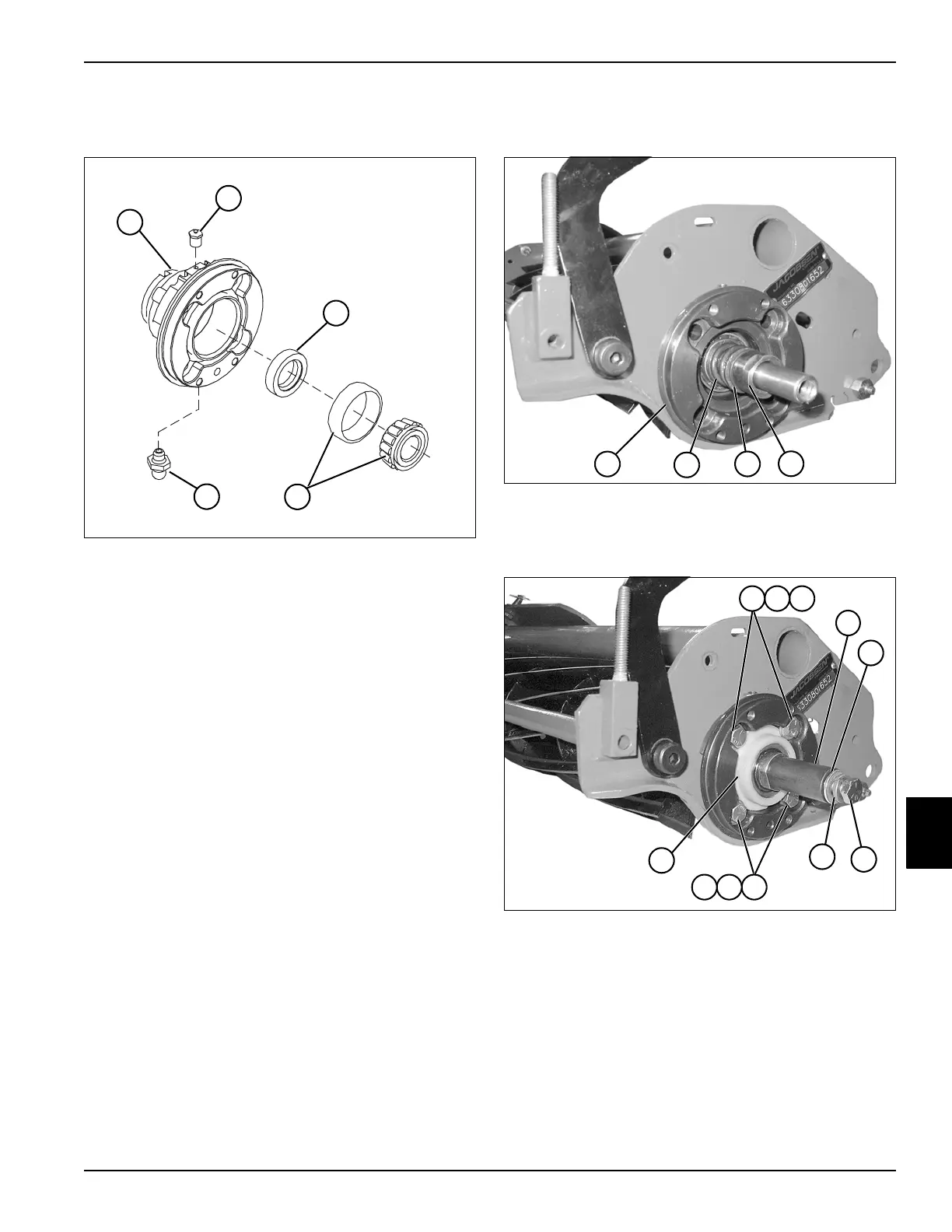

See Figure 8-42.
Figure 8-42
Assembly Notes
• Clean and inspect the bearing cup and cone (4) for
wear and damage. Replace as needed.
• Pack bearing (4) with grease that meets or exceeds
NLGI Grade 2 LB specifications before assembly.
• Install a new grease seal (3).
• Apply grease that meets or exceeds NLGI Grade 2
LB specifications to the lips of the grease seal (3).
Installation
See Figures 8-43 through 8-45.
Figure 8-43
1. Install reel bearing housing assembly (1).
2. Install spring (2), washer (3), and nut (4).
Figure 8-44
3. Install seal (12) using screws (5), washers (6), and
nuts (7).
4. Adjust the reel bearing pre-load. (See “Reel Bearing
Pre-Load Adjustment” on page 8-18.)
5. Install spacer (8), washer (9), lock washer (11), and
screw (10).
1 Bearing Housing 4 Bearing Cup and Cone
2 Vent Fitting 5 Grease Fitting
3 Grease Seal
TN0941
2
3
4
1
5
TN0903
2
4
3
1
TN0904
11
10
765
9
8
765
12
To Next Page
