Textron JACOBSEN Eclipse 2 - Page 209

ACCESSORIES
4262930-Rev A 10-23
10
Turf Groomer—Drive and Driven
Assemblies
Disassembly and Assembly
See Figure 10-30.

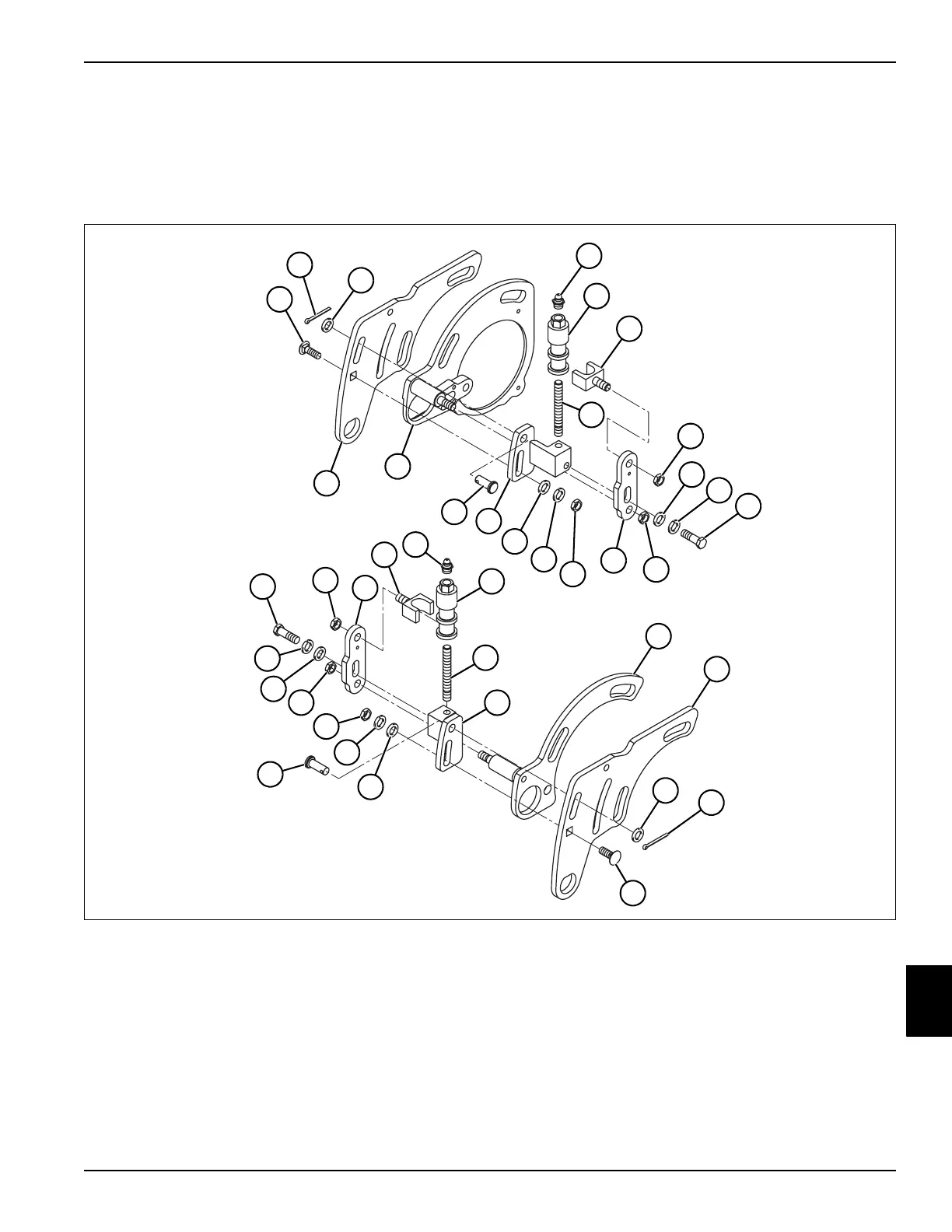

Figure 10-30
1 Carriage Bolt (2) 5 Knob Adjustment (2) 9 Flat Washer (4) 13 Flat Washer (4) 17 Groomer Bracket (2)
2 Cotter Pin (2) 6 Adjuster Bracket (2) 10 Lock Washer (4) 14 Lift Bracket 18 Lift Bracket
3 Flat Washer (4) 7 Stud (2) 11 Screw (2) 15 Pin (2) 19 Left Hand Driven Bracket
4 Grease Fitting (2) 8 Nut (3) 12 Push Groomer Plate (2) 16 Left Hand Drive Bracket
