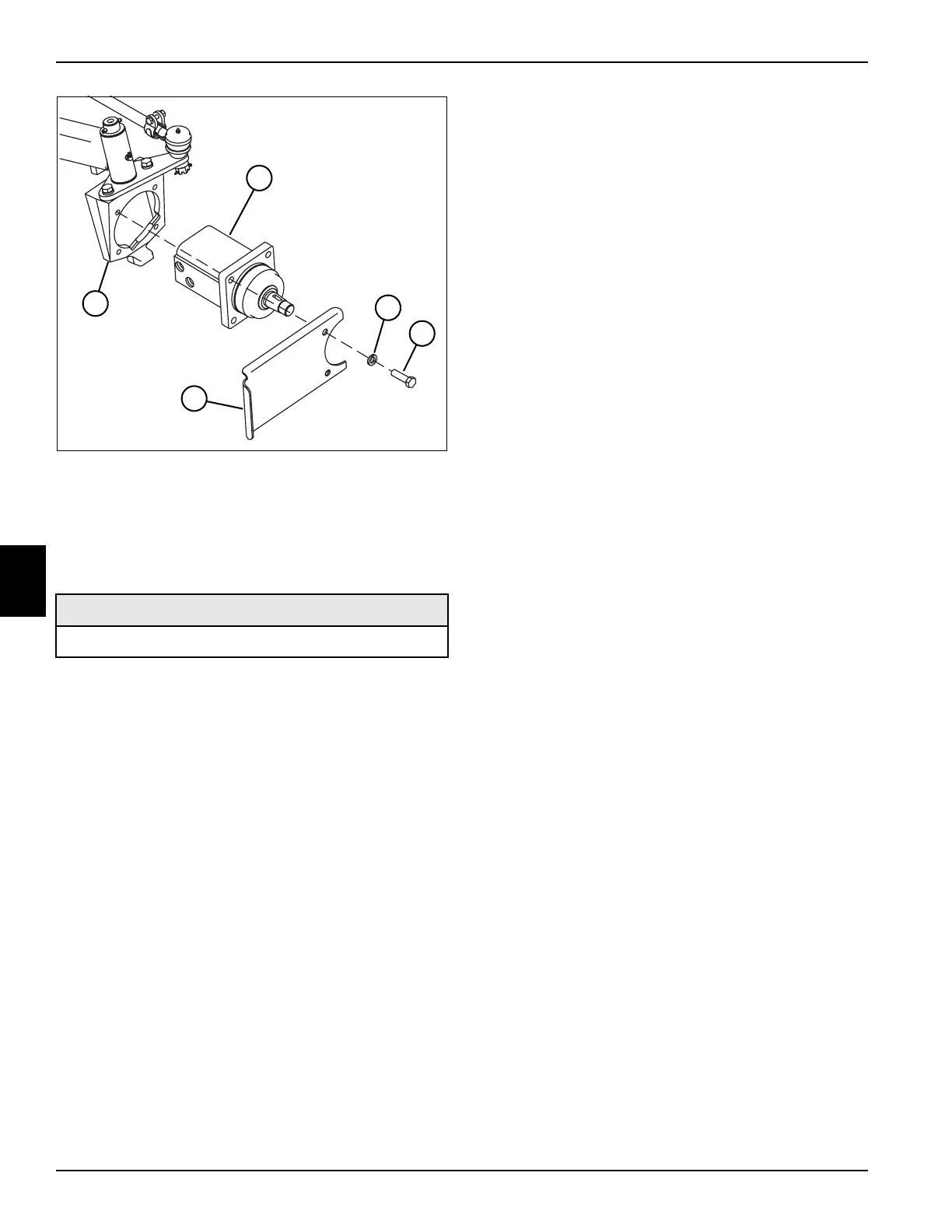

Figure 5-91
12. Remove four screws (17) and lock washers (16).
13. Remove guard (18) and wheel motor (15) from motor
mount (19).
Installation Notes
• Install the rear wheel motor by reversing the order of
removal.
• Apply anti-seize compound to the motor shaft
threads (14). Be careful not to apply anti-seize
compound to the motor shaft.
• Tighten castle nut (11) to 175—200 lb-ft
(237—271 N·m).
• Install a new cotter pin (10) in castle nut (11) and
motor shaft (14).
• Check hydraulic oil level. Add oil as needed. (Refer to
“Safety, Operation, and Maintenance Manual” for the
correct oil specifications.)
Required Materials
Anti-Seize Compound
TN1964
15
19
16
18
17
