Disassembly, Inspection, and Assembly

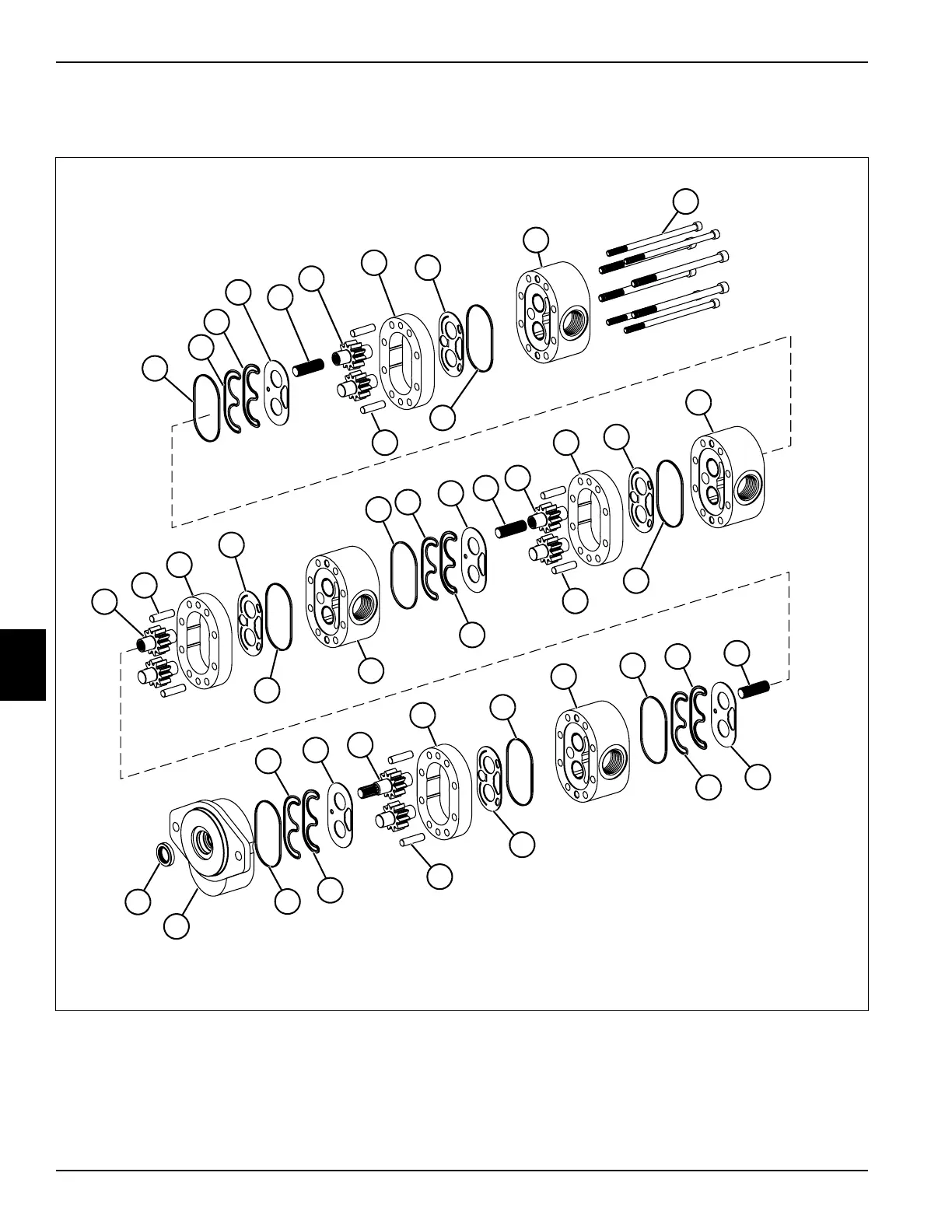

See Figures 6-64 and 6-65.
Figure 6-64
1 Seal Ring (8) 5 Coupling (3) 9 Screw (8) 13 Front Cover/Flange
2 Pre-Load Seal (4) 6 Gear Set (3) 10 Dowel Pin (8) 14 Shaft Seal
3 Load Seal (4) 7 Gear Plate (4) 11 Body (3)
4 Wear Plate (8) 8 Rear Cover Assembly 12 Gear Set (Drive Shaft)
