Textron Jacobsen HR-5111 User Manual

STEERING
4203780 First Edition 7-19
7
5. Loosen jam nuts (9).
6. Tilt the steering console (8) forward.
7. Remove (unscrew) the tilt lever (7) from console (8).

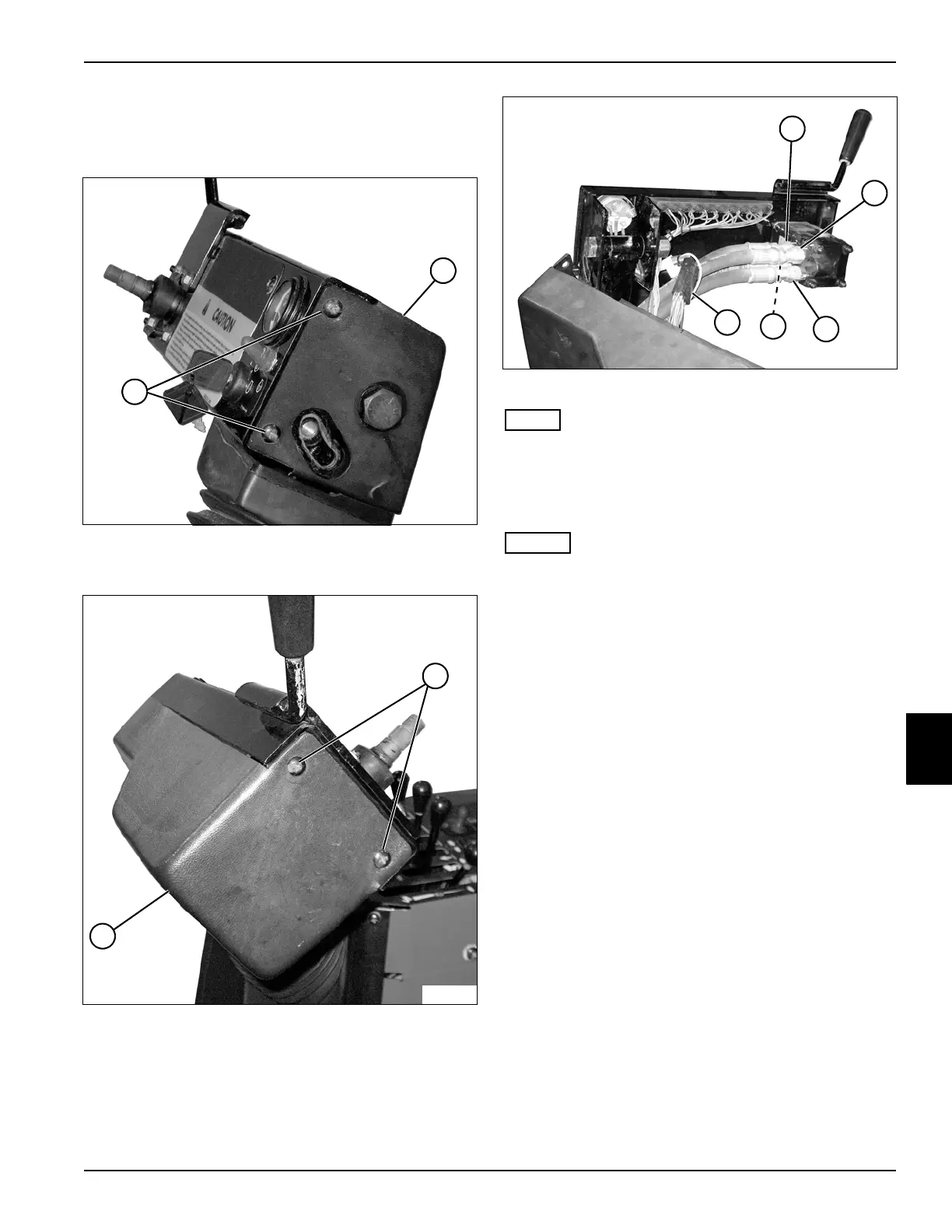

Figure 7-29
8. Remove two screws (10) from console cover (11).
Figure 7-30
9. Remove two screws (12) from console cover (13),
and move the console cover aside.
Figure 7-31
NOTE
Label all wiring connectors and record their locations to
ensure correct installation.
10. Disconnect console harness connector (18) from
wiring harness.
NOTES
• Label all hydraulic hoses and record their locations to
ensure correct installation.
• Plug hydraulic hoses after disconnecting to prevent
loss of hydraulic oil.
11. Disconnect hydraulic hose (14) from steering valve
port “LT.”
12. Disconnect hydraulic hose (15) from steering valve
port “RT.”
13. Disconnect hydraulic hose (16) from steering valve
port “OUT.”
14. Disconnect hydraulic hose (17) from steering valve
port “IN.”
TN1742
10
11
TN1739
12
13
TN1888
15
14
16
17
18
