7-20 4203780 First Edition
STEERING
7

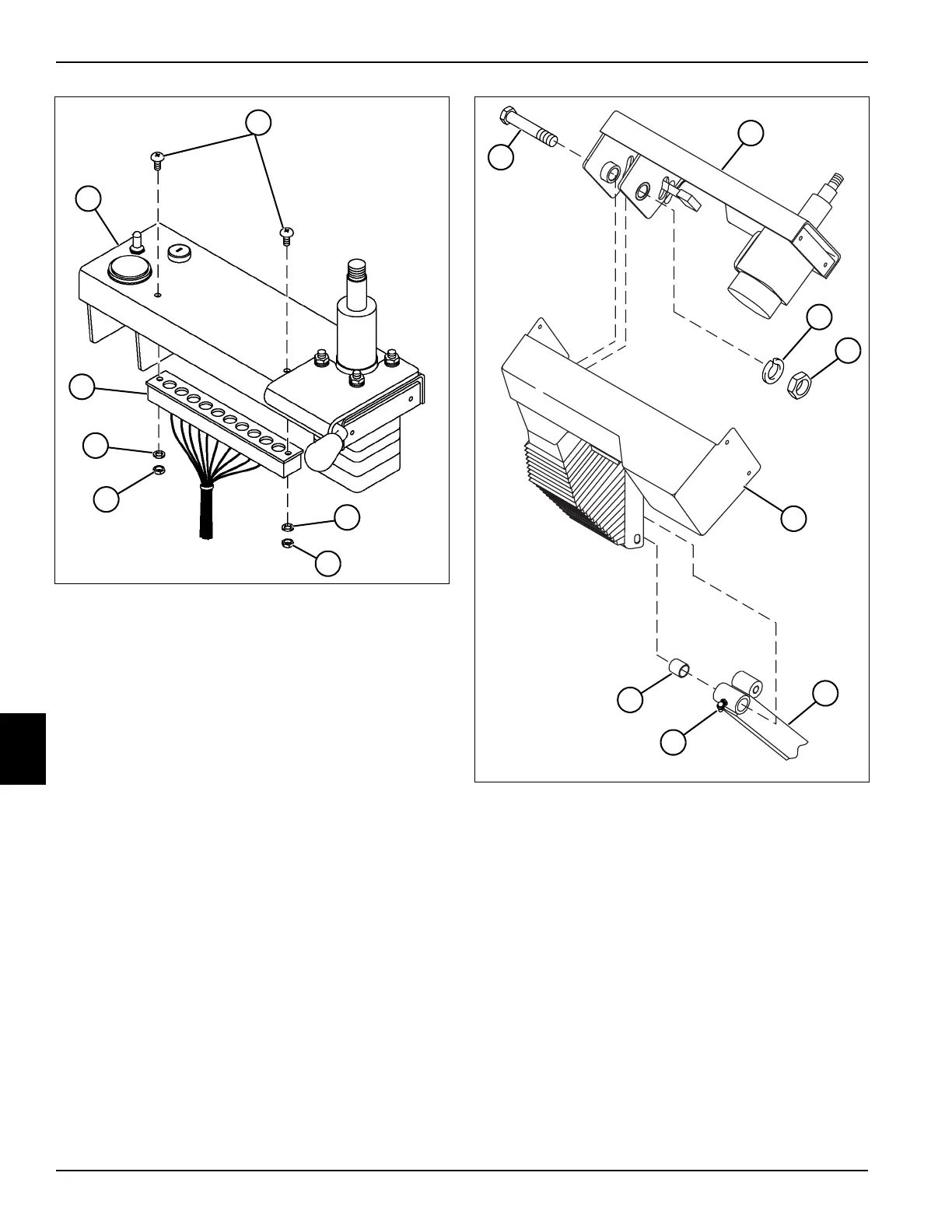

Figure 7-32
15. Remove two nuts (22), lock washers (21), and
screws (20). Remove indictor light module (23) from
console (19).
Figure 7-33
16. Support the console (25).
17. Remove nut (27), lock washer (26), and bolt (24).
Remove the console (25) from the support (29).
18. Remove the console cover assembly (28) from the
support (29).
19. Inspect the bushing (31). Replace as needed.
Installation Notes
• Install the steering console by reversing the order of
removal.
• Apply grease to grease fitting (30).
TN1890
20
19
21
22
21
22
23
TN1891
24
25
26
27
28
29
31
30
