7-28 4203780 First Edition
STEERING
7
Disassembly, Inspection, and Assembly

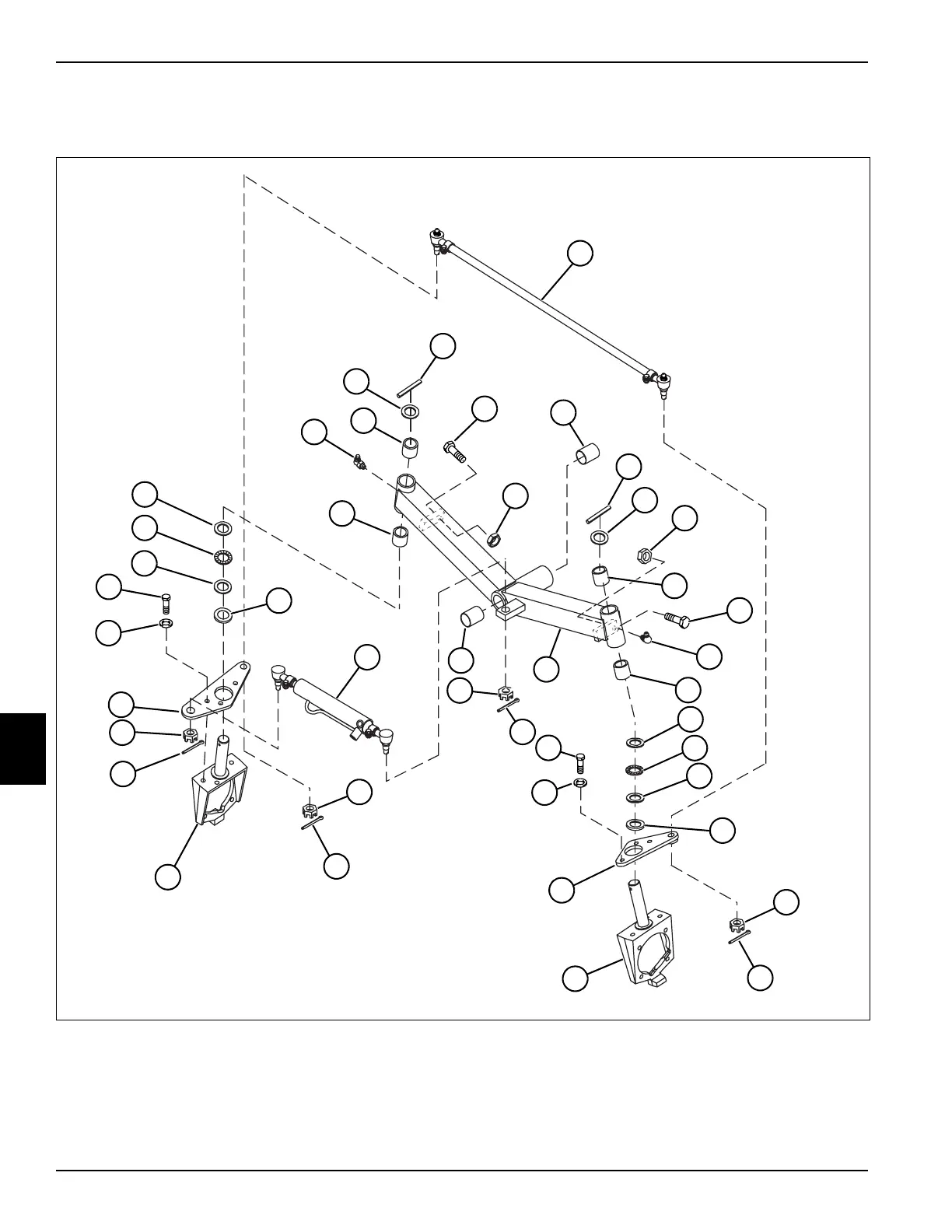

See Figure 7-43.
Figure 7-43
1 Tie Rod Assembly 6 Thrust Washer (6) 11 Castle Nut (2) 16 Hex Bolt (6)
2 Roll Pin (2) 7 Bushing, Mount Pivot (4) 12 Cotter Pin (4) 17 Axle
3 Socket-Head Screw (2) 8 Grease Fitting (2) 13 Motor Mount (2) 18 Castle Nut (2)
4 Hex Nut (2) 9 Thrust Bearing (2) 14 Steering Arm, Left 19 Steering Cylinder
5 Bushing, Axle Pivot (2) 10 Thrust Washer (2) 15 Lock Washer (6) 20 Steering Arm, Right
TN1777
2
11
19
6
7
8
5
5
1
3
12
7
4
2
6
4
3
9
6
10
18
12
16
15
11
12
13
14
17
6
7
8
7
6
9
6
10
16
15
20
18
12
13
