3-18 4203780 First Edition
ENGINE
3

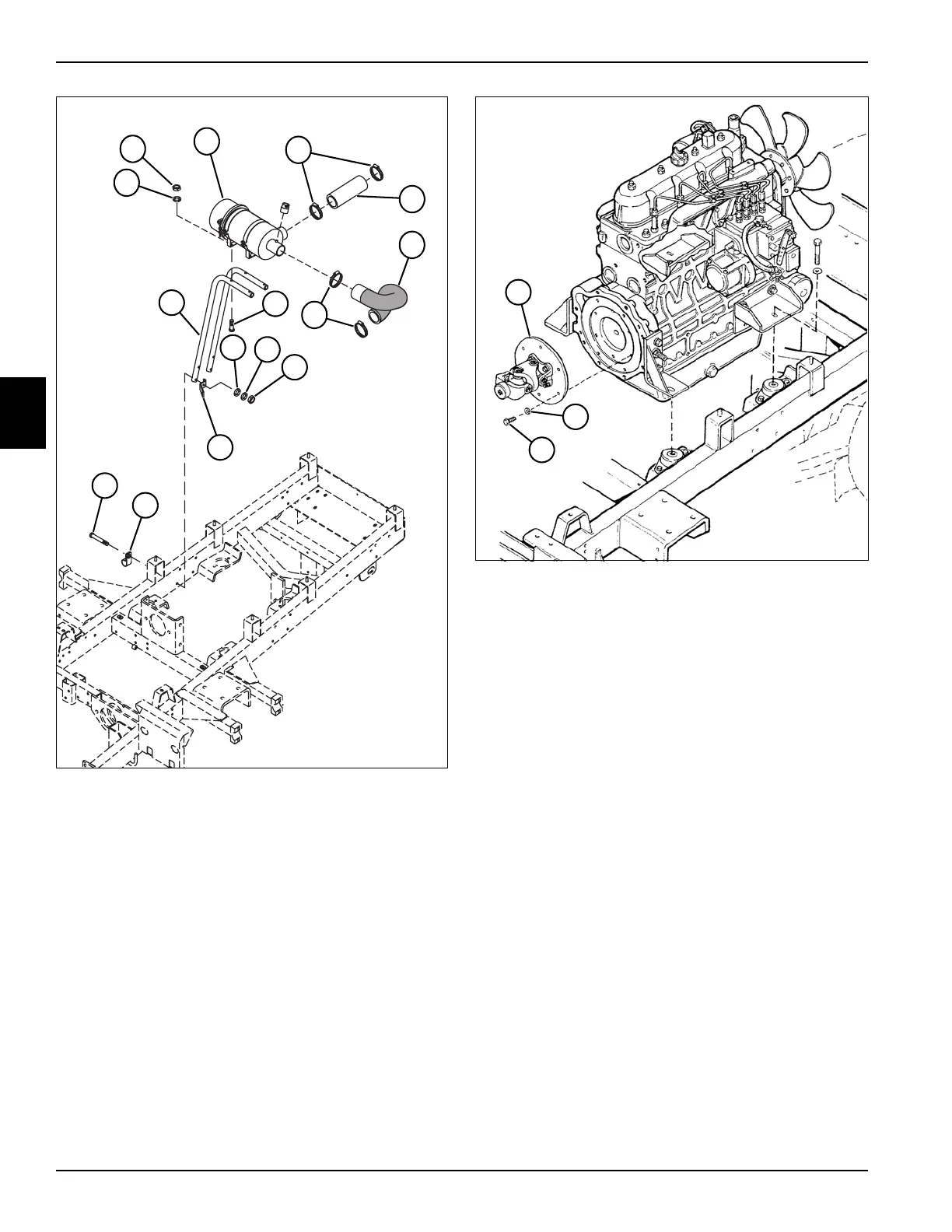

Figure 3-32
19. Loosen clamps (27) and remove air intake hose (28)
and hose (29). Cover intake manifold opening.
20. Remove two nuts (25), washers (24), and screws
(30) to remove air filter assembly from air cleaner
support (31).
21. Remove four nuts (34), lock washers (33), flat
washers (32), and screws (37), and remove clamp
(36) and mounting bracket clamp (35) to remove air
cleaner support from the frame.
Figure 3-33
22. Remove six screws (40) and lock washers (39) to
disconnect the hydrostatic pump drive plate (38) from
the engine.
30
24
TN2026
25
26
27
28
29
27
32
33
34
35
37
36
31
TN1997
38
39
40
To Next Page
