ELECTRICAL
4203781 First Edition 4-91
4

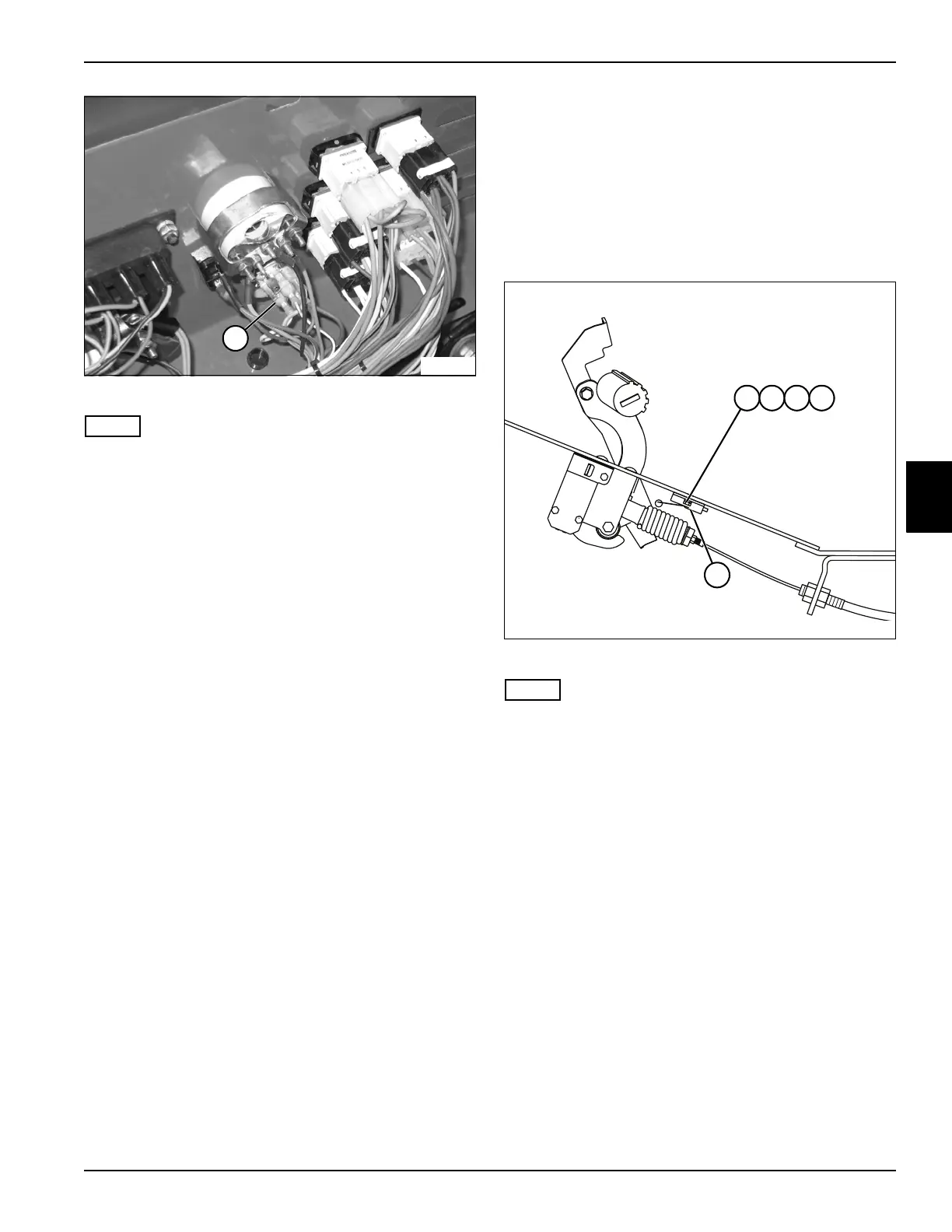

Figure 4-70
NOTE
Label all wires before disconnecting to ensure correct
installation.
6. Remove four wire connectors (4).
7. Remove key switch from the instrument panel.
Installation Note
Install the key switch by reversing the order of removal.
Park Brake Switch
Removal and Installation
See Figure 4-71.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.
Figure 4-71
NOTE
Label all wires before disconnecting to ensure correct
installation.
3. Disconnect the wire connector.
4. Remove two nuts (1), lock washers (2), flat washers
(3), and screws (4).
5. Remove park brake switch (5).
Installation Notes
• Install the park brake switch by reversing the order of
removal.
• Make sure switch is properly aligned to park brake
lever.
• Adjust switch so that the switch contacts close with
the park brake engaged, and open when the park
brake is disengaged.
4
TN2222
TN2112
1 2 3
5
4
