Textron JACOBSEN R-311 69166 User Manual

3-10 4203781 First Edition
ENGINE
3
Radiator/Oil Coolers
Removal and Installation
See Figures 3-15 and 3-16.

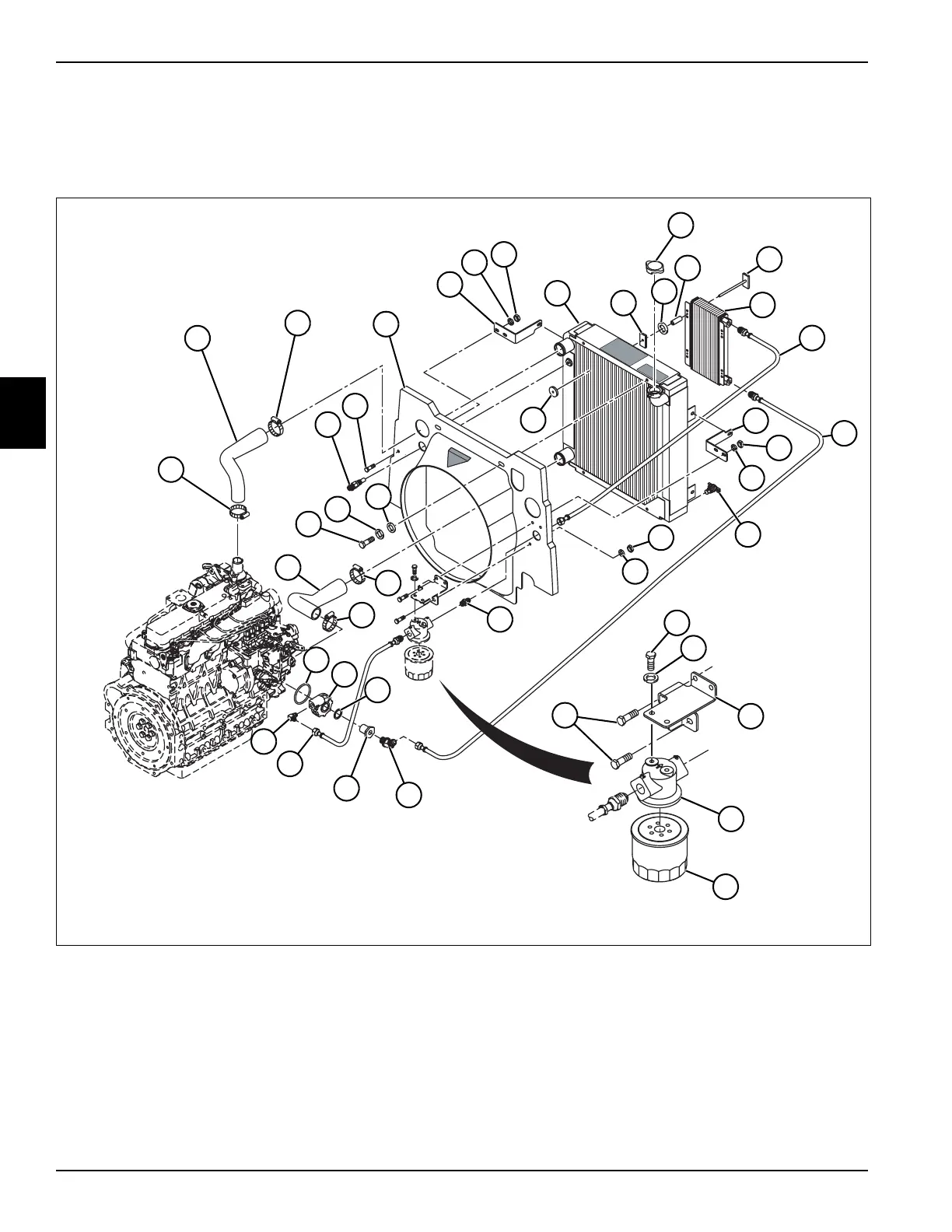

Figure 3-15
1 Upper Radiator Hose 9 Radiator 17 Draincock 26 Adapter
2 Hose Clamp (4) 10 Oil Cooler Mounting Tie (4) 18 Screw (2) 27 O-Ring
3 Engine Temperature Sensor 11 Flat Washer (4) 19 Remote Oil Filter Bracket 28 Engine Oil Filter Adapter
4 Screw(5) 12 Oil Cooler Spacer (4) 20 Engine Oil Filter Head 29 Washer
5 Radiator Shroud 13 Radiator Cap 21 Engine Oil Filter 30 Lower Radiator Hose
6 Remote Filter Bracket (2) 14 Engine Oil Cooler 22 Adapter 31 Screw (4)
7 Lock Washer (7) 15 Filter Head to Cooler Hose 23 Adapter 32 Lock Washer (4)
8 Nut (5) 16 Cooler to Engine Oil Adapter Hose 24 Engine Oil Filter Plug 33 Flat Washer (4)
25 Engine Filter Adapter to Filter
Head Hose
TN2154
33
3
4
1
2
2
32
31
30
2
2
27
28
29
26
25
24
23
5
6
7
8
9
10
11
12
13
10
14
15
16
6
8
17
8
7
18
7
19
4
20
21
22
7
10
