HYDROSTATIC POWER TRAIN
4203781 First Edition 5-67
5
Traction Linkage
Disassembly and Assembly

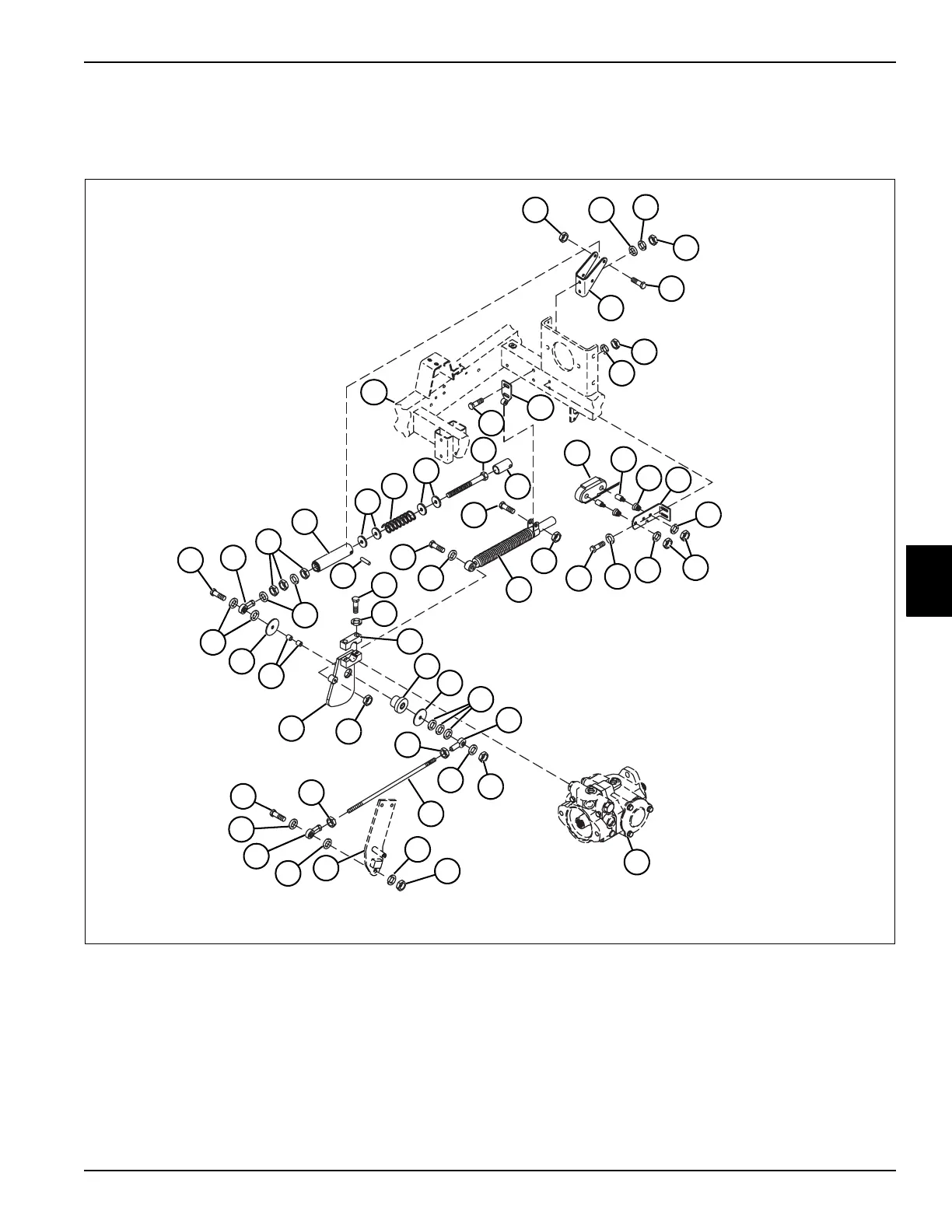

See Figure 5-64.
Figure 5-64
1 Lock Nut (2) 12 Magnet Support Pin (2) 22 Top Block (2) 32 Jam Nut (5)
2 Flat Washer (8) 13 Spring (2) 23 Traction Arm Rubber Mount 33 Traction Arm
3 Heavy Lock Washer (7) 14 Cruise Control Magnet Bracket 24 Washer (2) 34 Bushing (2)
4 Nut (3) 15 Flat Washer (3) 25 Rod End 35 Screw
5 Screw 16 Screw (2) 26 Traction Pump 36 Traction Return Tube
6 Traction Return Bracket 17 Traction Damper 27 Center Lock Nut 37 Washer (4)
7 Nut (3) 18 Screw 28 Traction Pump Adjusting Rod 38 Compression Spring
8 Heavy Lock Washer (2) 19 Screw 29 Pedal Arm 39 Special Screw
9 Damper Mount 20 Traction Control Spacer 30 Rod End (2) 40 Rear Pivot Stop
10 Screw (2) 21 Screw (2) 31 Screw 41 Frame
11 Cruise Control Magnet
TN2340
TN2340
1
3
2
6
5
7
4
9
10
12
8
14
3
11
13
4
3
15
16
1
17
18
19
20
21
3
22
23
2
24
25
27
26
2
28
3
4
29
15
30
15
31
15
32
7
33
34
24
2
35
30
3
32
32
36
38
37
37
39
40
41
