SPECIFICATIONS AND GENERAL INFORMATION
2
Mower Identification
See Figures 2-1 through 2-5.
Figure 2-1
Figure 2-2
Figure 2-3
Serial Number

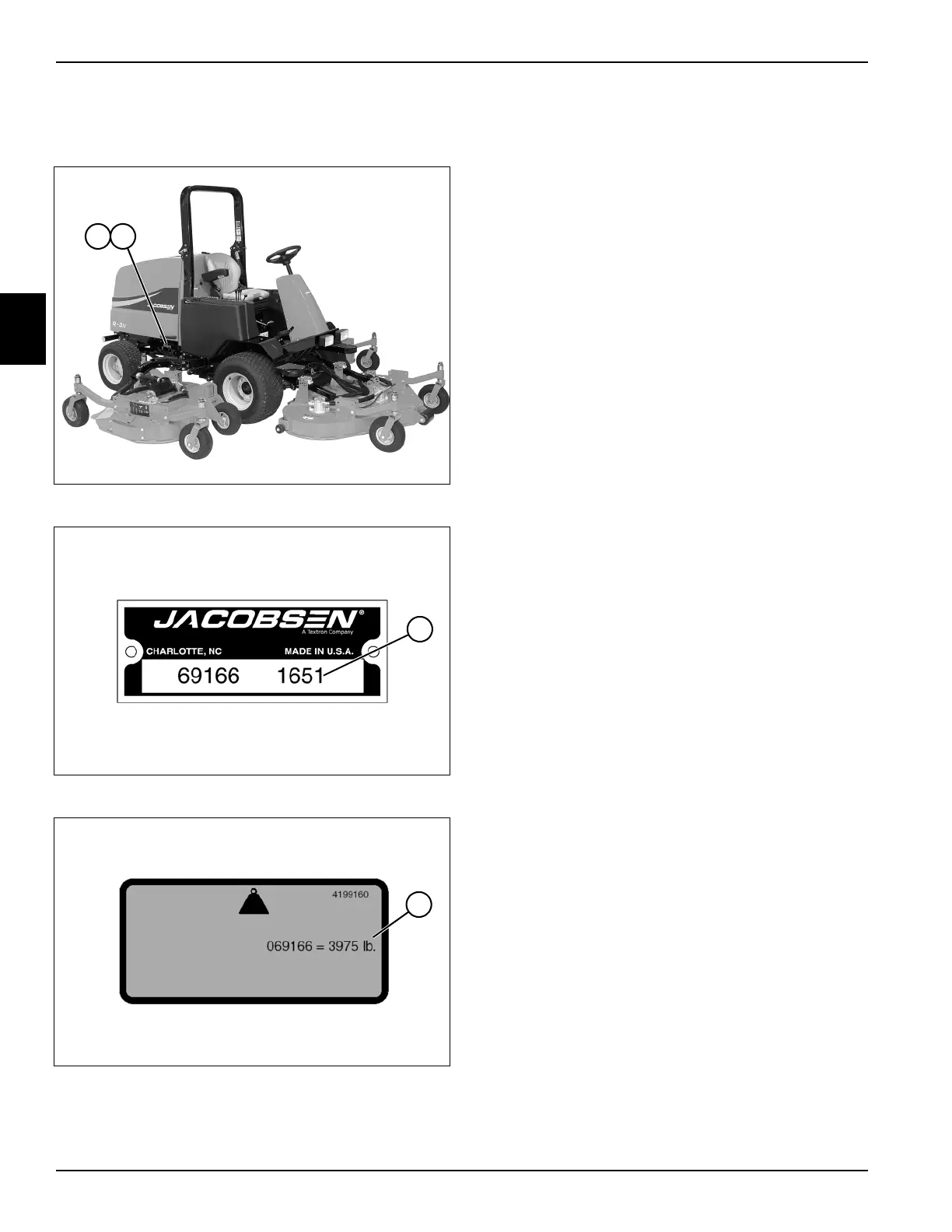

An identification plate (1) listing the serial number (3) is
attached to the frame of the mower and is located just
ahead of the rear axle on the right side. Always provide
the serial number of the unit when ordering replacement
parts or requesting service information. A label (2)
indicating the mower weight (4) is attached to the frame
of the mower and is located just ahead of the rear axle on
the right side.
TN2166
1 2
TN2129
3
4
TN2130
