4-106 4203781 First Edition
ELECTRICAL
4
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.
3. Locate correct valve.

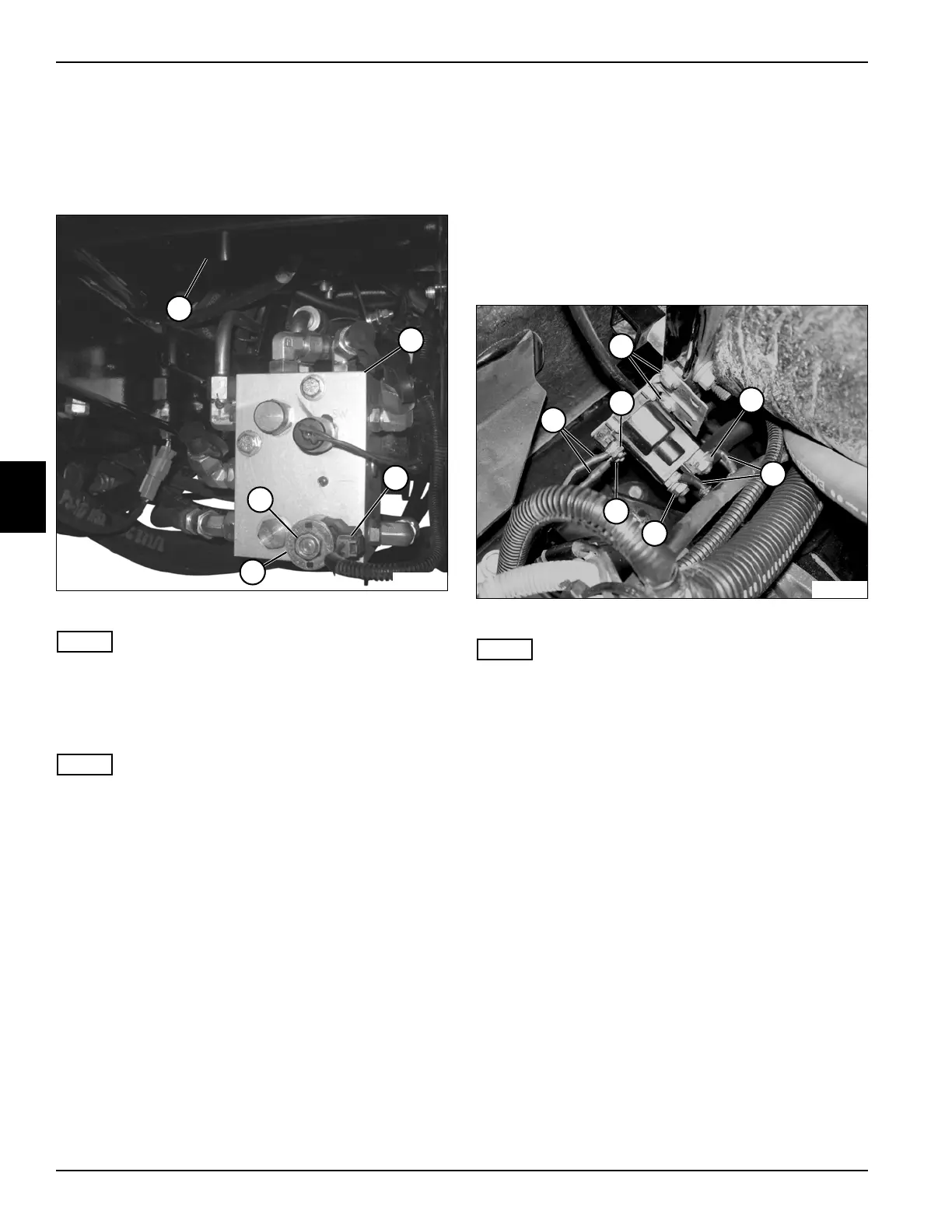

Figure 4-107
NOTE
The control valve has a cover that blocks the solenoids;
the 4WD valve does not. The control valve is shown with
the cover hinged up.
4. Remove cover (3).
NOTE
Label connectors before disconnecting to ensure correct
installation.
5. Disconnect connector (5) from solenoid (6).
6. Remove nut (7), and remove the solenoid (6) from
the valve (4).
Installation Notes
• Clean cartridge of any debris or surface rust and
apply dielectric grease (Jacobsen PN 365422) to
cartridge before installation.
• Install the solenoid by reversing the order of removal.
• Tighten nut (7) to 4–5 lb-ft (5.4–6.8 N·m).
Glow Plug Solenoid
Removal and Installation
See Figure 4-108.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Raise the hood.
3. Disconnect the negative (–) battery cable at the
battery.
Figure 4-108
NOTE
Label all wires before disconnecting to ensure correct
installation.
4. Remove nuts (2 and 4) and disconnect wires (3).
5. Remove nuts (5 and 6) and disconnect wires (7).
6. Remove screws (1) and glow plug solenoid.
Installation Note
Install the glow plug solenoid by reversing the order of
removal.
TN2334
7
5
3
6
4
TN1931
2
1
3
4
5
6
7
