Seat Switch
Removal and Installation
See Figures 4-74 through 4-78.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.

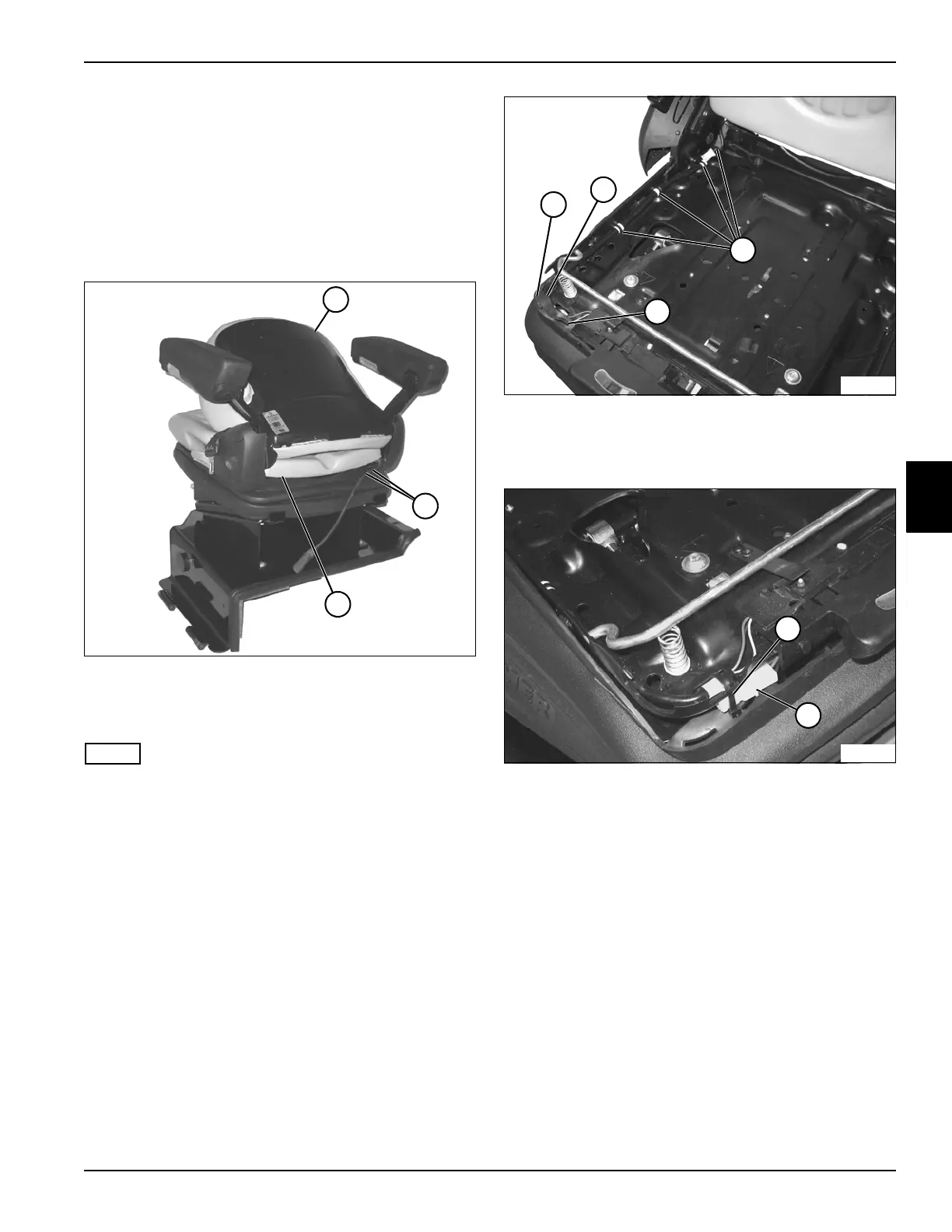

Figure 4-74
3. Tilt seat back (1) to forward position.
4. Cut cable ties (2).
NOTE
Label all wires before disconnecting to ensure correct
installation.
5. Lift rear of seat (3); slide forward and remove seat.
Figure 4-75
6. Disengage bellows (5) from hooks (4).
7. Cut cable ties (6).
Figure 4-76
8. Cut cable tie (7).
9. Disconnect wire connector (8).
TN2274
1
2
3
TN2270
6
4
4
5
TN2271
7
8
