ELECTRICAL
4203781 First Edition 4-101
4

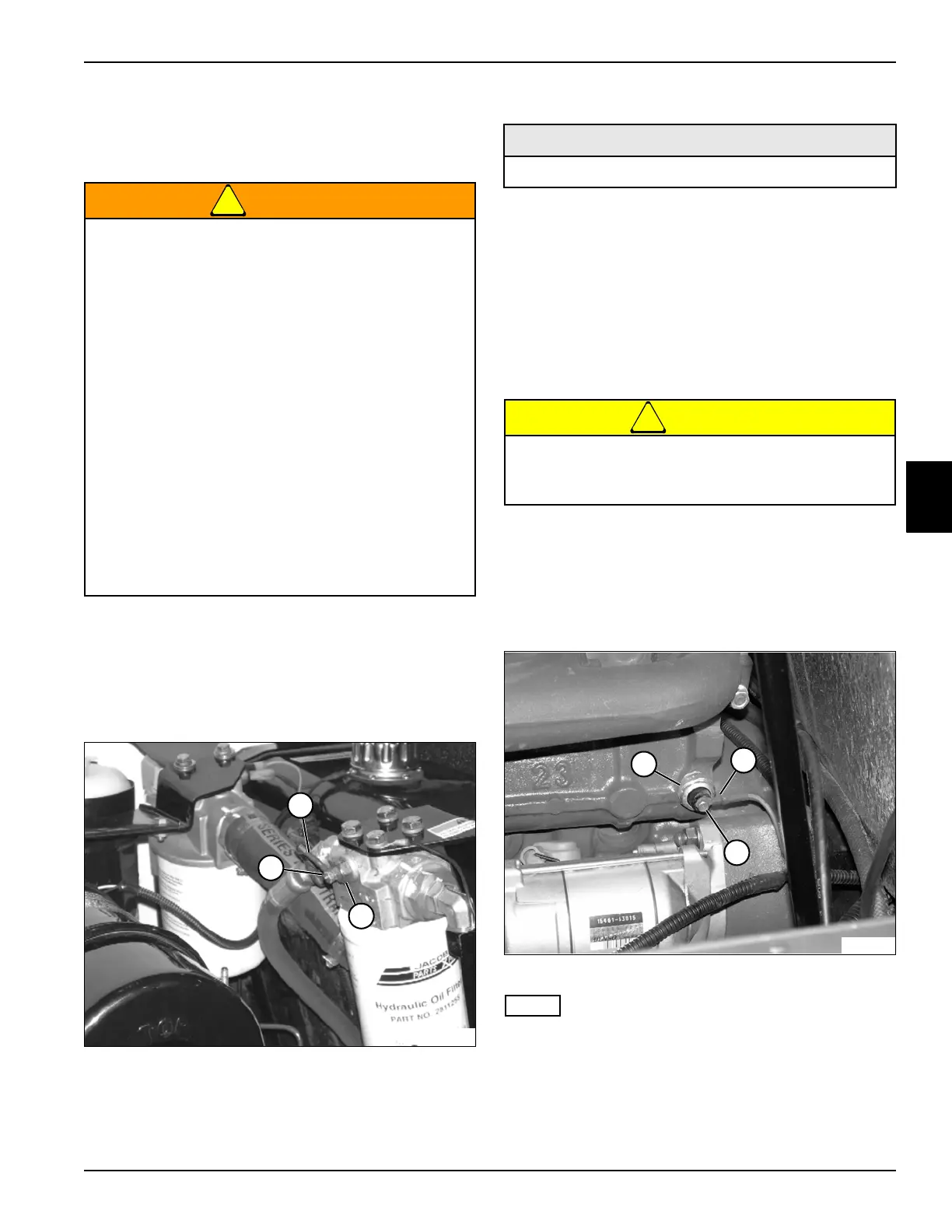

Charge Filter Pressure Switch
Removal and Installation
See Figure 4-96.
!
WARNING
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Raise the hood.
3. Disconnect the negative (–) battery cable at the
battery.
Figure 4-96
4. Remove nut (1) and disconnect wire (2) from the
charge filter pressure switch (3).
5. Remove charge filter pressure switch (3).
Installation Notes
• Install the charge filter pressure switch by reversing
the order of removal.
• Apply Teflon tape to the threads of the charge filter
pressure switch before installing.
Engine Oil Pressure Switch
Removal and Installation
See Figure 4-97.
!
CAUTION
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Raise the hood.
3. Disconnect the negative (–) battery cable at the
battery.
Figure 4-97
NOTE
Label all wires before disconnecting to ensure correct
installation.
4. Remove screw (3) and disconnect wire (2) from the
engine oil pressure switch (1).
5. Remove engine oil pressure switch.
The hydraulic system is under pressure, and the
oil may be hot!
• Always allow the machine to cool completely
before performing service.
• Always relieve pressure in the hydraulic
system before performing service.
• Always use appropriate safety equipment and
clothing to protect exposed skin and eyes
from high-pressure oil.
• Tighten all connections to proper
specifications before applying pressure.
• Never use bare hands to check for leaks! Oil
under pressure can penetrate the skin and
can cause gangrene within a few hours if not
properly removed. Use a piece of cardboard
to check for leaks.
Failure to follow appropriate safety precautions
may result in death or serious injury.
TN2262
1
3
2
Required Materials
Telfon
®
Tape
Engine components will become hot during
operation. Allow engine components to cool
before performing service.
TN1908
1
2
3
To Next Page
