6-4 4203781 First Edition
HYDRAULICS
6
Component Location
See Figures 6-1 and 6-2.

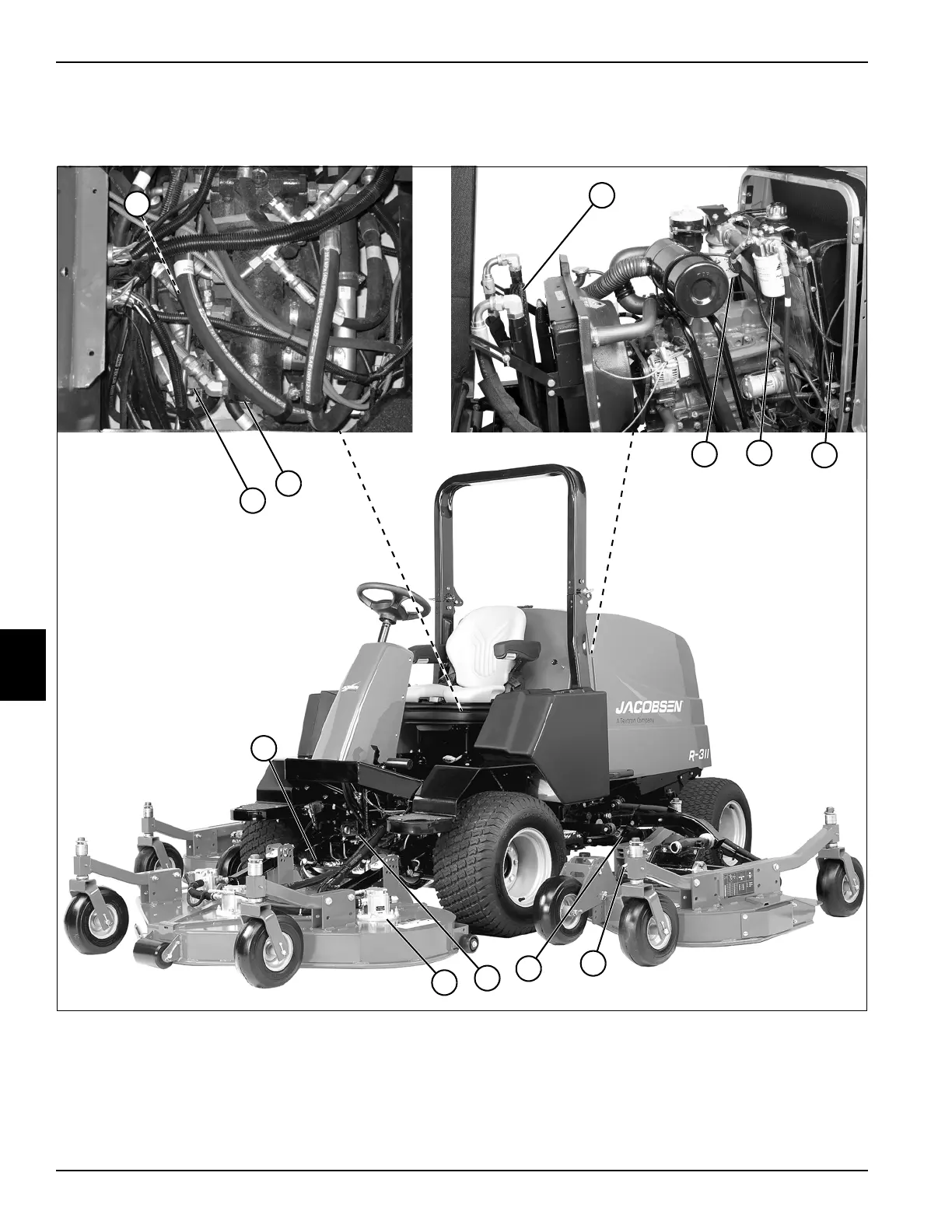

Figure 6-1: Component Location—Left Side
1 Right Deck Valve
2 Hydraulic Oil Cooler
3 Hydraulic Oil Tank
4 Charge Pressure Filter
5 Hydraulic Oil Return Filter
6Gear Pump
7 Left Deck Valve
8 Front Lift Cylinder (2)
9 Front Cutting Unit Motor (3)
10 Front Deck Valve
11 Left Wing Lift Cylinder
12 Left Wing Cutting Unit Motor (2)
TN2096, TN2123, TN2196
10
12
4
5
3
2
1
7
6
9
8
11
