ELECTRICAL
4203781 First Edition 4-97
4
7. Remove nut (4), wire harness (5), and switch (11).
Installation Notes
• Install the front limit switch by reversing the order of
removal.
• Adjust actuator arm (9) so that switch is engaged
when front lift arms are raised.

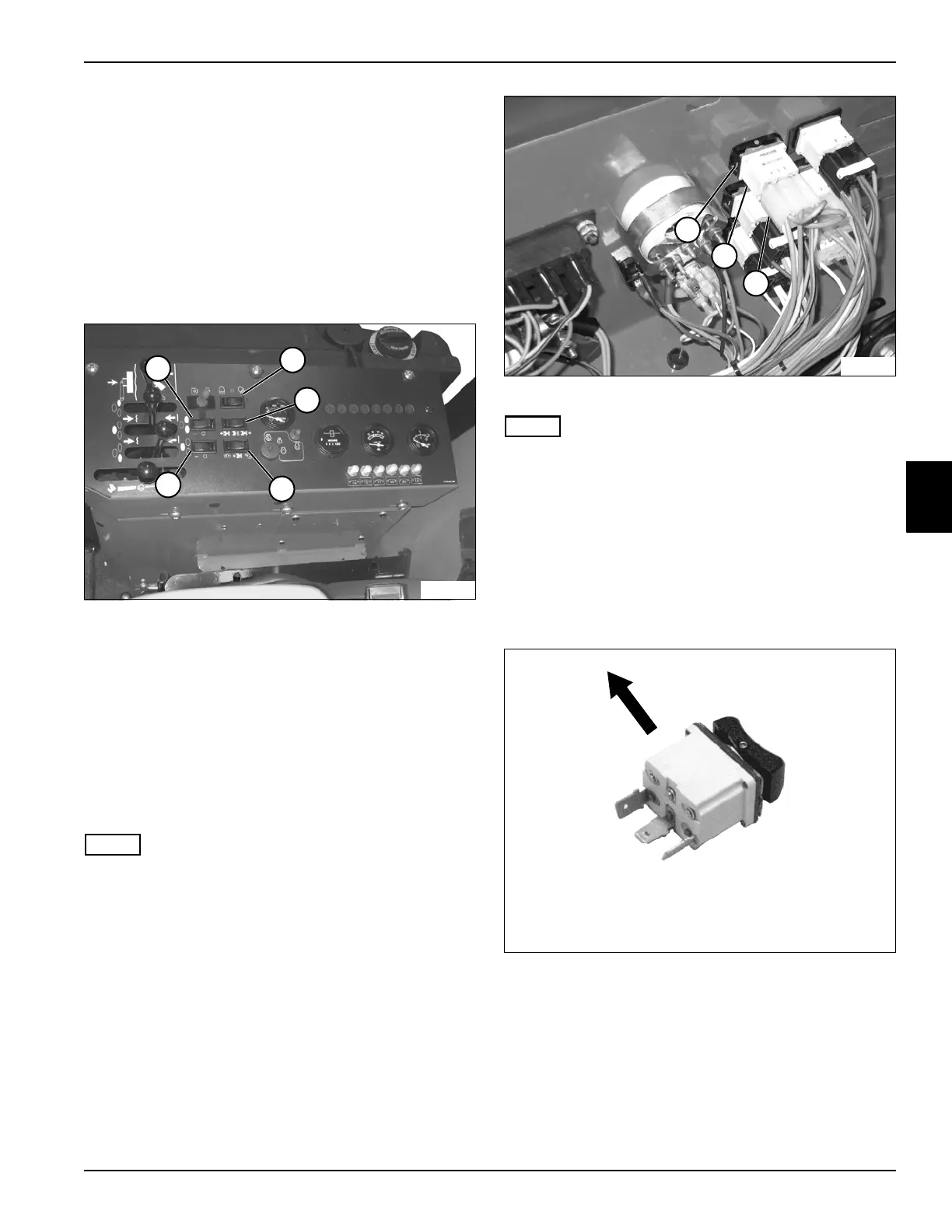

Rocker Switches
See Figure 4-87.
Figure 4-87
This procedure applies to the following switches:
• Front Mow Enable Switch (5)
• Wing Mow Enable Switch (1)
• Cruise Control Switch (4)
• 4WD (Four Wheel Drive) Switch (3)
• Light Switch (2)
Removal and Installation
See Figures 4-88 through 4-91.
NOTE
Front mow enable switch shown.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the battery negative (–) cable at the
battery.
3. Remove instrument panel. (See “Instrument Panel”
on page 4-87.)
Figure 4-88
NOTE
Label all wires before disconnecting to ensure correct
installation.
4. Disconnect wire connector (8).
5. Spread panel plug tab (6) on each side of rocker
switch (7) and pull rocker switch to remove.
Installation Notes
• Install rocker switch by reversing the order of
removal.
Figure 4-89
• Make sure front mow enable switch and cruise
control switch are installed as shown in Figure 4-89
(arrow indicates rear of mower).
TN2171
4
2
3
5
1
8
7
TN2222
6
TN1965
To Next Page
