9-14 4203781 First Edition
ACCESSORIES AND MISCELLANEOUS REPAIR
9

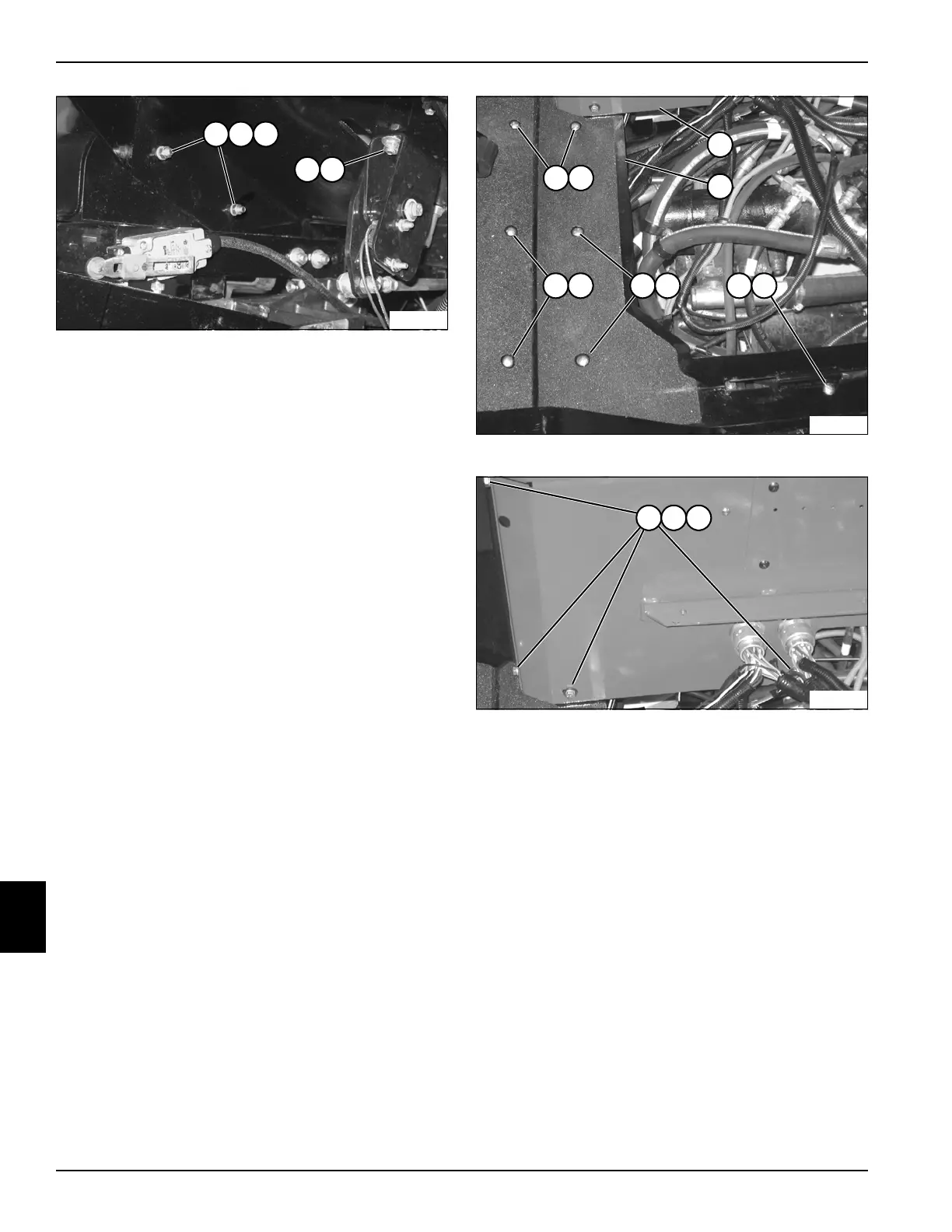

Figure 9-22
14. Remove two carriage bolts (29) and flange nuts (30).
15. Remove two nuts (26), lock washers (27), and
carriage bolts (28).
16. Using a suitable lifting device, raise and remove
footrest floor from machine.
Installation Notes
• Install the footrest floor by reversing the order of
removal.
Floorboard
Removal and Installation
See Figures 9-23 through 9-27.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Remove seat and seat platform. (See “Seat and Seat
Platform” on page 9-10.)
3. Remove instrument panel. (See “Instrument Panel”
on page 4-87.)
4. Remove front cowling. (See “Front Cowling” on
page 9-5.)
5. Block both sides of rear wheels using suitable wheel
blocks.
Figure 9-23
Figure 9-24
6. Remove seven carriage bolts (1) and flange nuts (2).
7. Remove four screws (5), lock washers (6), and flat
washers (7).
8. Move console wall (3) up and back to clear the
floorboard (4).
TN2200
282726
3029
TN2021
1
1 11
2
2 2 2
4
3
TN2202
5 6 7
To Next Page
