Fuel Shutoff Solenoid
Removal and Installation
See Figure 4-109.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Raise the hood.
3. Disconnect the negative (–) battery cable at the
battery.

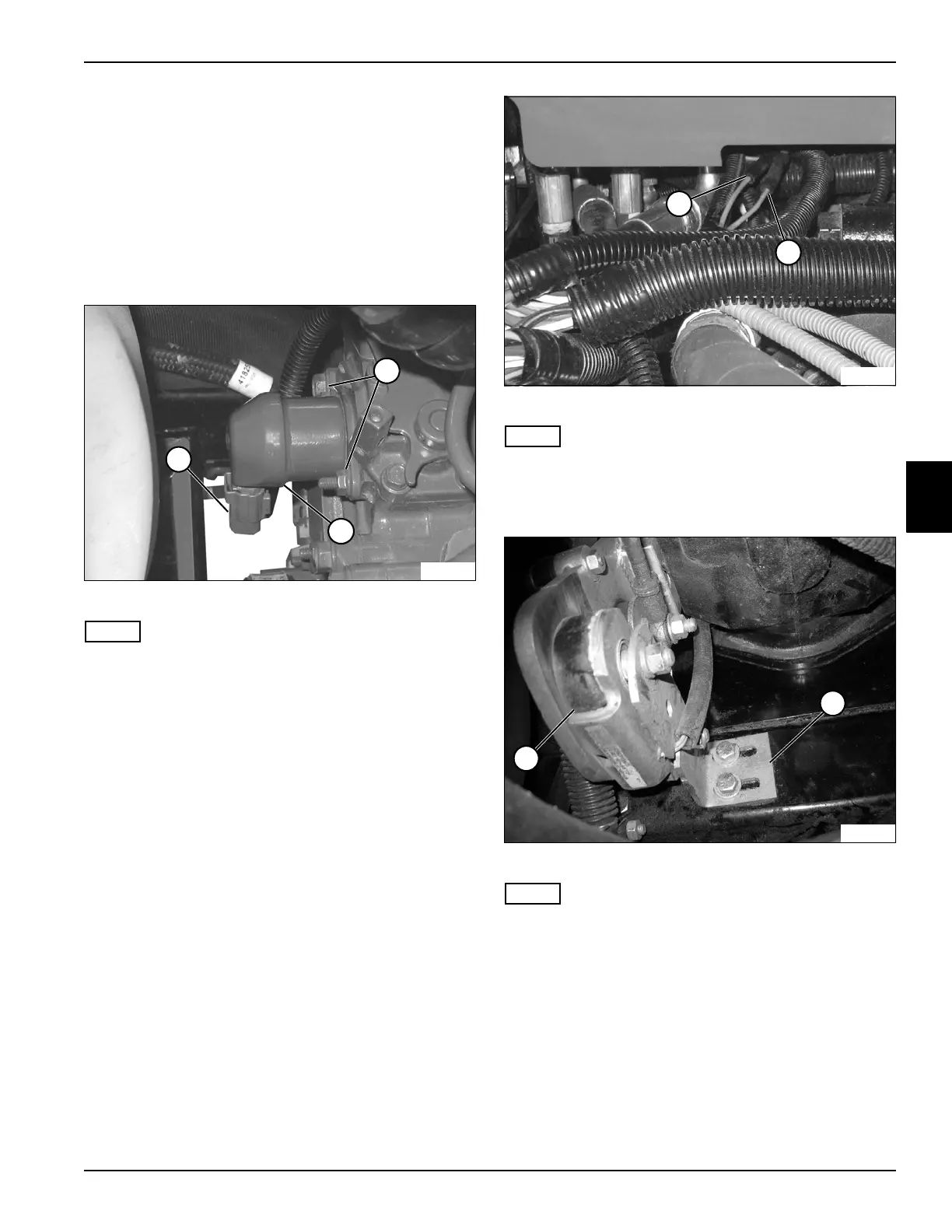

Figure 4-109
NOTE
Label all wires before disconnecting to ensure correct
installation.
4. Disconnect wire connector (1).
5. Remove two flange nuts (2).
6. Remove fuel shutoff solenoid (3).
Installation Note
Install the fuel shutoff solenoid by reversing the order of
removal.
Cruise Control Magnet
Removal and Installation
See Figures 4-110 through 4-112.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.
3. Raise the seat.
Figure 4-110
NOTE
Label all wires before disconnecting to ensure correct
installation.
4. Disconnect wire connectors (1 and 2).
Figure 4-111
NOTE
Make marks on the machine to ensure correct bracket
installation. Correctly installing the bracket will position
the cruise control magnet.
5. Remove bracket (4) with cruise control magnet (3)
attached.
TN2264
1
2
3
TN2267
2
1
TN2037
4
3
