Mow Solenoids

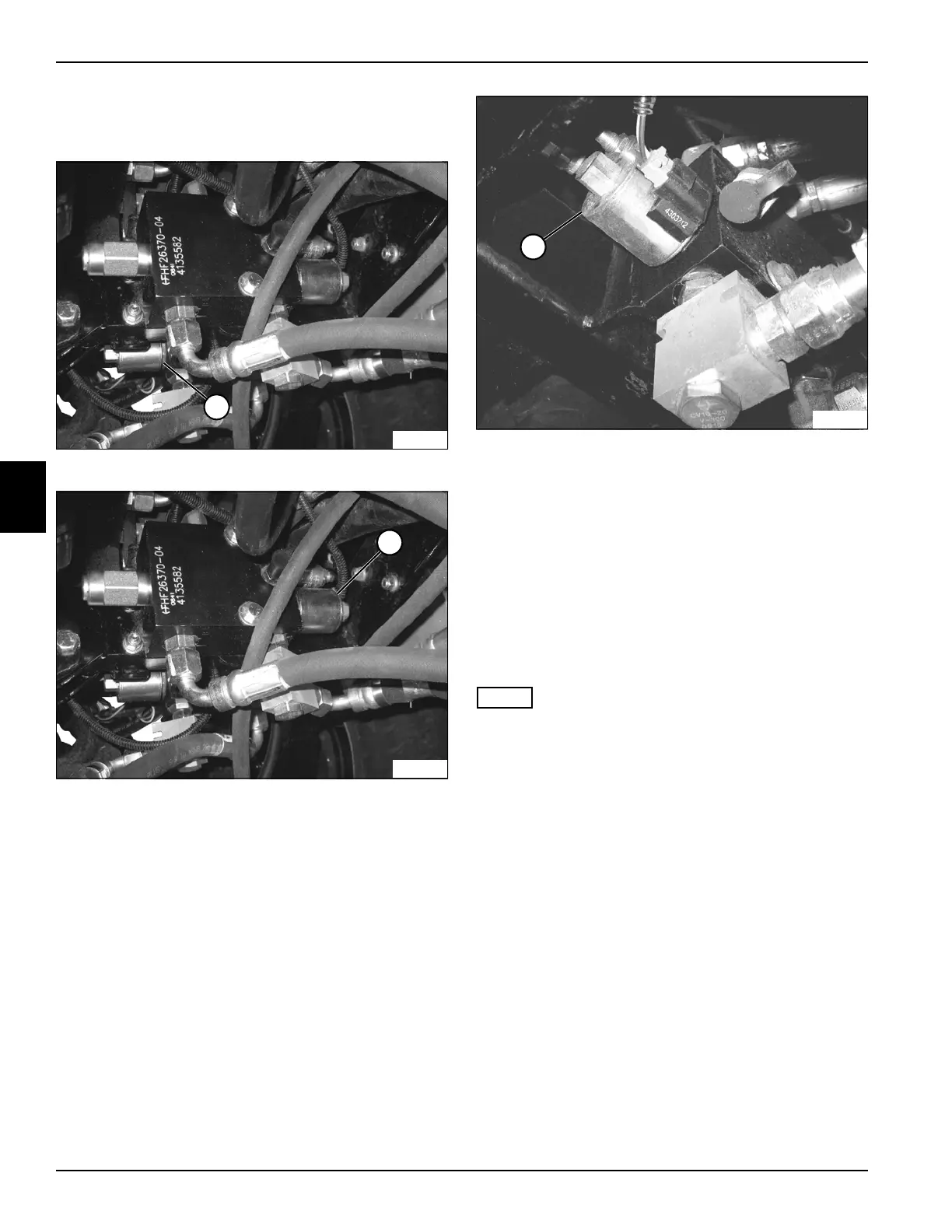

See Figures 4-101 through 4-103.
Figure 4-101: Left Mow Solenoid
Figure 4-102: Right Mow Solenoid
Figure 4-103: Front Mow Solenoid
This procedure applies to the following solenoids:
• Left Mow Solenoid (1)
• Right Mow Solenoid (2)
• Front Mow Solenoid (3)
The left mow solenoid is located on the left deck valve.
The right mow solenoid is located on the right deck valve.
The front mow solenoid is located on the front deck valve.
Removal and Installation
See Figure 4-104.
NOTE
The left mow solenoid is shown; all solenoids are
removed and installed the same way.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.
3. Locate correct deck valve.
TN2268
1
TN2268
2
TN2269
3
