ELECTRICAL
4203781 First Edition 4-111
4
Horn
Removal and Installation

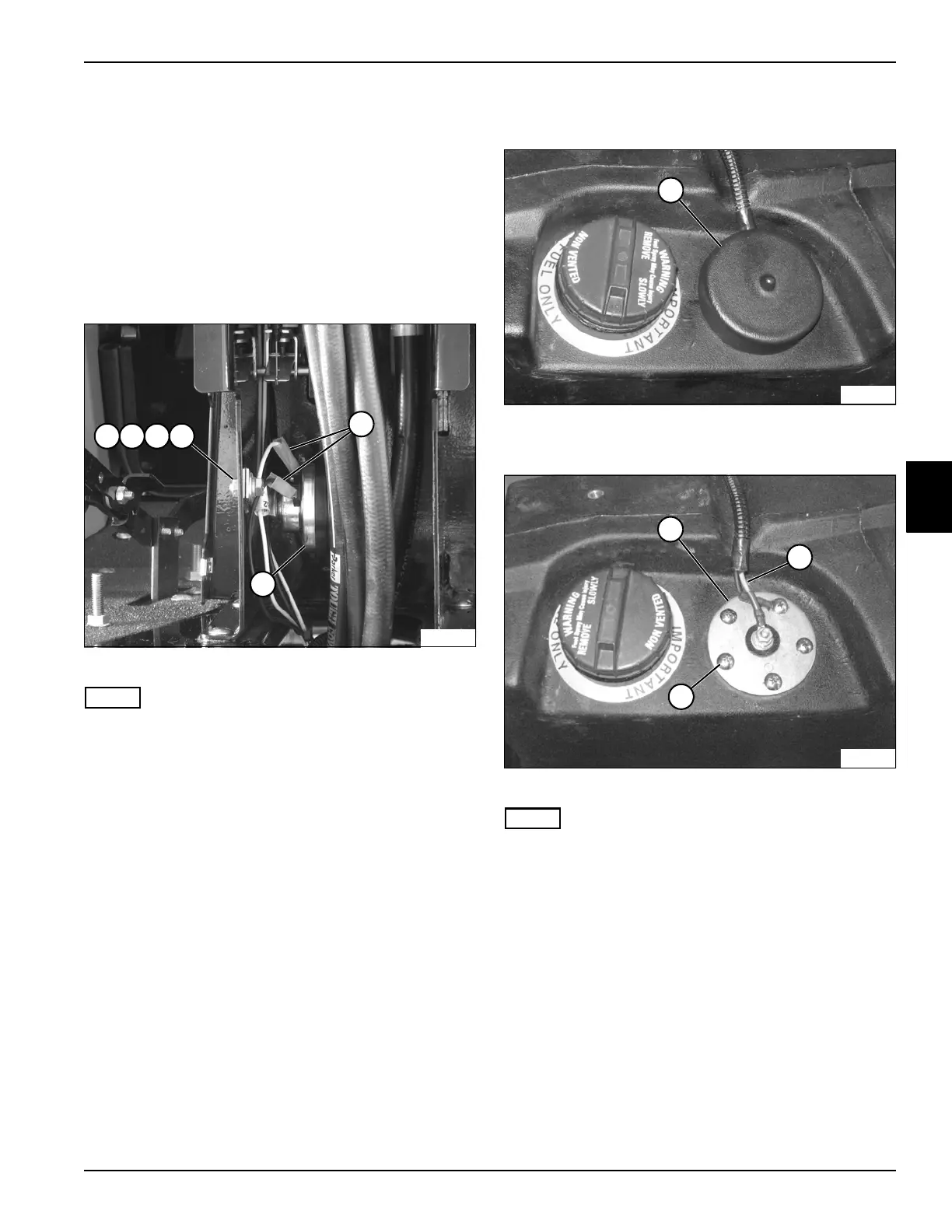

See Figure 4-121.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the battery negative (–) cable at the
battery.
3. Remove the steering tower cover. (See “Steering
Tower Cover” on page 7-8.)
Figure 4-121
NOTE
Label all wires before disconnecting to ensure correct
installation.
4. Disconnect wire connectors (5).
5. Remove screw (1), lock washer (2), flat washer (3),
and nut (4).
6. Remove horn (6).
Installation Notes
• Install the horn by reversing the order of removal.
• Horn must not touch any adjacent parts.
Fuel Level Sensor
Removal and Installation
See Figures 4-122 and 4-123.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.
3. Drain fuel until level is below fuel level sensor mount
opening.
Figure 4-122
4. Remove fuel level sensor cover (1).
Figure 4-123
NOTE
Label all wires before disconnecting to ensure correct
installation.
5. Disconnect fuel level sensor wire harness (3).
6. Remove five screws (4).
7. Remove fuel level sensor (2).
Installation Note
Install the fuel level sensor by reversing the order of
removal.
TN2182
3
6
5
21 4
TN2055
1
TN1833
2
3
4
