CUTTING UNITS
8
Disassembly and Assembly
See Figure 8-20.
Figure 8-20
Disassembly Notes
• Note position and order of flat washers and
height-of-cut spacers for proper assembly.
• Inspect all moving parts for wear or damage.
Replace as necessary.
Assembly Notes
• Assemble caster wheel in reverse order of
disassembly.
• Lubricate grease fitting with grease that meets or
exceeds NLGI Grade 2 LB specifications. Apply
grease with a manual grease gun and fill slowly until
grease begins to seep out. Do not use compressed
air gun.
• Set caster tire pressure to 20–25 psi (138–172 kPa).
Fixed Caster Wheels
Removal and Installation
See Figure 8-21.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Raise and support cutting deck using jackstands.
Figure 8-21
3. Remove screw (1), lock washer (2), and nut (3).
4. Remove cotter pin (4).
5. Remove shaft pin (5) and caster wheel (6).
6. Inspect caster wheel (6) along with bearings,
bushings, washers, and pin for wear or damage.
Replace as necessary.
Installation Notes
• Inspect cotter pin for damage before installation.
• Install the fixed caster wheel by reversing the order of
removal.

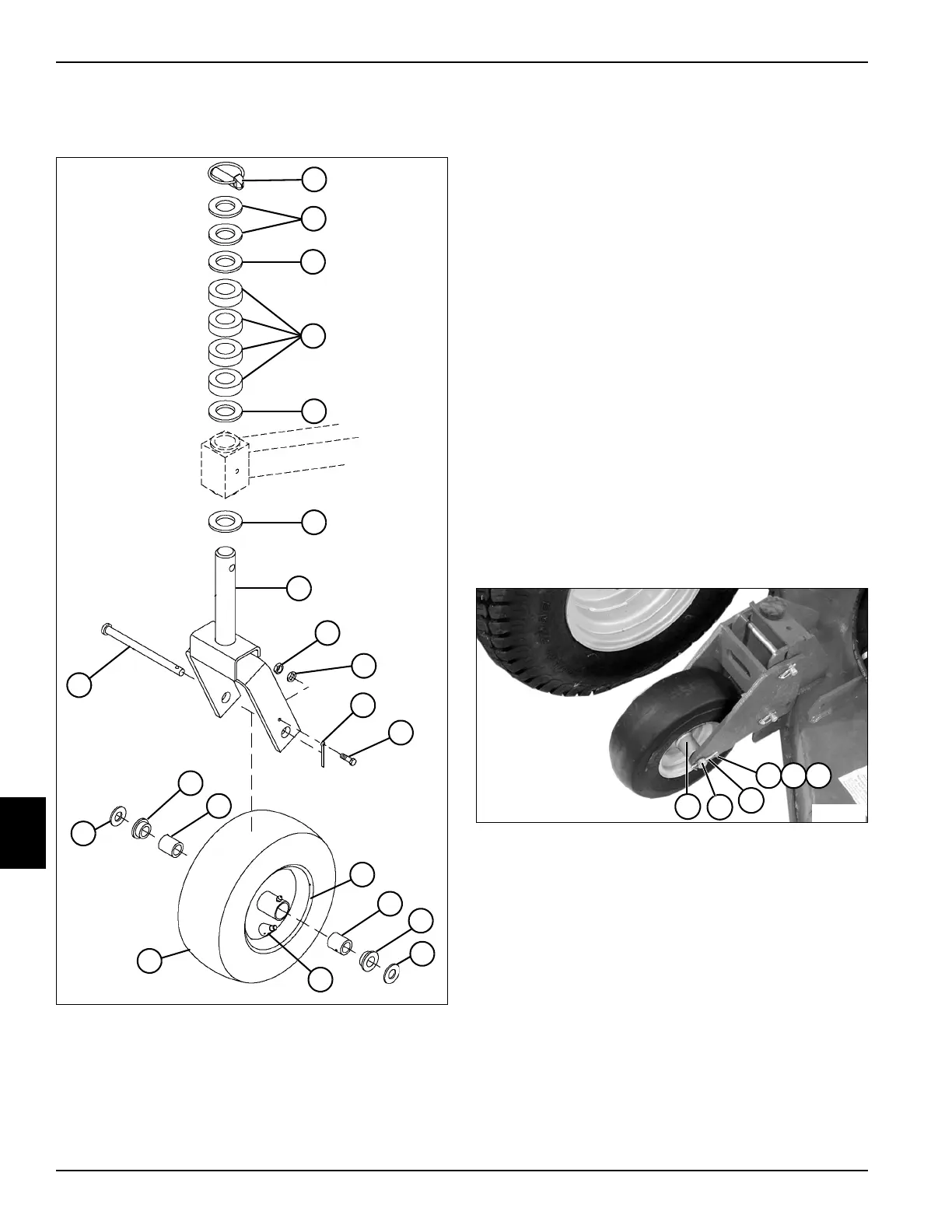

1 Lock Pin 7 Lock Washer 12 Bushings
