7-16 4203781 First Edition
STEERING
7
Steering Tower
Removal and Installation
See See Figure 7-23.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Remove the steering tower cover. (See “Steering
Tower Cover” on page 7-8.)
3. Remove the steering column. (See “Steering
Column” on page 7-15.)
4. Remove the horn/test switch. (See “Horn/Test
Switch” on page 4-91.)
5. Remove the horn. (See “Horn” on page 4-110.)

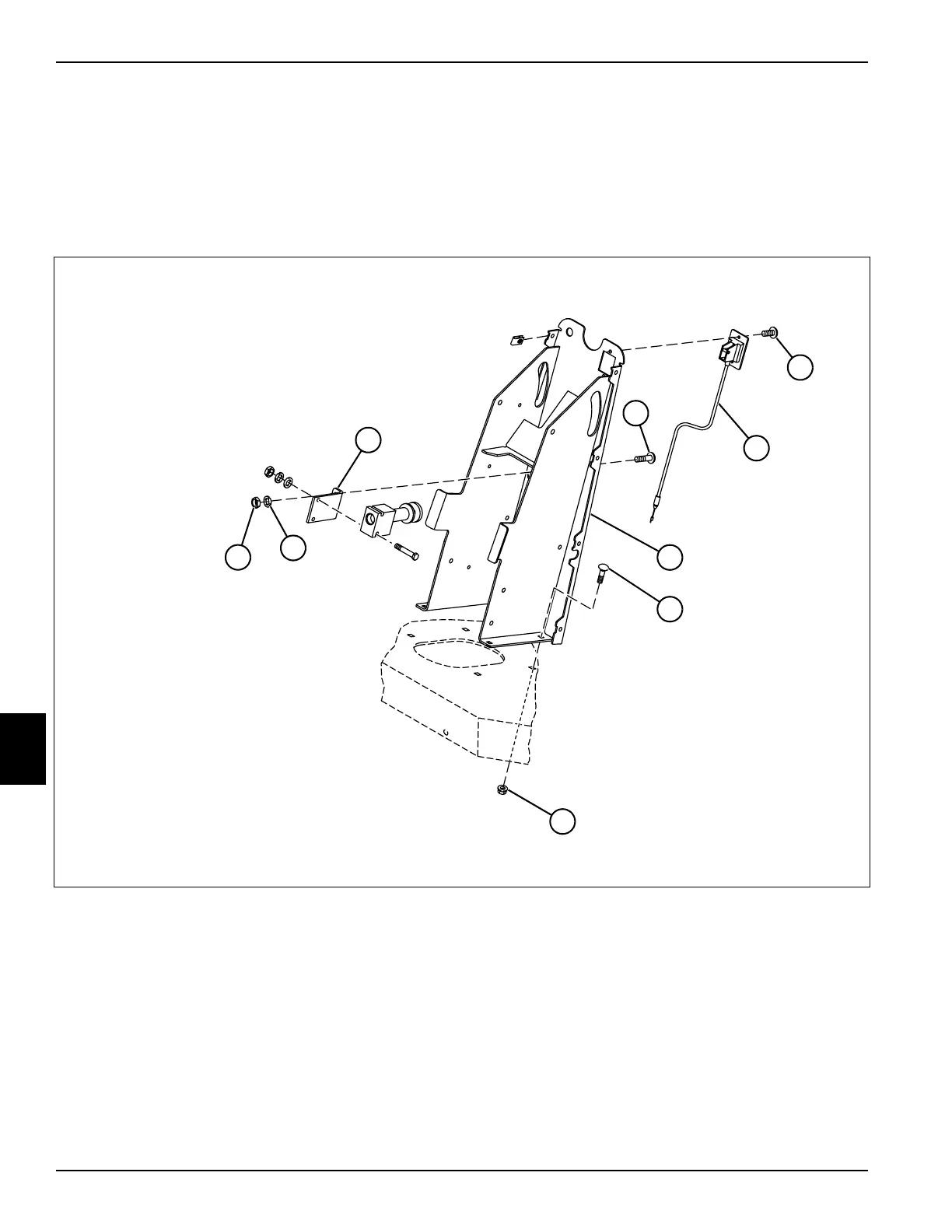

Figure 7-23
6. Remove two screws (1) and tilt cable (2).
7. Remove two nuts (8), lock washers (7), and screws
(3), and remove weight transfer valve bracket (9).
8. Remove four carriage bolts (5) and flange nuts (6),
and remove steering tower (4) from machine.
Installation Note
Install the steering tower by reversing the order of
removal.
1 Screw (2) 4 Steering Tower 7 Lock Washer (2)
2 Tilt Cable 5 Carriage Bolt (4) 8 Nut (2)
3 Screw (2) 6 Flange Nut (4) 9 Weight Transfer Valve Bracket
TN2128
8
7
9
4
3
2
1
5
6
