ELECTRICAL
4203781 First Edition 4-95
4
PTO Switch
Removal and Installation

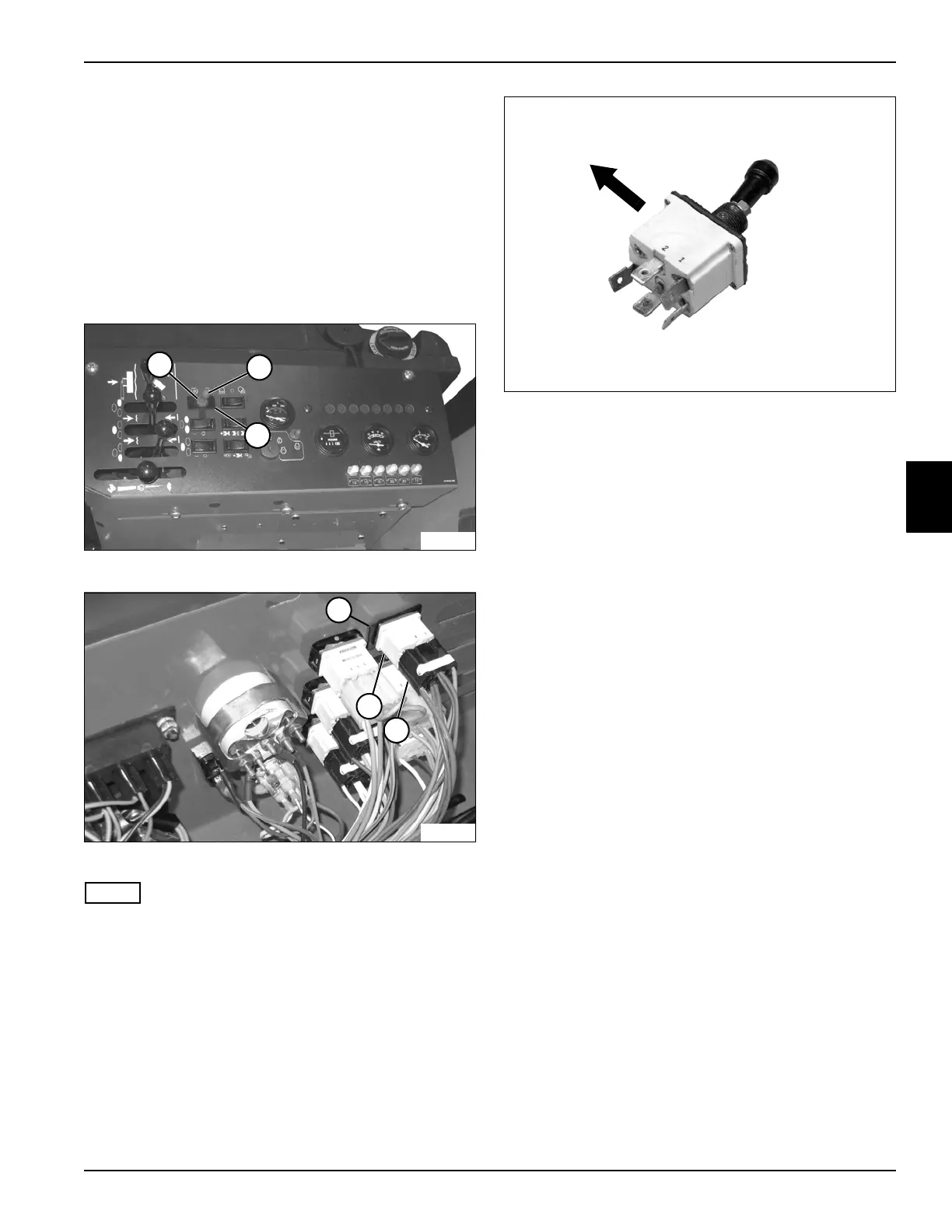

See Figures 4-81 through 4-83.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the battery negative (–) cable at the
battery.
3. Remove instrument panel. (See “Instrument Panel”
on page 4-87.)
Figure 4-81
Figure 4-82
NOTE
Label all wires before disconnecting to ensure correct
installation.
4. Disconnect wire connector (4).
5. Remove boot (2) from PTO switch (5).
6. Remove two nuts (1), upper panel plug (3), lower
panel plug (6), and PTO switch.
Installation Notes
• Install PTO switch by reversing the order of removal.
Figure 4-83
• Make sure PTO switch is installed as shown in
Figure 4-83 (arrow indicates rear of mower).
TN2171
2
1
3
4
5
TN2222
6
TN1969
