Volt Meter and Fuel Gauge

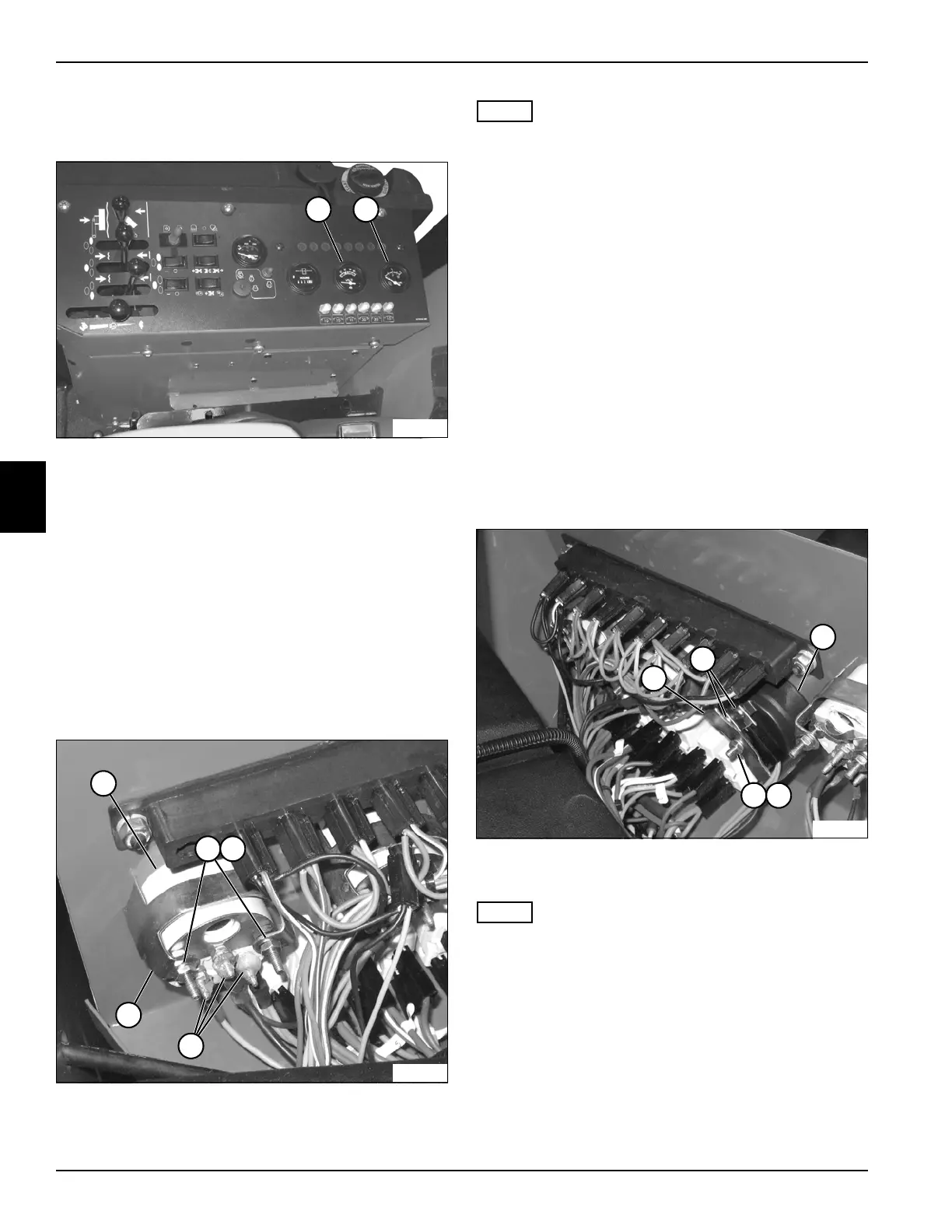

See Figure 4-118.
Figure 4-118
This procedure applies to the following gauges:
• Volt Meter (1)
• Fuel Gauge (2)
Removal and Installation
See Figure 4-119.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.
3. Remove instrument panel. (See “Instrument Panel”
on page 4-87.)
Figure 4-119
4. Remove nuts (2), lock washers (3), and bracket (5).
NOTE
Label all wires before disconnecting to ensure correct
installation.
5. Disconnect wire terminals (4).
6. Remove gauge (1).
Installation Note
Install the gauge by reversing the order of removal.
Hour Meter
Removal and Installation
See Figure 4-120.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.
3. Remove instrument panel. (See “Instrument Panel”
on page 4-87.)
Figure 4-120
4. Remove nut (4), lock washer (5), and bracket (1).
NOTE
Label all wires before disconnecting to ensure correct
installation.
5. Disconnect wire terminals (2).
6. Remove hour meter (3).
Installation Note
Install the hour meter by reversing the order of removal.
