HYDROSTATIC POWER TRAIN
4203781 First Edition 5-13
5

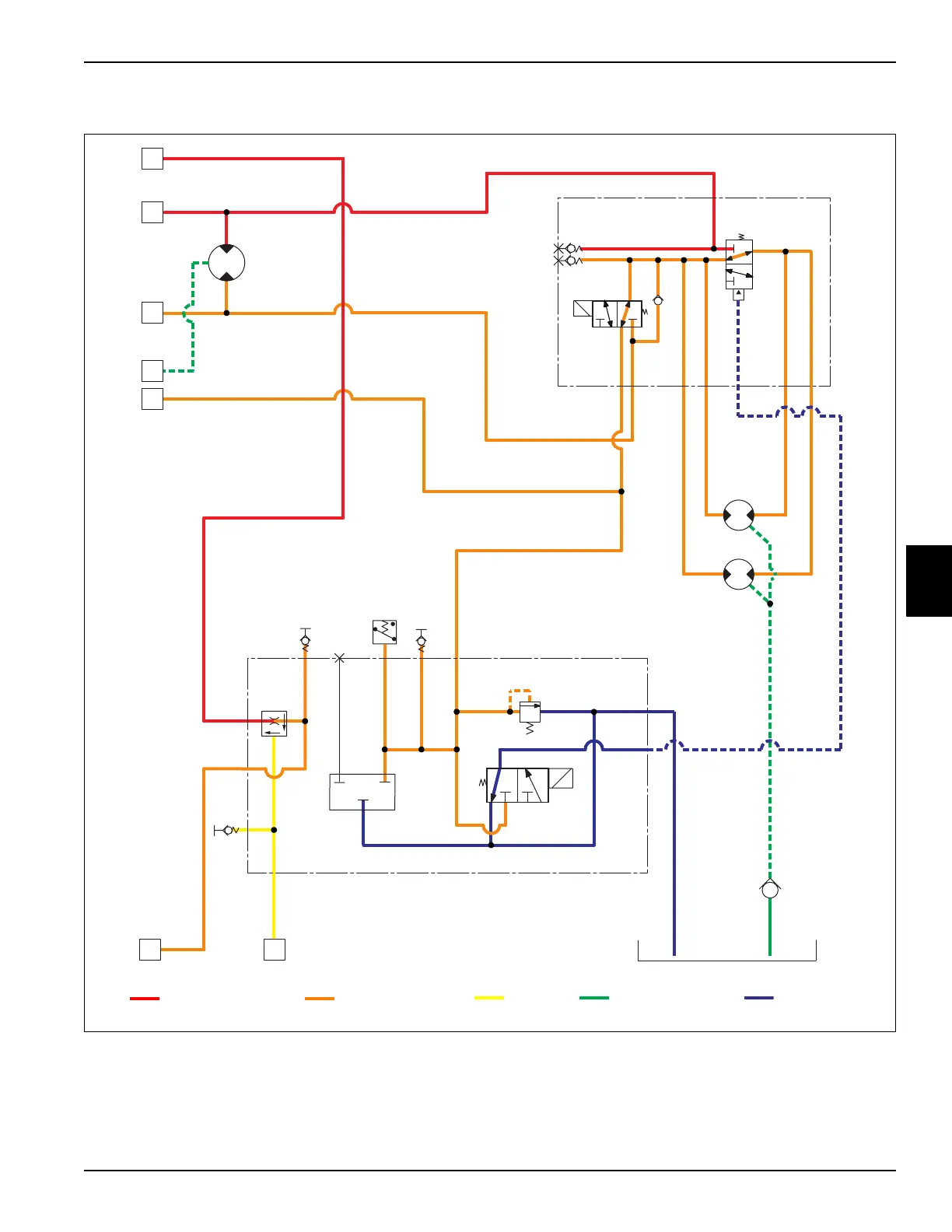

Traction Circuit—Forward 2WD Schematic, Continued
Figure 5-7
1 Operating Pressure Oil to Control Valve
(Port P)
4 Case Drain Oil from Front Axle Motor 7 Charge Pressure Oil to Lift Valve
2 Operating Pressure Oil to Front Axle Motor
and 4WD Valve (Port A)
5 Charge Pressure Oil to Control Valve (Port
F) and 4WD Valve (Port C)
3 Charge Pressure Oil from Front Axle Motor
and 4WD Valve (Port B)
6 Charge Pressure Oil from Control Valve
(Port ST)
TN2319
Operating Pressure Oil
Inlet or Drain Oil
Charge Pressure Oil
Metered Oil Return Oil
4WD Valve
L1
11.9
ci
1
Right
Wheel
Motor
2
5.04 ci
Secondary 4WD
Shuttle Valve
3
Hydraulic
Oil Tank
4
5
4WD Reverse
Solenoid
R1
4WD
R2
L2
B
C
Left
Wheel
Motor
11.9
ci
T
Charge Pressure
Relief Valve 160 psi
Charge Pressure
Light Switch
Primary 4WD
Solenoid
4WD
Control Valve
125 psi N.C.
Priority Valve
4.5 gpm
F
CP
SW
DLSD
P
ST
LD
L
Tank
Check
Valve
67
A
AD
BD
Front
Axle
Motor
