Textron JACOBSEN R-311 69166 User Manual

5-50 4203781 First Edition
HYDROSTATIC POWER TRAIN
5
Disassembly, Inspection, and Assembly

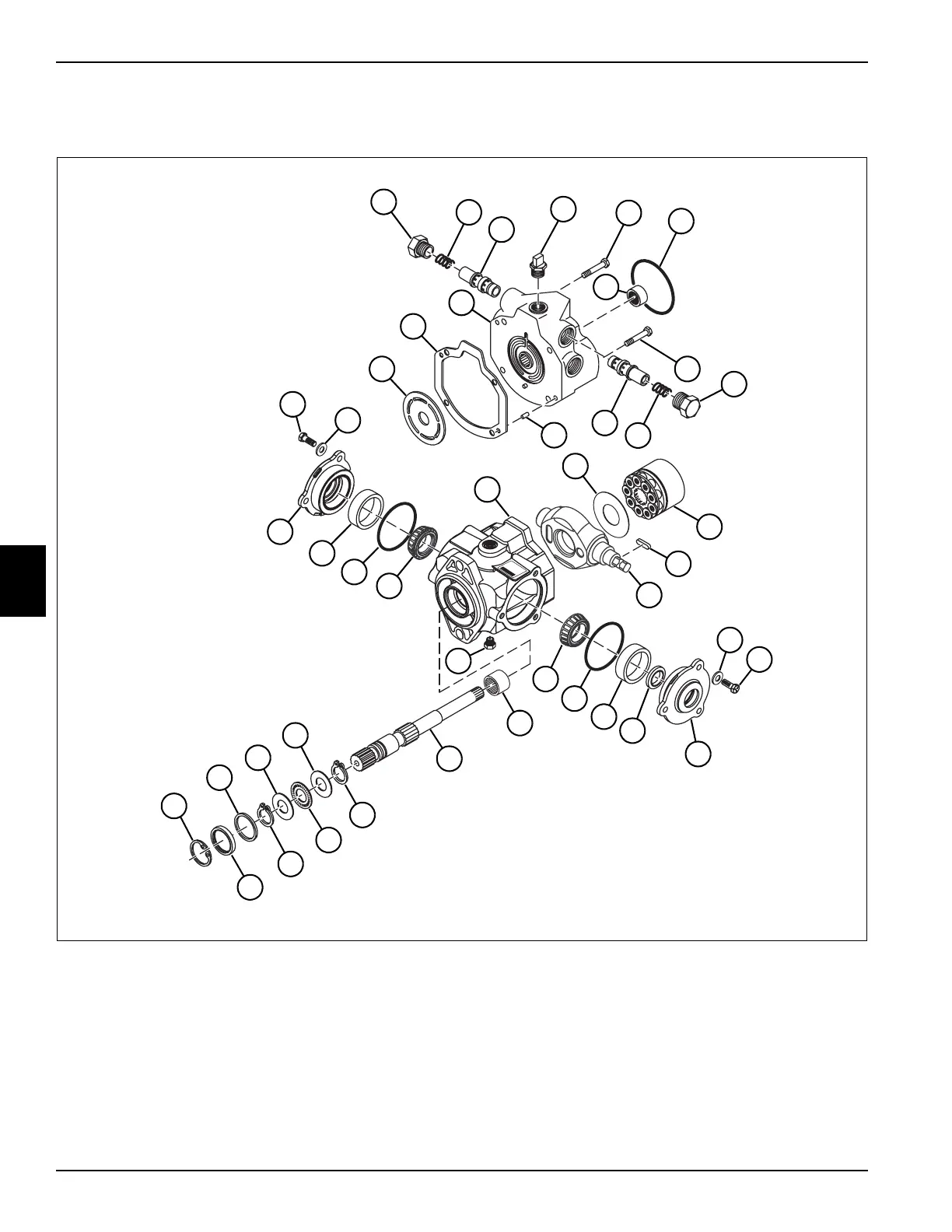

See Figure 5-46.
Figure 5-46
1 Plug (2) 10 Cam Plate Insert 19 O-Ring (2) 28 Thrust Race (2)
2 Spring (2) 11 Rotating Kit 20 Bearing Cone (2) 29 Plug
3 Relief Valve (2) 12 Trunnion Key 21 Bearing 30 Cover Plate
4 Tow Valve 13Cam Plate 22Drive Shaft 31Housing
5 Top Screw (2) 14 Washer (6) 23 Retaining Ring (2) 32 Valve Plate
6 O-Ring 15 Screw 24 Thrust Bearing 33 Housing Gasket
7 Coupler 16 Control Arm Cover Plate 25 Viton Shaft Seal 34 Backplate
8 Bottom Screw (2) 17 Control Arm Shaft Seal 26 Retaining Ring
9 Dowel Pin (2) 18 Bearing Cup (2) 27 Washer
2
0-XXR-0
6
3
07
B
J
1
31
089A
TN2328
1
2
7
8
1
3
4
5
6
3
2
11
10
12
13
14
15
19
18
17
16
20
26
27
28
28
25
23
24
23
21
22
20
19
18
30
29
31
34
33
32
14
15
9
