5-58 4203781 First Edition
HYDROSTATIC POWER TRAIN
5
Disassembly, Inspection, and Assembly

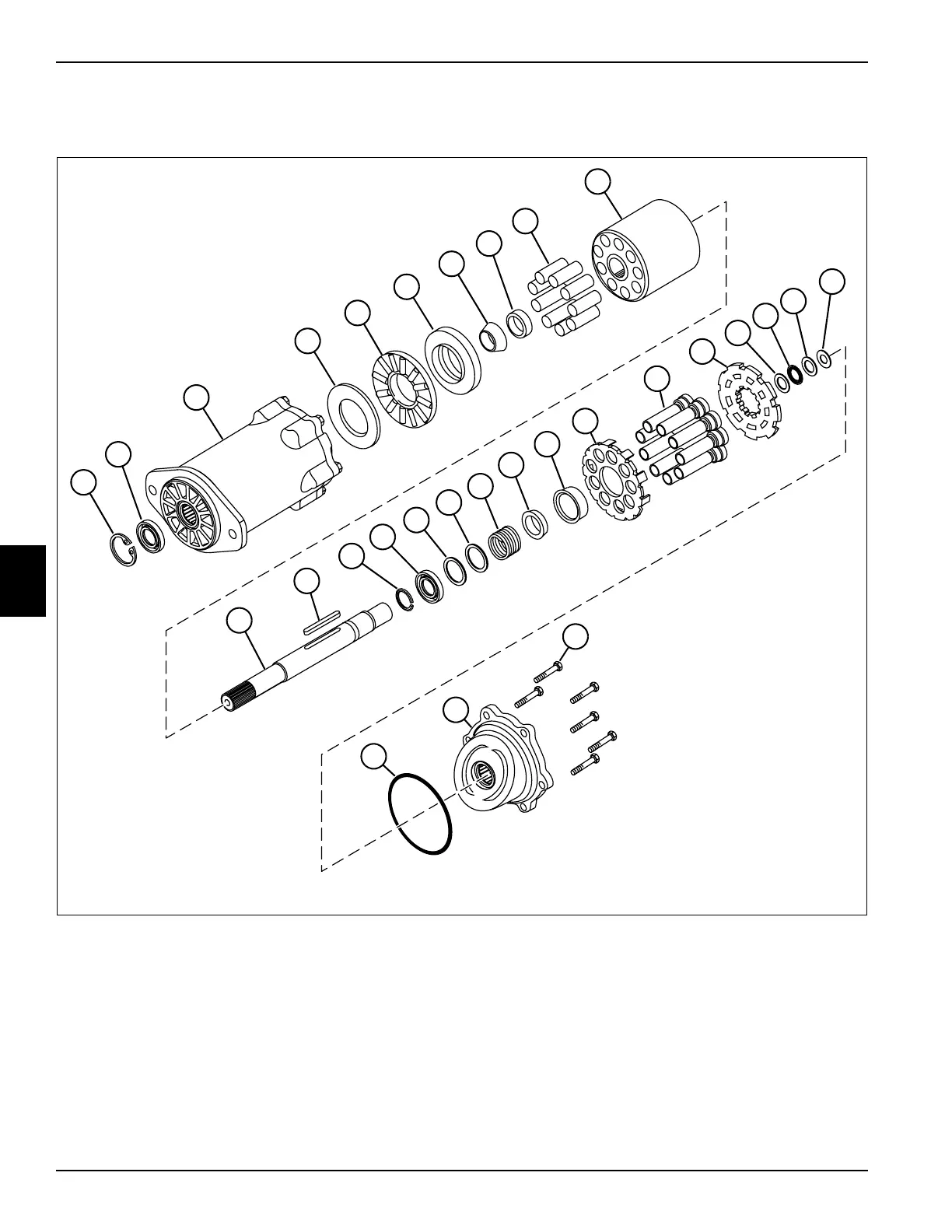

See Figure 5-54.
Figure 5-54
1 Retaining Ring (if equipped) 8 Spacer 15 Piston Assemblies (9) 22 Retaining Ring
2 Shaft Seal 9 Pistons (9) 16 Spider 23 Key
3 Housing Assembly 10 Rotating Kit Assembly 17 Pilot 24 Drive Shaft
4 Bearing Race (2) 11 Thrust Race (if equipped) 18 Spring 25 O-Ring
5 Thrust Bearing 12 Bearing Race 19 Washer (if equipped) 26 Backplate Assembly
6 Piston Race 13 Thrust Bearing 20 Washer (if equipped) 27 Screws (6)
7 Pivot (2) 14 Connector Plate 21 Spring Collar (if equipped)
TN2357
8
1
2
3
4
5
6
7
9
10
11
12
13
12
14
15
16
17
7
18
19
20
21
22
23
24
25
26
27
