HYDRAULICS
4203781 First Edition 6-77
6

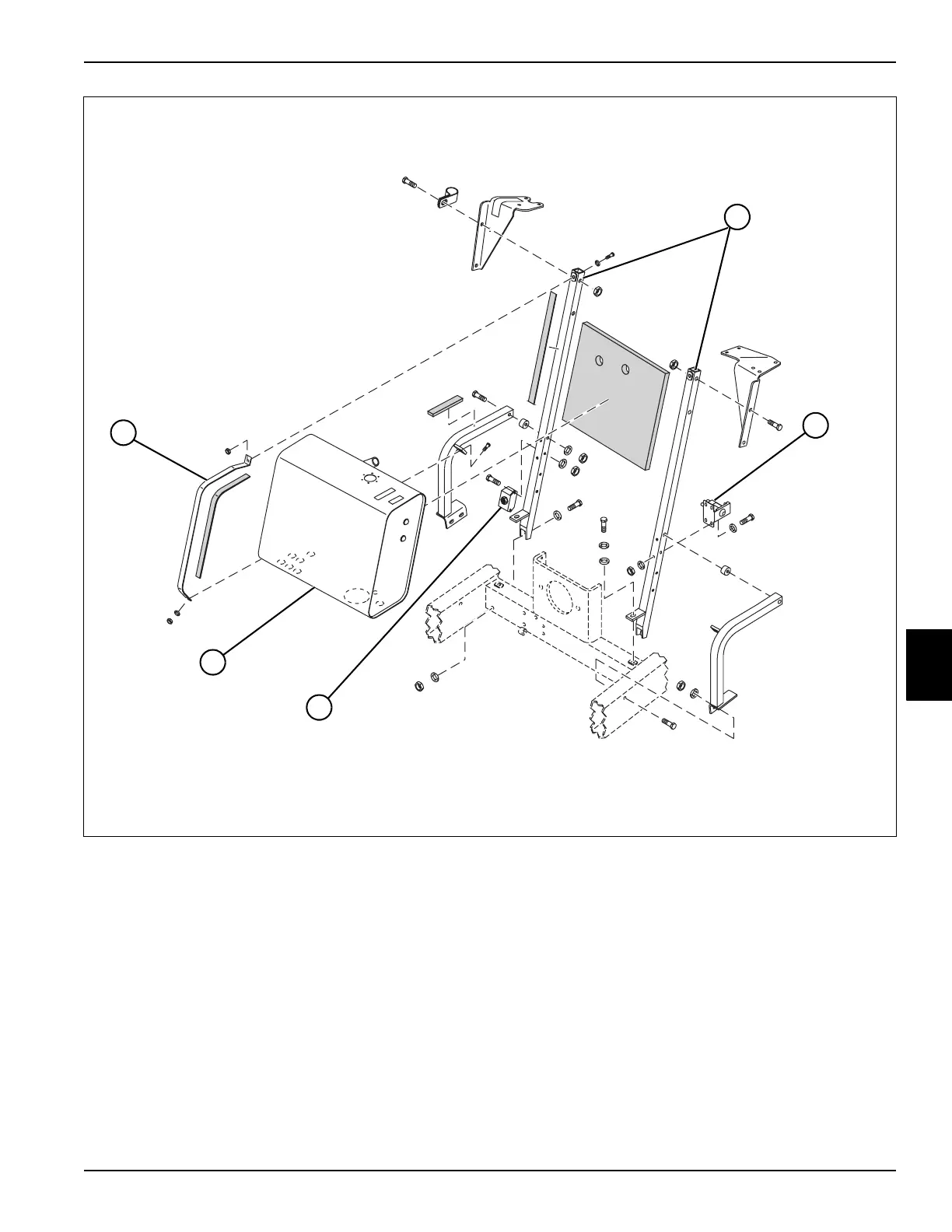

Figure 6-82
15. Disconnect glow plug solenoid (15) and fuel pump
(16) from hydraulic oil tank back supports (14).
16. Remove tank straps (18).
17. Support the hydraulic oil tank (17).
18. Remove hydraulic oil tank back supports (14).
19. Remove the hydraulic oil tank (17).
TN2302
18
17
14
16
15
