CUTTING UNITS
4203781 First Edition 8-5
8

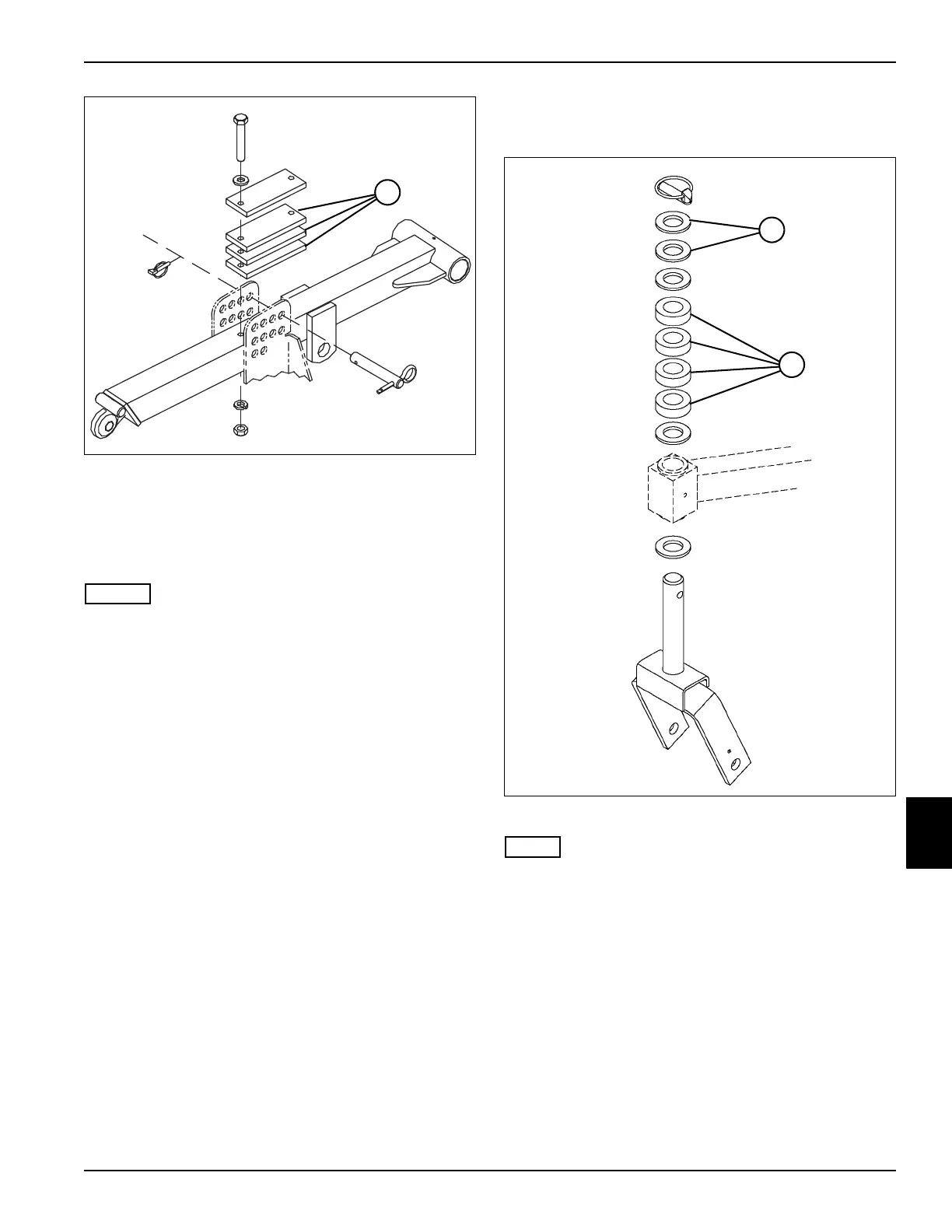

Figure 8-4
4. Lift the rear of front deck until level, and then lift an
additional 1/8 inch to 1/4 inch.
5. Insert shims (3) on lift arms and secure in place.
6. Front deck rake is now set.
NOTES
• Using too many shims or getting the rear of the deck
too high will affect the cutting height.
• The number of shims may vary between left and right
push arms.
Wing Decks
See Figure 8-5.
Figure 8-5
NOTE
Each swiveling caster wheel is assembled with at least
two 1/8 inch flat washers (1) along with the 1/2 inch
height-of-cut spacers (2).
1. Install two 1/8 inch flat washers (1) along with
height-of-cut spacers (2) on the rear caster wheel
yokes to lift the rear of the deck 1/4 inch.
For example, for 2 inch height-of-cut, use two 1/2
inch spacers on front casters. Use two 1/2 inch
spacers plus two 1/8 inch flat washers on rear
casters to achieve the proper rake. This will properly
set the wing decks.
3
TN1880
TN1883
2
1
