8-22 4203781 First Edition
CUTTING UNITS
8
Disassembly and Assembly

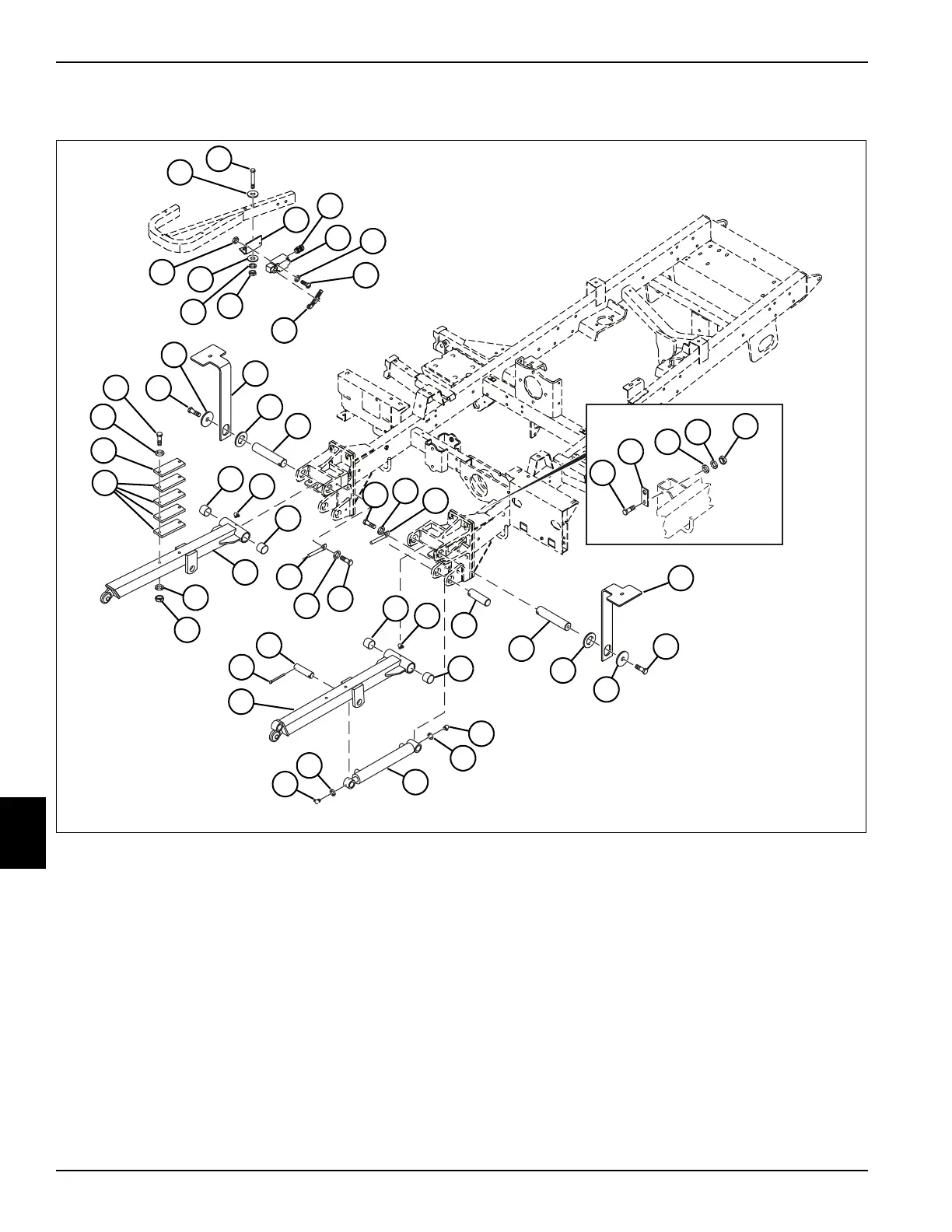

See Figure 8-12.
Figure 8-12
Disassembly Note
Inspect all parts for damage or wear. Replace as
necessary.
1 Flat Washer (4) 9 Lock Washer (3) 17 Washer (2) 24 Front Arm Lift Cylinder (2) 31 Shim (as required)
2 Screw (2) 10 Retaining Pin (4) 18 Spacer (2) 25 Left Front Lift Arm 32 Lift Arm Bumper (2)
3 Bracket 11 Screw 19 Lift Arm Pivot Shaft (2) 26 Cotter Pin (4) 33 Flat Washer (4)
4 Connector 12 Bracket 20 Lift Cylinder Pin (2) 27 Lift Cylinder Pin (2) 34 Screw (4)
5 Front Limit Switch 13 Flat Washer 21 Bushing (2) 28 Nut (4) 35 Actuator Arm
6 Lock Washer (2) 14 Nut 22 Grease Fitting (6) 29 Lock Washer (6) 36 Lock Nut (2)
7 Screw (2) 15 Fender Support (2) 23 Flat Washer (4) 30 Right Front Lift Arm 37 Lock Nut (2)
8 Screw (4) 16 Screw (2)
TN2134
8
9
10
11
12
13
9
14
2
1
1
28
36
3
4
5
6
7
35
16
17
15
18
19
31
33
34
32
21
22
21
28
10
9
8
20
19
18
17
16
15
27
26
21
22
21
22
23
24
23
22
37
25
29
30
