Textron JACOBSEN R-311 69166 User Manual

8-26 4203781 First Edition
CUTTING UNITS
8
Disassembly and Assembly
See Figure 8-18.
NOTE
Right wing deck lift arm shown; left is similar.

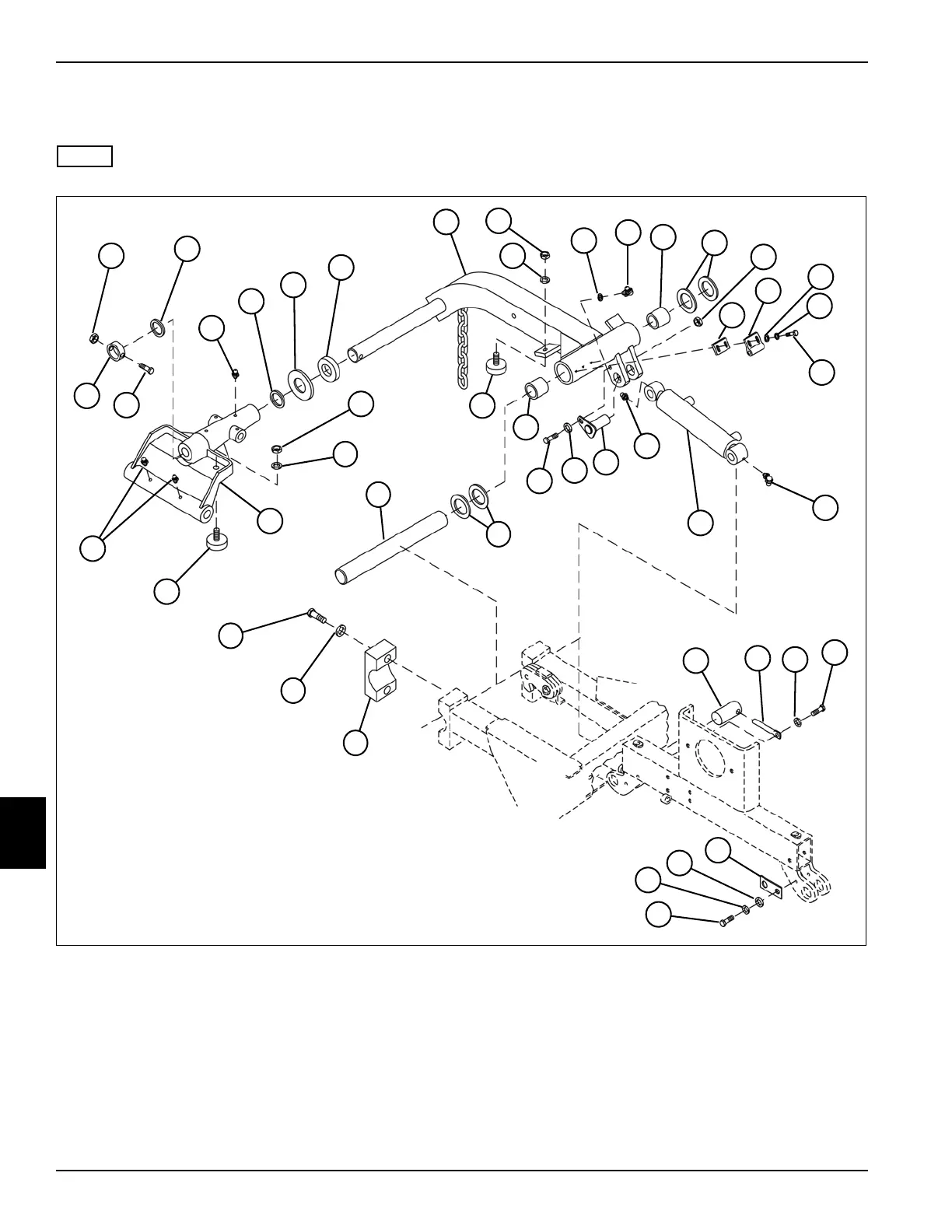

Figure 8-18
1 Spacer (2) 10 Washer (4) 19 Pin 28 Block
2 Washer 11 Lock Nut (3) 20 Flat Washer (2) 29 Lock Washer
3 Washer 12 Shim 21 Screw 30 Screw
4 Wing Deck Lift Arm 13 Magnet 22 Shaft 31 Rubber Stop (2)
5 Nut (2) 14 Flat Washer 23 Pin 32 Grease Fitting (3)
6 Lock Washer 15 Lock Washer 24 Pin 33 Screw
7 Flat Washer 16 Screw 25 Lock Washer (2) 34 Collar
8 Grease Fitting (2) 17 Lift Cylinder 26 Screw (2) 35 Flat Washer
9 Bushing (2) 18 Grease Fitting 27 Bracket 36 Pivot
TN1843
29
30
31
32
34
33
36
35
11
22
28
4
6
5
7
11
1
32
1
2
3
8
9
10
11
12
13
14
16
15
8
18
19
20
21
9
31
10
26
25
24
23
27
20
25
26
17
