ELECTRICAL
4203781 First Edition 4-39
4

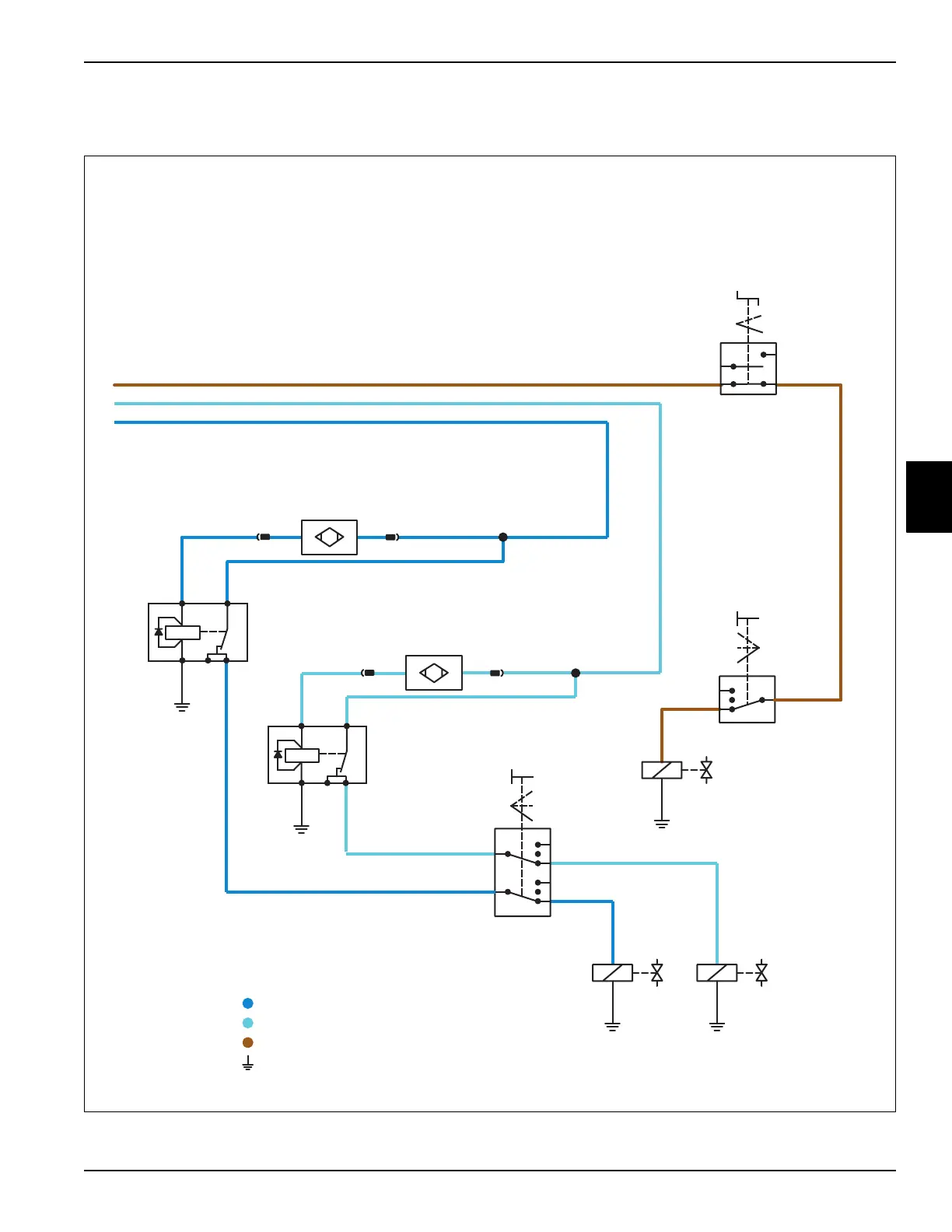

Mow Circuit Schematic
Continued
Figure 4-21
Front Mow Circuit
Right Mow Circuit
Left Mow Circuit
Ground Circuit
Blk Pnk
Pnk
Blk
Org
Y3
Right
Mow
Solenoid
Blk
Lt Grn
Y4
Left
Mow
Solenoid
87
30
8785
86
K8
Right
Wing
Relay
K9
Left
Wing
Relay
Brn/Red
Brn/Red
Lt Grn
Org
On
Off
Off
S10
Wing
Mow
Enable
Switch
Red/Blu
Red/Wht
Red/Yel
Red/Lt Blu
Red/Yel
Red/Wht
Red/Lt Blu
Red/Yel
Red/Wht Red/Wht
Blk Pnk
87
30
8785
86
Wht/Blk Red/Blu
Red/Wht
Red/Lt Blu
S7
Left
Wing
Proximity
Switch
Pnk
Pnk
Blk
Wht
Y2
Front
Mow
Solenoid
Wht
On
Off
Off
S9
Front
Mow
Enable
Switch
S6
Right
Wing
Proximity
Switch
N.O.
Blk2 WhtWht/Blk 1
N.O.
Blk2 Wht 1
On
Off
S8
Front
Limit
Switch
TN1807
