ELECTRICAL
673831-Rev A 4-69
4
Lift Proximity Switch
Removal and Installation

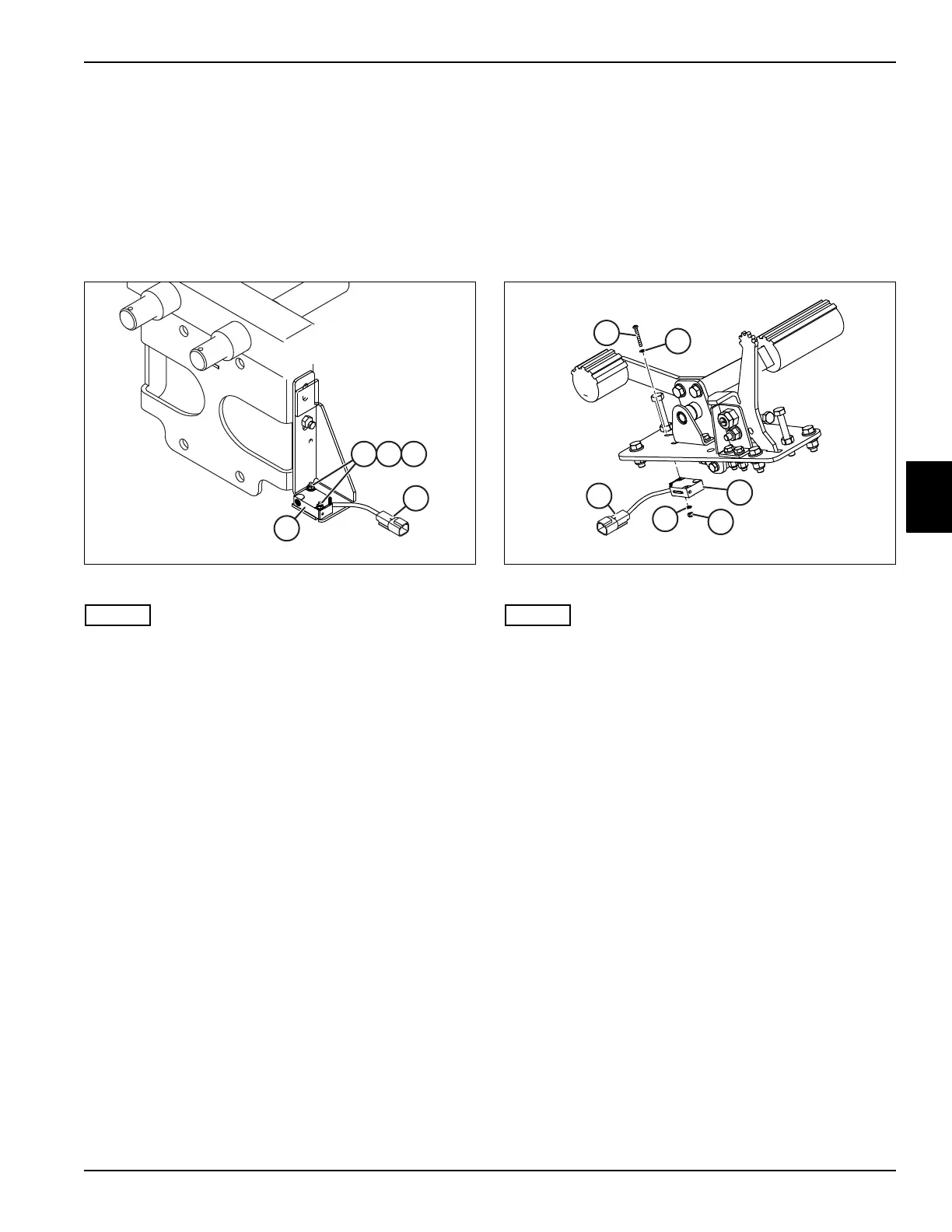

See Figure 4-51.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.
Figure 4-51
NOTES
• Right and center lift arms and cylinders not shown for
clarity.
• Label all wires before disconnecting to ensure correct
installation.
3. Disconnect wire connector (1).
4. Remove screws (2), flat washers (3), nuts (4) and lift
proximity switch (5).
Installation Notes
Install the lift proximity switch by reversing the order of
removal.
Forward Proximity Switch
Removal and Installation
See Figure 4-52.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.
Figure 4-52
NOTES
• Operator platform not shown for clarity.
• Label all wires before disconnecting to ensure correct
installation.
3. Disconnect wire connector (1).
4. Remove screws (2), flat washers (3), nuts (4) and
forward proximity switch (5).
Installation Notes
Install the forward proximity switch by reversing the order
of removal.
MAR0055
1
2 3 4
5
MAR0056
1
2
3
3
4
5
