Textron Jacobsen SLF530 User Manual

ENGINE
673831-Rev A 3-3
3
Component Location
Kubota D1105-E4B
See Figures 3-1 and 3-2.

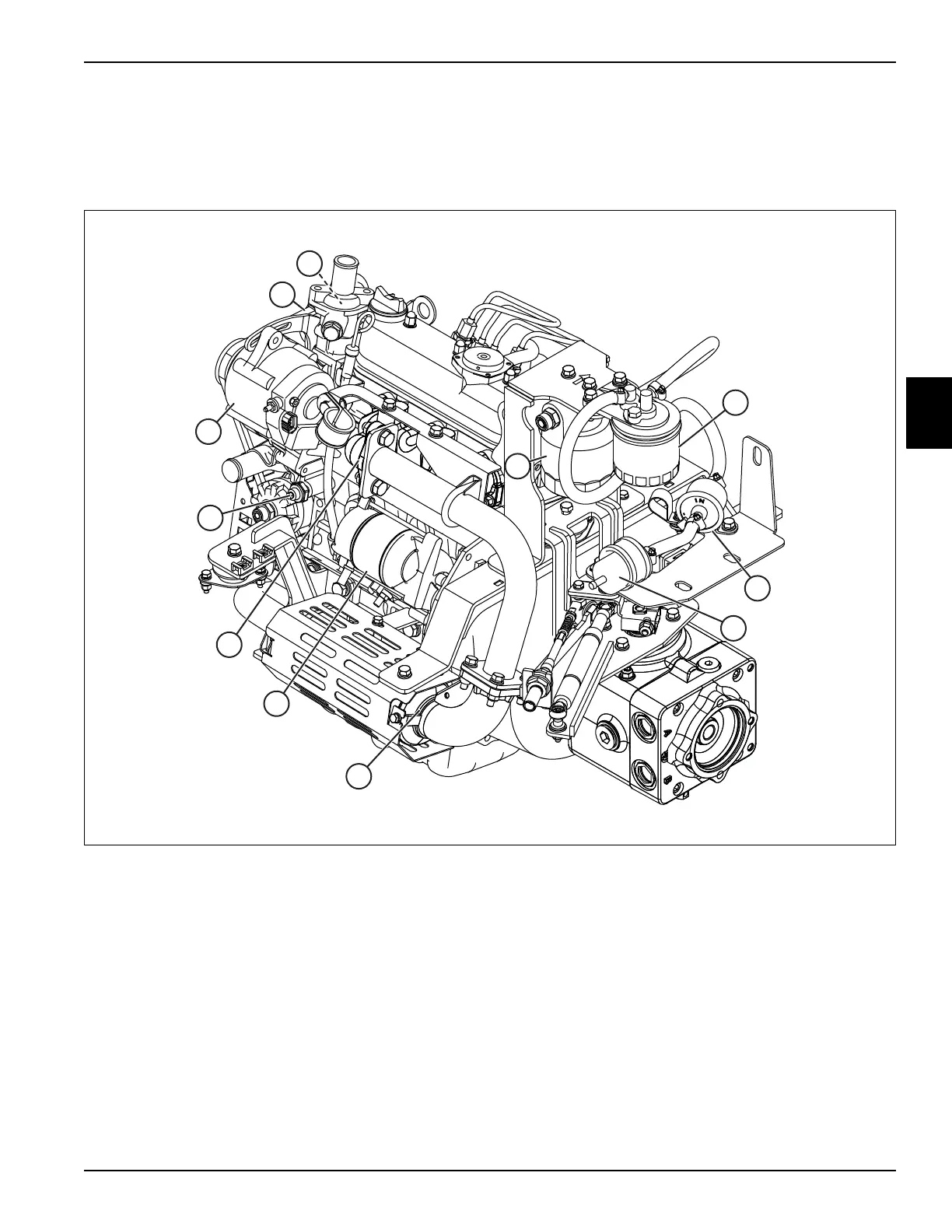

Figure 3-1: Component Location—Engine Front
1 Muffler 5 Alternator 9 Fuel Pump
2 Exhaust Manifold 6 Fan Belt 10 Fuel Filter
3 Starter Motor 7 Thermostat 11 Engine Remote Oil Filter
4 Engine Oil Pressure Switch 8 Fuel Pre-Filter
MAR0240
1
2
3
4
5
6
7
8
9
10
11
