Textron Jacobsen SLF530 User Manual

HYDRAULICS
673831-Rev A 6-7
6
Component Location
See Figure 6-1.

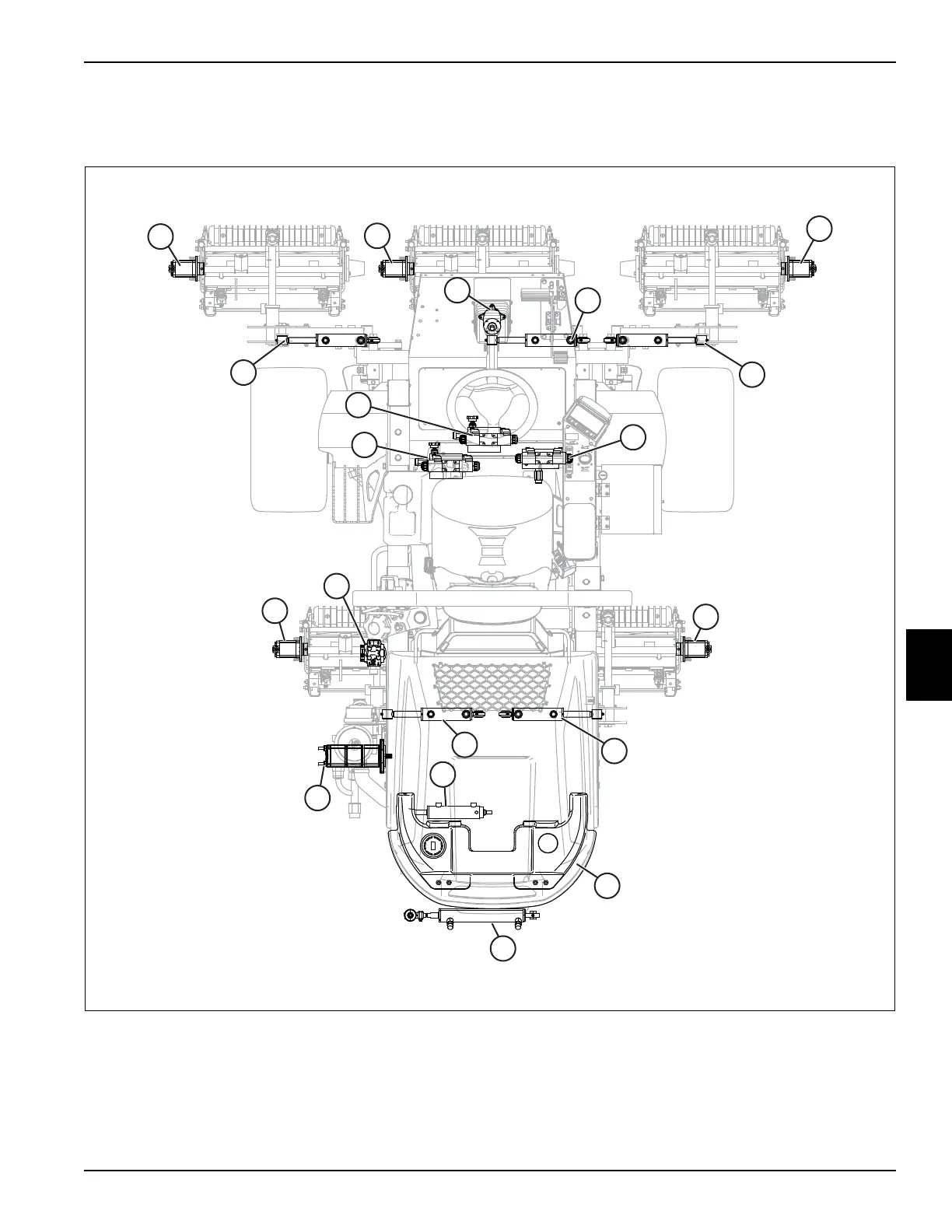

Figure 6-1: Component Location
1 Hydraulic Tank
2Gear Pump
3 Front Reel Valve
4 Rear Reel Valve
5 Lift Valve
6 Steering Valve
7 Steering Cylinder (3WD Option)
8 Steering Cylinder (4WD Option)
9 Front Reel Motor (3)
10 Front Lift Cylinder (3)
11 Rear Lift Cylinder (2)
12 Reel Motor (2)
13 Charge Filter
MAR0196
1
2
3
4
5
6
7
8
9
10
9
10
9
10
11
12
13
11
12
