Textron Jacobsen SLF530 User Manual

STEERING
673831-Rev A 7-3
7
Component Location

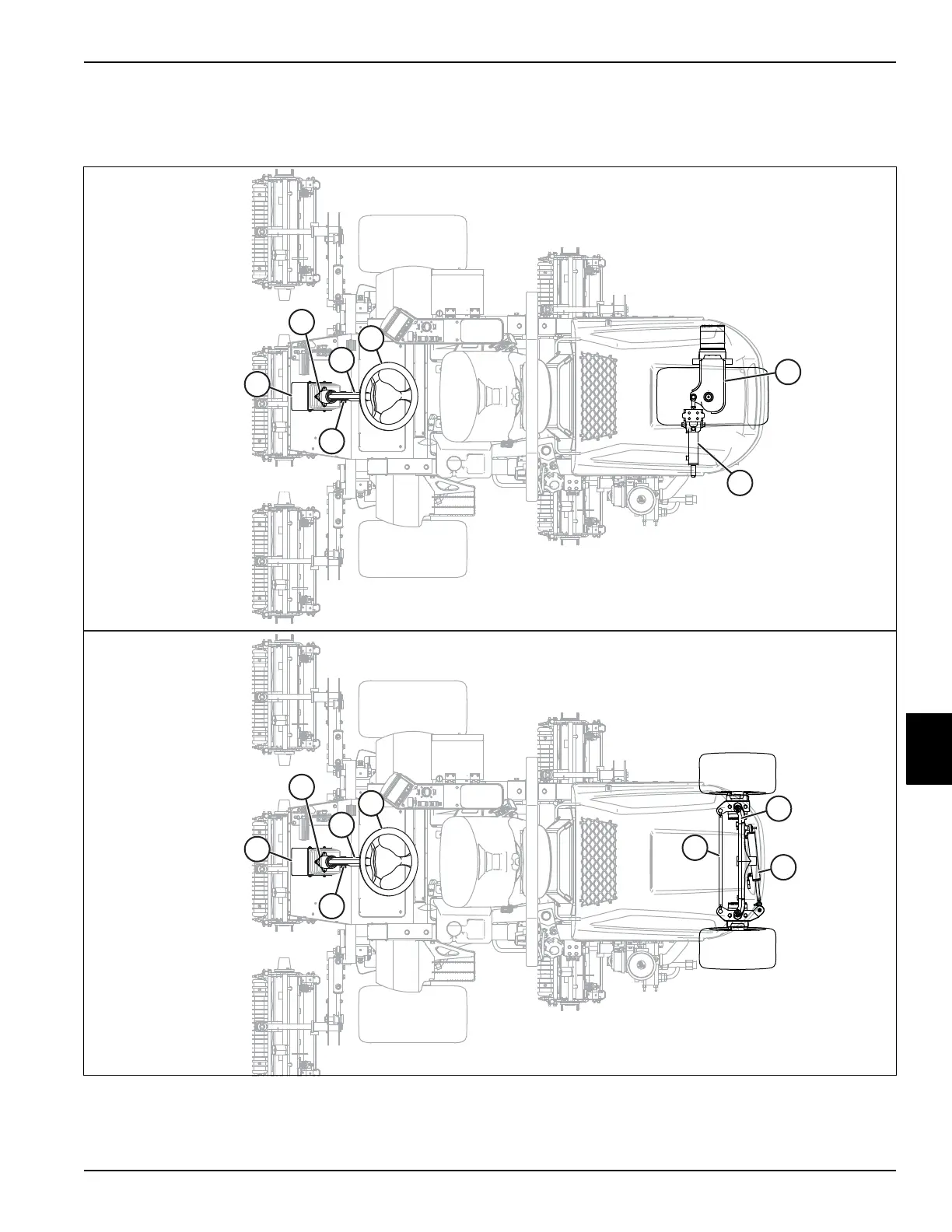

See Figure 7-1.
Figure 7-1
1 Tie Rod (4WD Option Only) 4 Tilt Lever 7 Steering Unit
2 Steering Axle/Steering Yoke 5 Steering Wheel 8 Steering Column
3 Steering Cylinder 6 Steering Tower Cover
1
2
3
4
5
6
7
8
4
5
6
7
8
3WD Option
4WD Option
2
3
MAR0221
