HYDROSTATIC POWER TRAIN
673831-Rev A 5-23
5
Forward Switch Adjustment
See Figure 5-13.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.

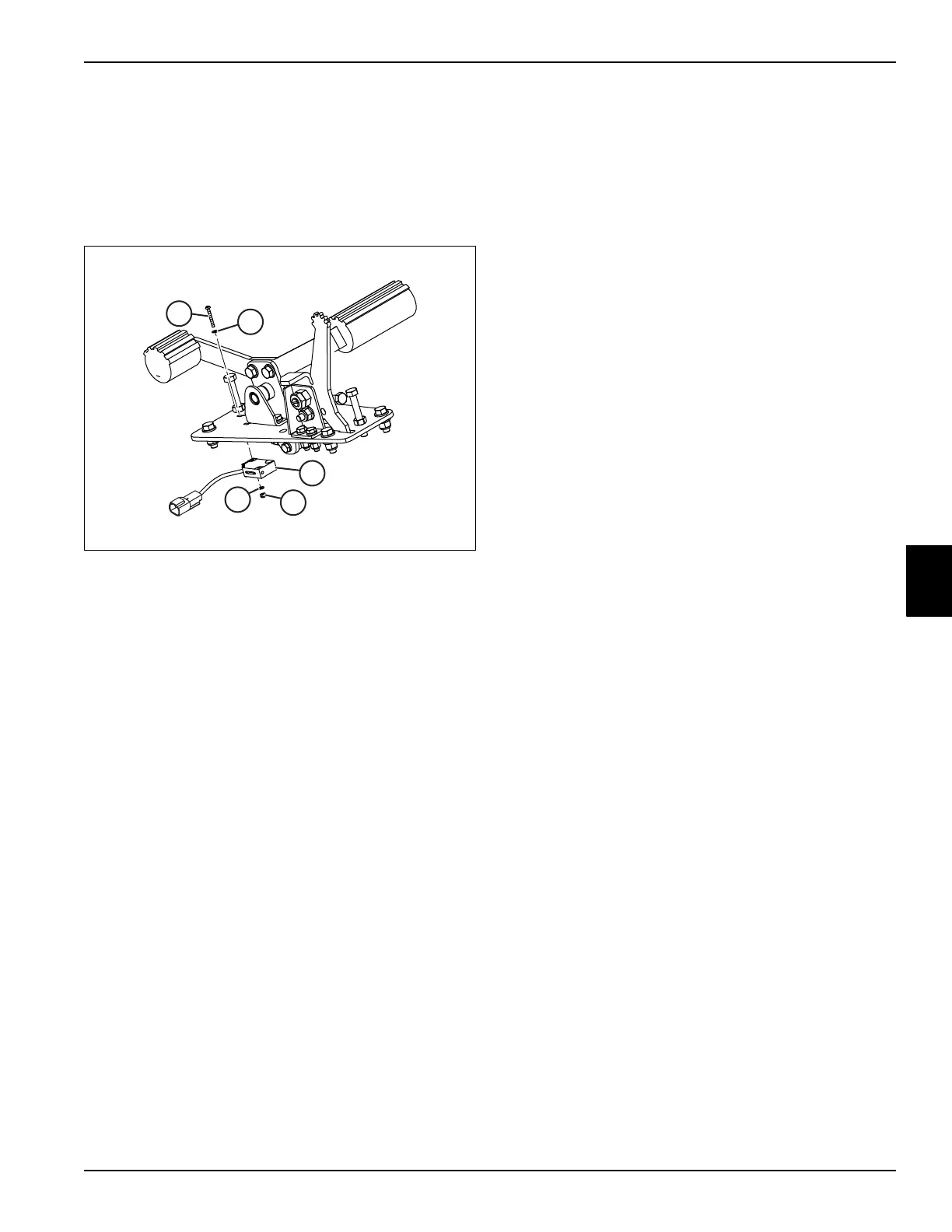

Figure 5-13
The mower has a proximity switch (1) located on the
traction pedal, which signals the controller when the
traction pedal is moved in the forward position. The
proximity switch has a red LED to signal when the switch
contacts are closed.
To adjust the forward switch:
1. Turn the ignition switch to the RUN position to provide
power to the forward switch (1). Do not start the
engine.
2. Loosen the switch hardware (2 through 4). Adjust the
switch (1) until the switch contacts are open with the
traction pedal in the Neutral position and close as the
pedal is moved in the forward direction. The red LED
on the switch will turn on when the switch contacts
close. Tighten switch hardware.
