ELECTRICAL
673831-Rev A 4-73
4
Lift and Lower Solenoid Coils
This procedure applies to the following solenoids:
• Lift Solenoid (1)
• Lower Solenoid (2)
The lift and lower solenoid coils are located on the lift
valve (3) under the operator platform.
Removal and Installation

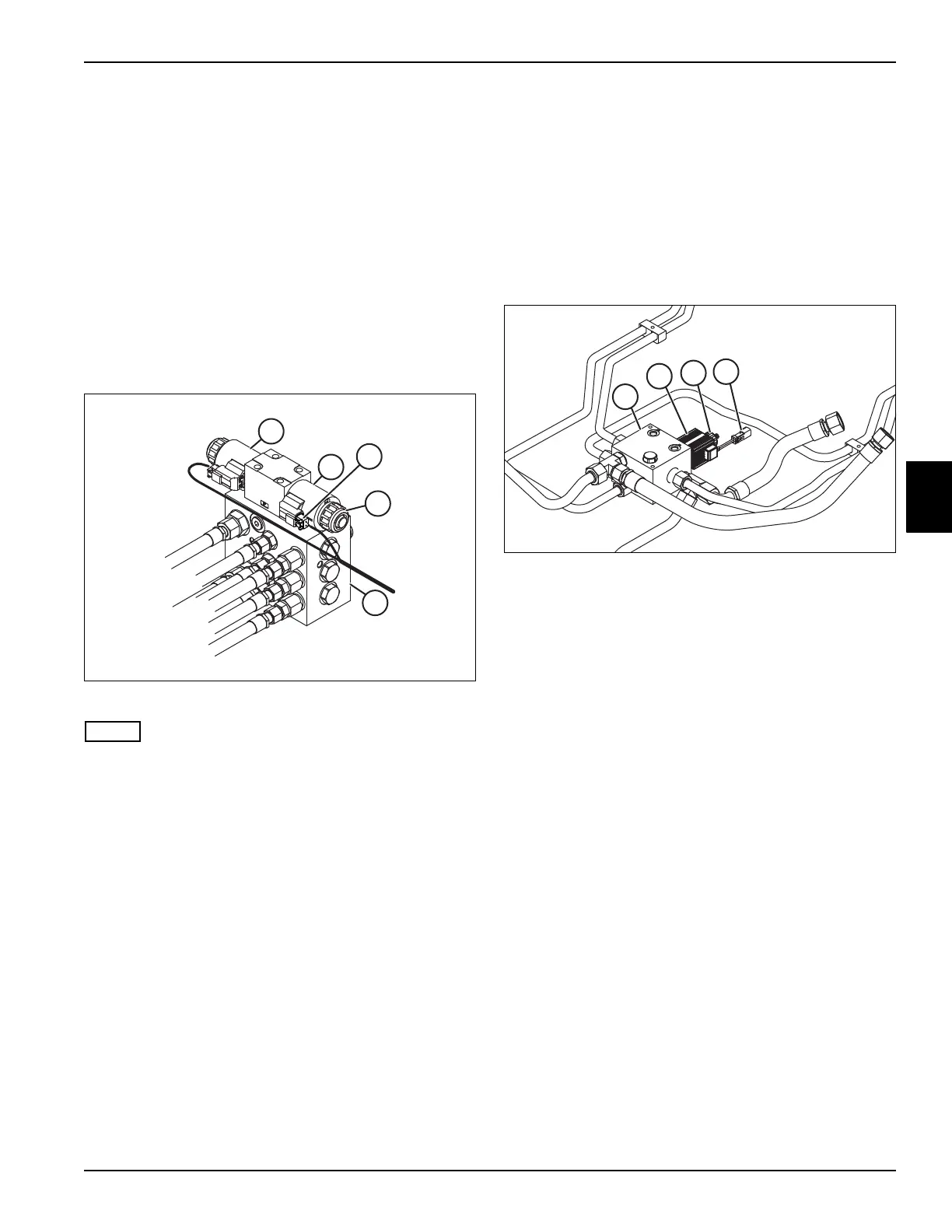

See Figure 4-59.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.
Figure 4-59
NOTE
Label connectors before disconnecting to ensure correct
installation.
3. Disconnect connector (4) from the solenoid coil.
4. Remove nut (5) and solenoid coil from the valve.
Installation Notes
• Clean solenoid of any debris or surface rust and
apply dielectric grease (Jacobsen PN 365422) to
solenoid coil before installation.
• Install the solenoid by reversing the order of removal.
• Tighten nut (5) to 10 lb-ft (13.6 N·m).
4WD Solenoid Coil
Removal and Installation
See Figure 4-60.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.
3. Locate the 4WD valve (2) under the seat.
Figure 4-60
Label connectors before disconnecting to ensure correct
installation.
4. Disconnect 4WD solenoid coil connector (4).
5. Remove nut (3), and remove the solenoid (1) from
the valve (2).
Installation Notes
• Clean solenoid of any debris or surface rust and
apply dielectric grease (Jacobsen PN 365422) to
solenoid coil before installation.
• Install the solenoid by reversing the order of removal.
• Tighten nut (3) to 3 lb-ft (4.1 N·m).
MAR0063
1
2
3
4
5
1
2
3
4
MAR0064
