Textron Jacobsen SLF530 - Page 123

ELECTRICAL
673831-Rev A 4-79
4

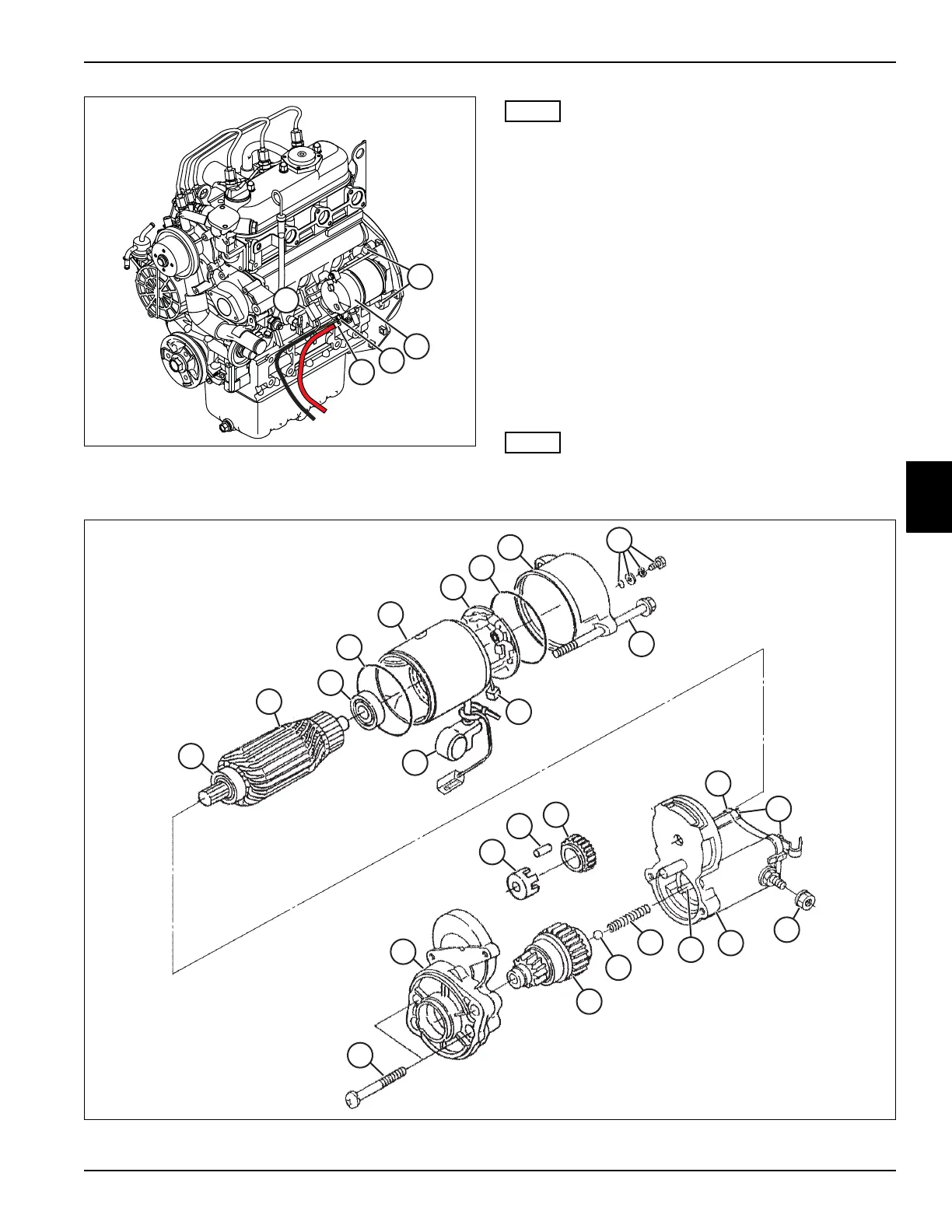

Figure 4-70
NOTE
Label all wires before disconnecting to ensure correct
installation.
4. Disconnect starter cable (3) from the starter motor
(1).
5. Disconnect wire connectors (4 and 5) from the starter
motor (1).
6. Support the starter motor (1).
7. Remove screws (2).
8. Remove starter motor.
Installation Note
Install the starter motor by reversing the order of removal.
Starter Disassembly and Assembly
NOTE
If the starter screws or nuts have rust or other corrosion,
spray hardware with a rust penetrating fluid.
Figure 4-71: Diesel Starter Disassembly
1
2
3
4
5
MAR0043
MAR0222
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
24
23
