HYDROSTATIC POWER TRAIN
673831-Rev A 5-11
5

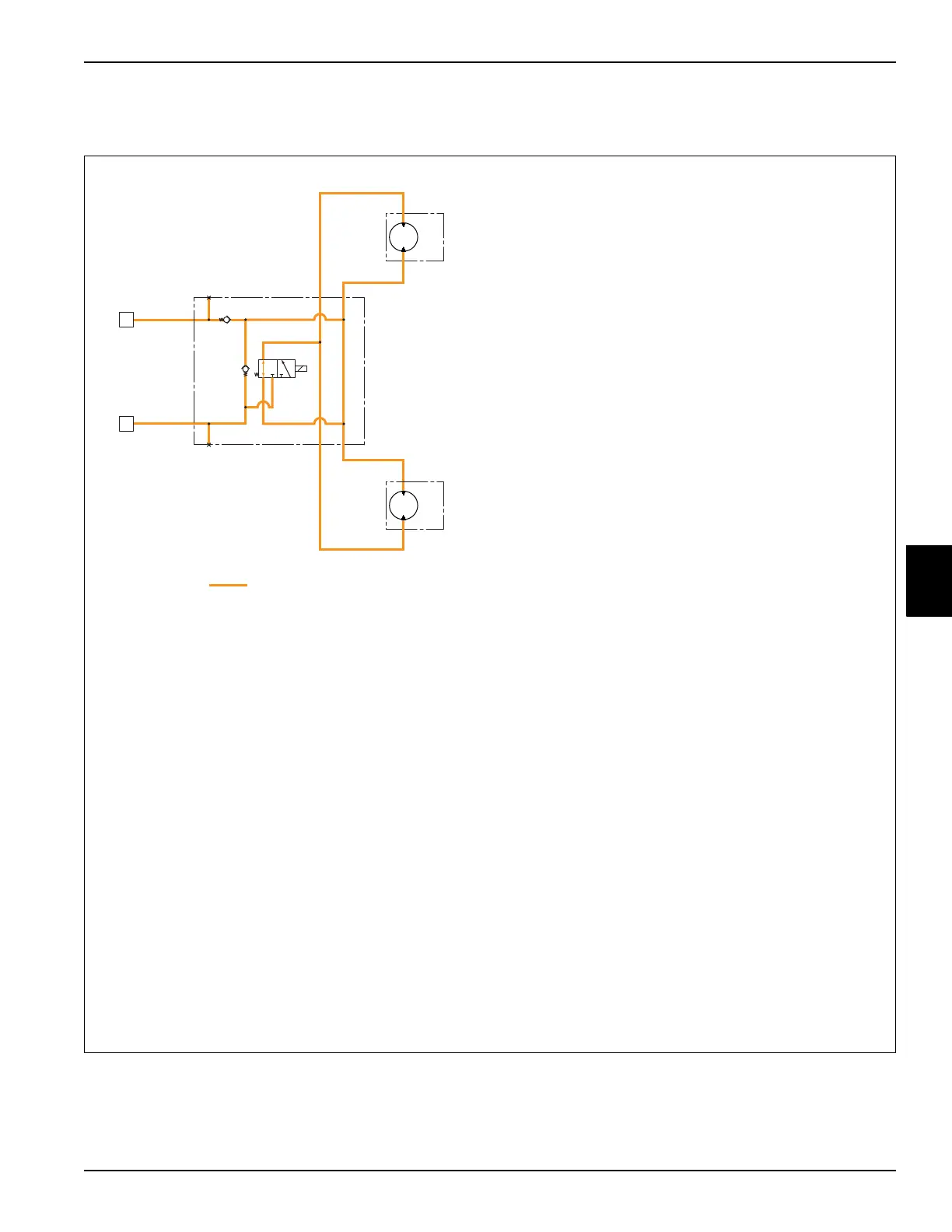

Traction Circuit—2WD/4WD Neutral
Schematic Continued
Figure 5-4
4 Charge pressure oil from upper front motor
tube
5 Charge pressure oil to lower front motor
tube
4WD
Valve
Left Rear
Wheel Motor
Right Rear
Wheel Motor
A
B
1B 2B
1A
B1
A1 2A
14.3 ci
B
A
14.3 ci
B
A
Charge Pressure Oil
4
5
