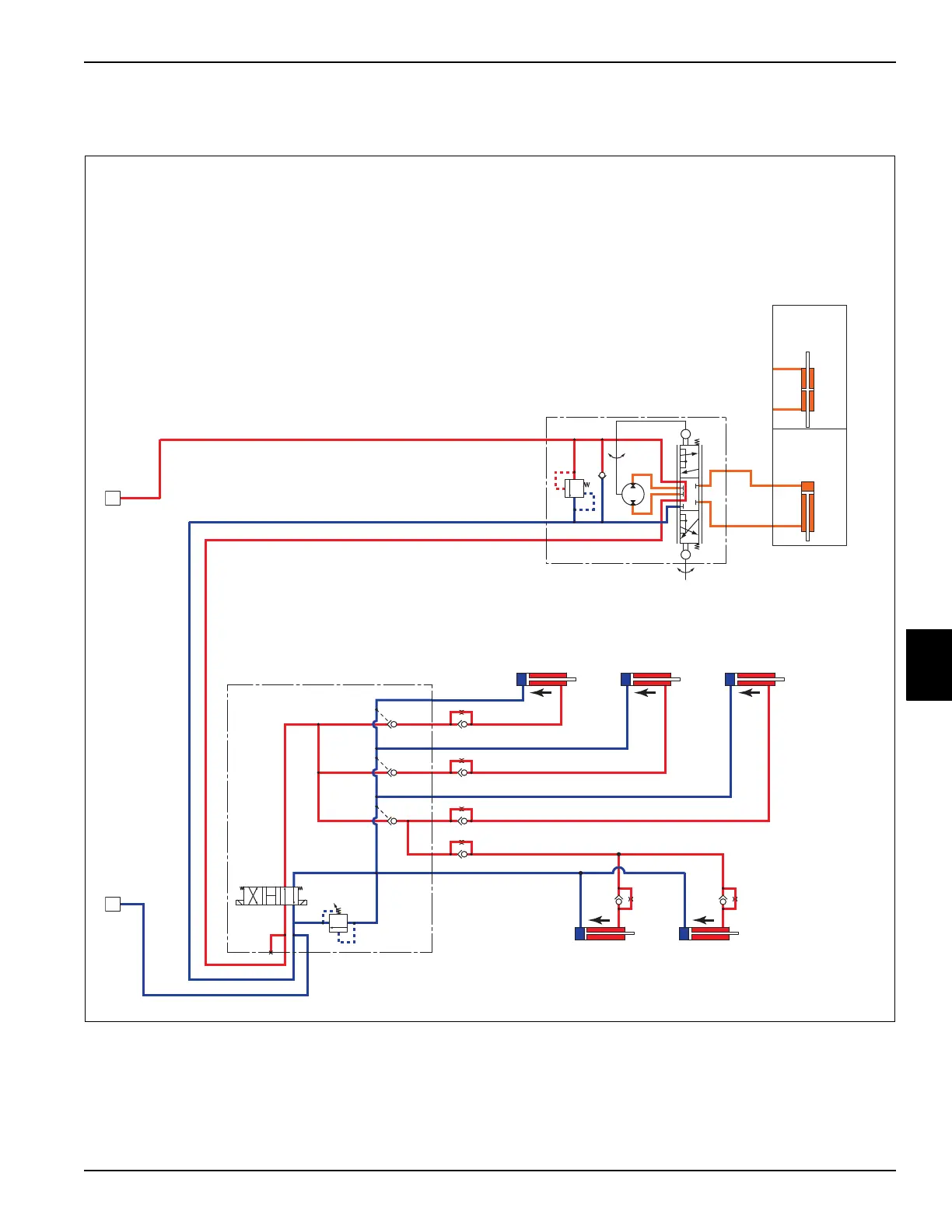

Lift Circuit Hydraulic Schematic
Continued
Figure 6-7
1 Operating pressure oil from gear pump
section 1
2 Return oil to hydraulic tank
MAR0155
450 psi
.026
Lift
Valve
Steering Valve
2100 psi
One Way
Orifice
One Way
Orifice
One Way
Orifice
One Way
Orifice
.032
.032
.032
Left Rear
Cylinder
Right Rear
Cylinder
.026 .026
One Way
Orifice
One Way
Orifice
1
2
GP TT
LT
L
R
P
T
E
RT
Left Front
Cylinder
Center
Cylinder
Right Front
Cylinder
4WD Option
Steering
Cylinder
3WD Option
Steering
Cylinder
3
2
1
4
6
9
10
8
SOL4 SOL5
