HYDRAULICS
6
Disassembly, Inspection, and Assembly
See Figure 6-64.
NOTE
The machine has five lift cylinders. All of the lift cylinders
are the same.

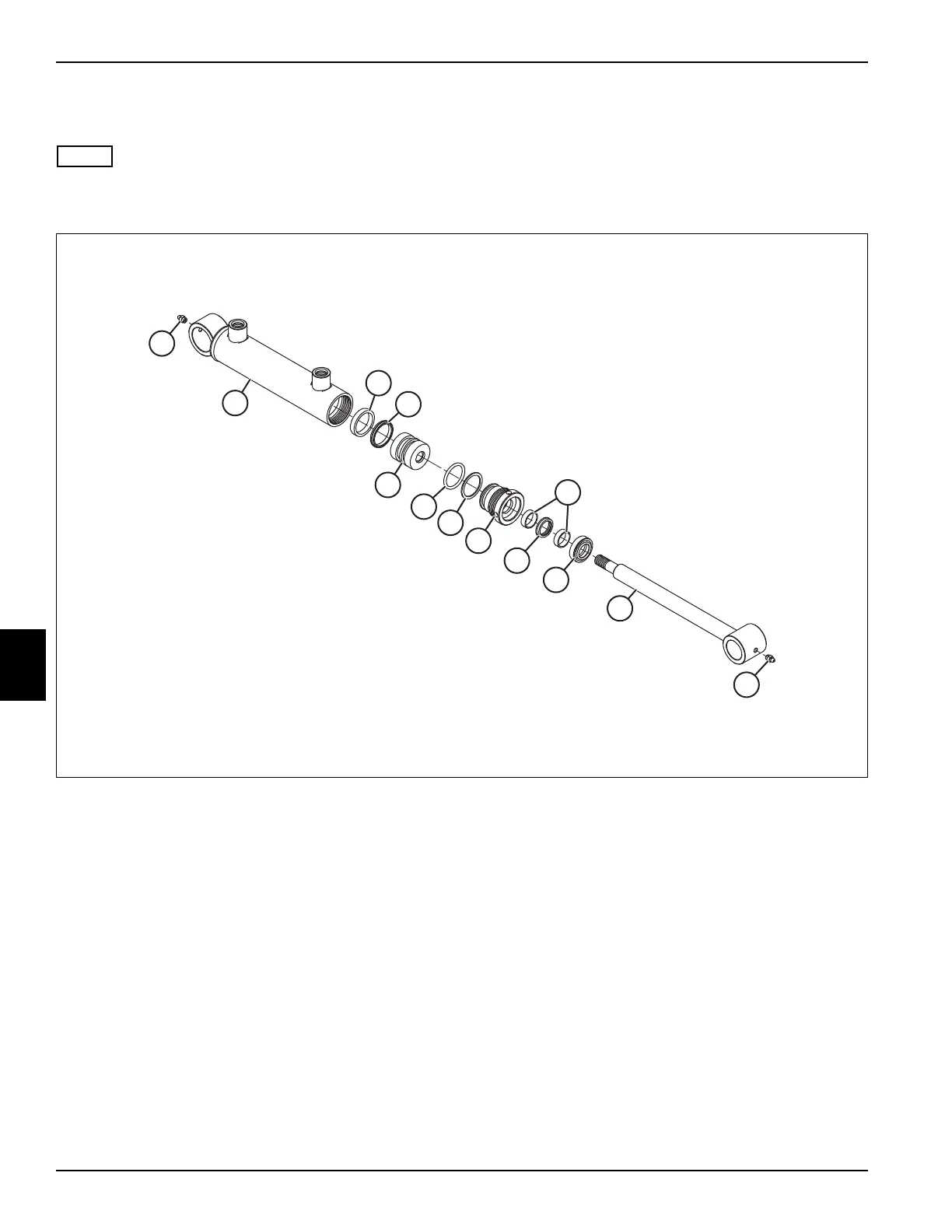

Figure 6-64
1 Cylinder Barrel 4 Piston Wear Ring 7 Gland Back-Up Ring 10 Wiper Seal
2 Piston 5 Cylinder Gland 8 Gland Wear Ring (2) 11 Rod, Cylinder
3 Piston Seal 6 Gland O-Ring 9 Gland Seal 12 Grease Fitting (2)
MAR0193
1
2
3
4
5
6
7
8
9
10
11
12
12
